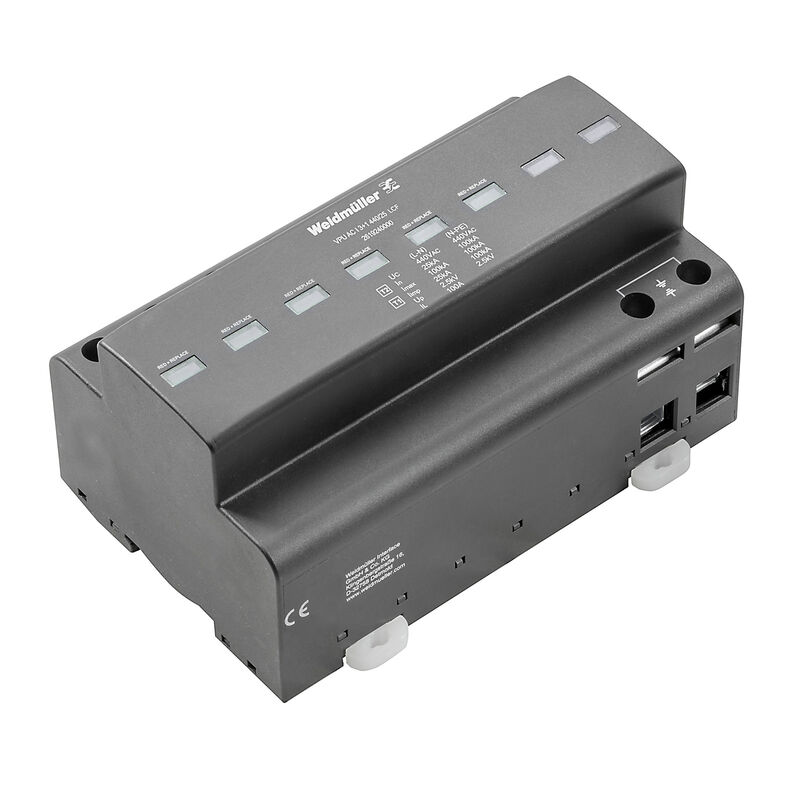

VPU AC I 3+1 440/25 LCF
VPU AC I 3+1 440/25 LCF
Electric symbol

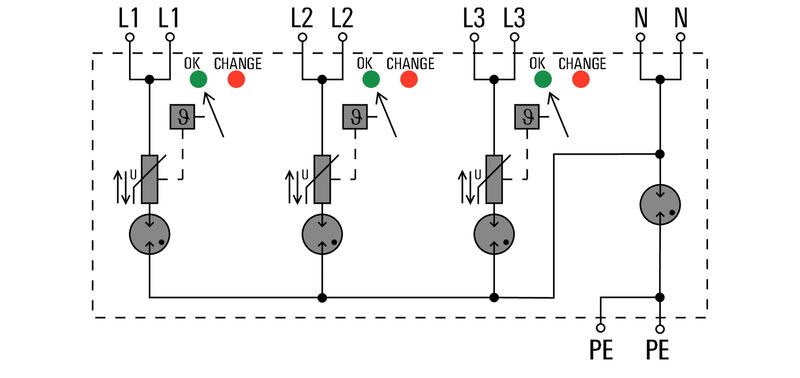

Schematic circuit diagram

VPU AC I 3+1 440/25 LCF

Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, IT without N

Tuotteen tunnus 2619240000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 2 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Guarantee Important note Product images Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Wersja
Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, IT without N
Art.nr.
2619240000
Тип
VPU AC I 3+1 440/25 LCF
GTIN (EAN)
4050118634662
Qty.
1 items

Dimensions and weights

Depth
93 mm
Depth (inches)
3,661 inch
Высота
90 mm
Height (inches)
3,543 inch
Szerokość
144 mm
Width (inches)
5,669 inch
Net weight
1 137 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Probability of failure

MTBF
15 a

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
black
Design
Installation housing; 8 TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 2000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 po zamontowaniu
Segment
Power distribution
Suitable for
Count-in installation (leakage current free)
UL 94 flammability rating
V-0
Version
Surge protection

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Ableitstrom In (8/20µs) N-PE
100 kA
Corrente nominale di cortocircuito ISCCR
50 kA
Corriente de fuga In (8/20µs) conductor-PE
25 kA
Courant de décharge Imax (8/20 µs) fil-PE
100 kA
Discharge current Imax (8/20µs) N-PE
100 kA
Energetische Koordination (≤10 m)
Type I
Type II
Type III
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤250 A gG
Integrated back-up fuse
No
Leakage current at Un
5 µA
Lightning test current Iimp (10/350 µs) (L-PE)
25 kA
Lightning test current, Iimp (10/350 µs) (N-PE)
100 kA
Low voltage network
TN-C-S
TN-S
TT
IT with N
IT without N
Max. continuous voltage, Uc (AC)
440 V
Max. continuous voltage, Uc (N-PE)
440 V
Number of poles
4
Protection level Up at IN (N-PE)
≤ 2,5 кВ
Rated load current IL
100 A
Rated voltage (AC)
400 V
Requirements category acc. to IEC 61643-11
Type I
Type II
Requirements class, acc. to EN 61643-11
T1
T2
Response time / fallback time
≤ 25 ns
Signalling contact
No
Standards
IEC 61643-11
EN 61643-11
Suitable for
Count-in installation (leakage current free)
Síťové napětí
400 V / 690 V
Temporary surge voltage (over-voltage) - TOV
762 V
Voltage type
AC
Védettségi szint, Up I áramnálN (L/N-PE)
≤ 2.5 kV
속류 소거 용량 Ifi
Not available due for technical reasons

Connection data

Stripping length
13 mm
Wire connection method
Screw connection
Type of connection
Screw connection
Stripping length, rated connection
13 mm
Tightening torque, min.
2 Nm
Tightening torque, max.
3 Nm
Clamping range, rated connection
16 mm²
Clamping range, min.
6 mm²
Clamping range, max.
35 mm²
Wire cross-section, solid, min.
6 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, min.
6 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
35 mm²
Connection cross-section, stranded, min.
6 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
AC

General data

Number of poles
4
Protection degree
IP20 in installed state
Colour
black

Guarantee

Time interval
5 years

Important note

Product information

Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018). For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V
Notes
Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018).

Product images

Classifications

ETIM 8.0
EC001457
ETIM 9.0
EC001457
ETIM 10.0
EC001457
ECLASS 14.0
27-17-12-04
ECLASS 15.0
27-17-12-04
