Egenskaber

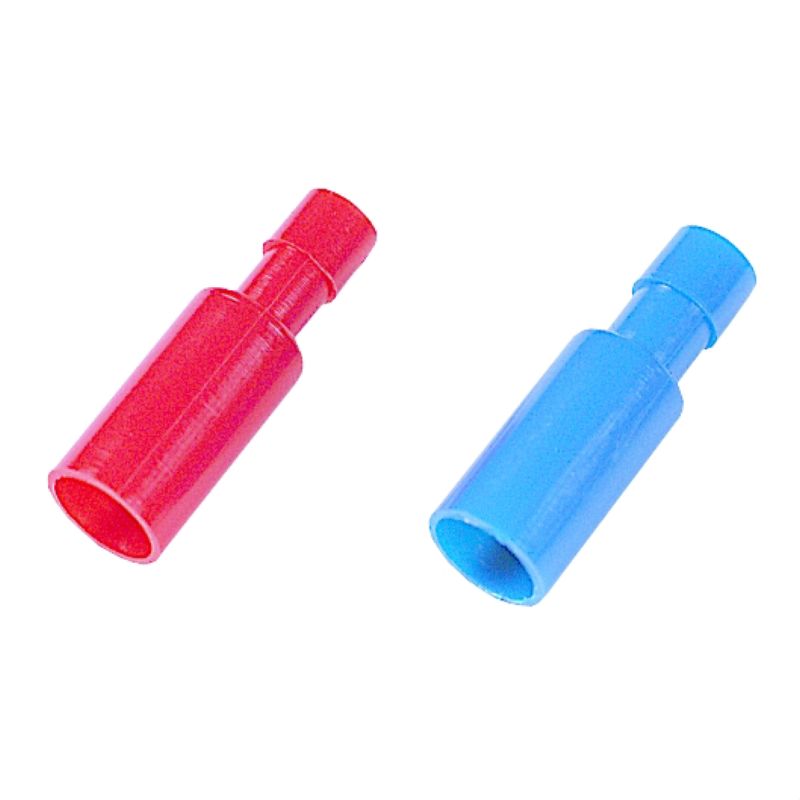

| Version | cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm² |
| Order No. | 1492070000 |
| Type | VRSTI/0,5-1,0 |
| GTIN (EAN) | 4050118301953 |
| Qty. | 100 Styk |
| Net weight | 1,3 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3 |
| Conductor cross-section | 1 mm² |
| Conductor cross-section, max. | 1 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Identification colour | red |
| Insulation | Fully insulated |
| Length 1 (I1) | 27 mm |
| Material/plastic | PVC |
| Ø pin/plug | 4 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001059 |
| ETIM 7.0 | EC001059 |
| ETIM 8.0 | EC001059 |
| ETIM 9.0 | EC001059 |
| ECLASS 9.0 | 27-40-02-12 |
| ECLASS 9.1 | 27-40-02-12 |
| ECLASS 10.0 | 27-40-02-12 |
| ECLASS 11.0 | 27-40-02-12 |
| ECLASS 12.0 | 27-40-02-12 |
| ECLASS 13.0 | 27-40-02-12 |
| ECLASS 14.0 | 27-40-02-12 |
| ROHS | Conform |
