Egenskaber

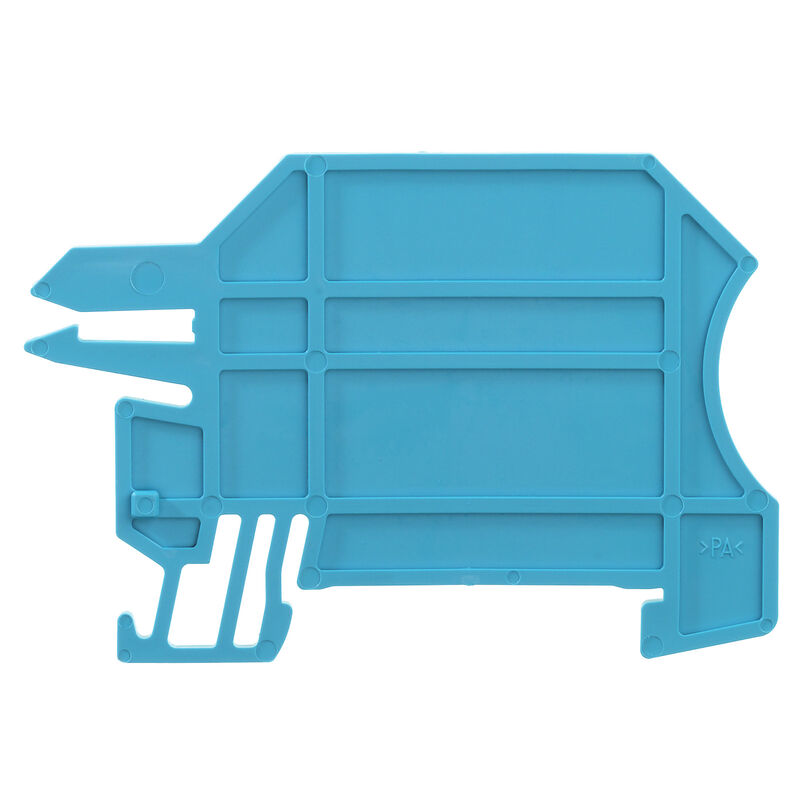

| Version | End and partition plate for terminals, blue, Height: 60 mm, Width: 2 mm, V-0, Wemid |
| Order No. | 1050280000 |
| Type | WHP 2.5-35N/10X3 BL |
| GTIN (EAN) | 4008190044640 |
| Qty. | 20 Styk |
| Depth | 47 mm |
| Depth (inches) | 1,85 inch |
| Height | 60 mm |
| Height (inches) | 2,362 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 3,876 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Rail | TS 35 |
| Installation advice | Feed-through (bushing) |
| Snap-on | Yes |
| TS 35 offset | 32 mm |
| Installation advice | Feed-through (bushing) |
| Rail | TS 35 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59960) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1050280000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1050280000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-33 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1019000000Pakningsenhed:50 Styk
Neutral conductor modular terminal, Screw connection, 16, 400 V, 76 A, TS 35, blue
-
Produkt ID:9512210000Pakningsenhed:10 Styk
Neutral conductor modular terminal, Screw connection, 70, 400 V, 140 A, TS 35, blue
-
Produkt ID:1010880000Pakningsenhed:50 Styk
Neutral conductor modular terminal, Screw connection, 6, 400 V, 41 A, TS 35, blue
-
Produkt ID:1010780000Pakningsenhed:100 Styk
Test-disconnect terminal, Screw connection, blue, 4 mm², 32 A, 400 V, Number of connections: 1, Number of levels: 1, TS 35, V-0, Wemid
-
Produkt ID:1718550000Pakningsenhed:20 Styk
Neutral conductor modular terminal, Screw connection, 35, 400 V, 125 A, TS 35, blue
-
Produkt ID:1010900000Pakningsenhed:50 Styk
Neutral conductor modular terminal, Screw connection, 10, 400 V, 57 A, TS 35, dark beige
-
Produkt ID:1010980000Pakningsenhed:50 Styk
Neutral conductor modular terminal, Screw connection, 10, 400 V, 57 A, TS 35, blue
-
Produkt ID:1010680000Pakningsenhed:100 Styk
Neutral conductor modular terminal, Screw connection, 2.5, 400 V, 24 A, TS 35, blue
