BLL 5.08/03/90FI 3.2SN OR BX

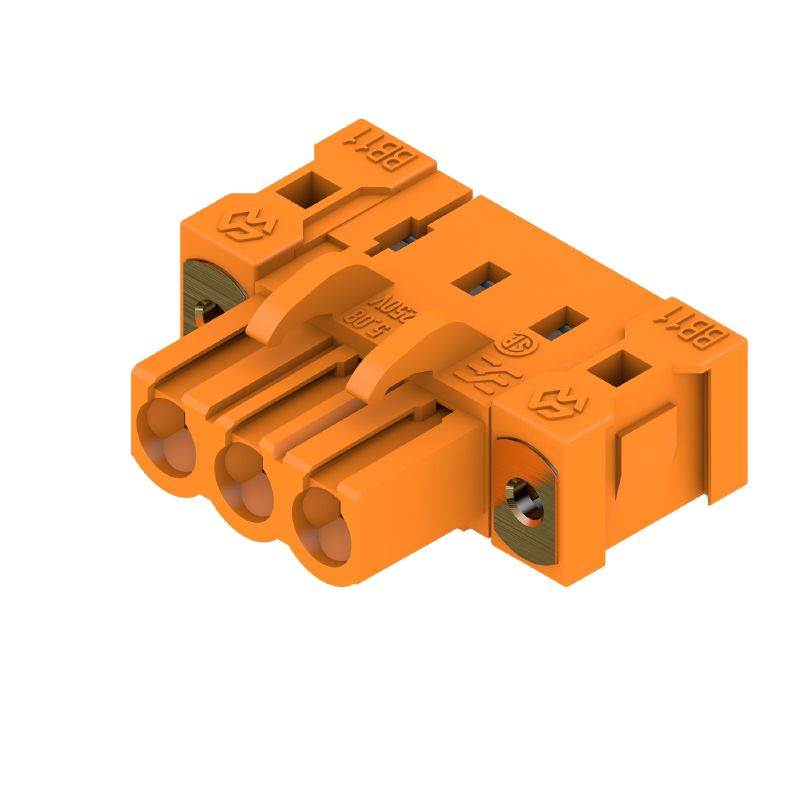

Produktbild
BLL 5.08/03/90FI 3.2SN OR BX
Produktbild
BLL 5.08/03/90FI 3.2SN OR BX
Maßbild
BLL 5.08/03/90FI 3.2SN OR BX
Anwendungsbeispiel

BLL 5.08/03/90FI 3.2SN OR BX

Conector para placa c.i., Conector hembra, Brida invertida, Conexión por soldadura THT, 5.08 mm, Número de polos: 3, 90°, Longitud del terminal de soldadura (l): 3.2 mm, estañado, naranja, Caja

Art.-Nr. 1843760000
Datenblatt herunterladen Engineering Support Produkt Downloads
Zubehör 2 Gegenstücke 29 Verwandte Artikel 15
Approvals Datos generales para pedido Méretek és tömegek Conformidad medioambiental del producto Especificaciones del sistema Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Indicación importante Clasificaciones

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Site Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

Datos generales para pedido

Version
Conector para placa c.i., Conector hembra, Brida invertida, Conexión por soldadura THT, 5.08 mm, Número de polos: 3, 90°, Longitud del terminal de soldadura (l): 3.2 mm, estañado, naranja, Caja
Order No.
1843760000
Type
BLL 5.08/03/90FI 3.2SN OR BX
GTIN (EAN)
4032248355518
Qty.
72 Pièce
Indices de produit
IEC: 400 V / 23 A
UL: 300 V / 15 A
Emballage
Boîte

Méretek és tömegek

Net weight
4,806 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme con exención
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0b9f9fbb-9843-4953-ae55-e10a8ae27fe7

Especificaciones del sistema

Product family
OMNIMATE Signal - Serie BL/SL 5.08
Type of connection
Conexión de tarjetas
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Outgoing elbow
90°
Nombre de pôles
3
Number of solder pins per pole
2
Solder pin length (l)
3,2 mm
Solder pin length tolerance
+0,1 / -0,3 mm
Solder pin dimensions
0,4 x 1,00 mm
Solder eyelet hole diameter (D)
1,3 mm
Tolleranza diametro di equipaggiamento (D)
+ 0,1 mm
L1 in mm
10,16 mm
L1 in pollici
0,4 "
quantità di file
1
Numero di serie di poli
1
Protezione da contatto accidentale DIN VDE 57 106
Sicurezza per il dorso della mano
Protezione da contatto accidentale secondo DIN VDE 0470
IP 20 innestato
Grado di protezione
IP20
Resistenza di passaggio
≤5 mΩ
Codificabile
Sì
Cicli di inserimento
25
Forza di innesto/polo, max.
5 N
Forza d'estrazione/polo, max.
5 N

Material data

Insulating material
PBT GF
Colour
naranja
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
Insulation resistance
108 Ω
Classe d'inflammabilité selon UL 94
V-0
Contact material
Rézötvözet
Contact surface
ónozott
Struttura a strati del collegamento a saldare
4...6 µm Sn stagnato a caldo
Layer structure of plug contact
4...6 µm Sn stagnato a caldo
Temperatura di magazzinaggio, min.
-40 °C
보관 온도, 최대
70 °C
작동 온도, 최소
-50 °C
작동 온도, 최대
100 °C
온도 범위, 설치, 최소
-25 °C
온도 범위, 설치, 최대
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
23 A
Rated current, max. number of poles (Tu=20°C)
16 A
Rated current, min. number of poles (Tu=40°C)
20 A
Rated current, max. number of poles (Tu=40°C)
14 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 V
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s mit 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
15 A
Rated current (Use group D / CSA)
10 A
Reference to approval values
사양은 최대값, 상세정보 - 승인서 참조

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
15 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
사양은 최대값, 상세정보 - 승인서 참조

Packing

Packaging
Caja
VPE length
348 mm
VPE width
135 mm
VPE height
32 mm

Indicación importante

IPC conformity
Conformidad: Los productos se diseñan, fabrican y entregan de conformidad con los estándares y normas reconocidas internacionalmente, y cumplen con las características especificadas en la hoja técnica o, según el producto, con las características decorativas de conformidad con la norma IPC-A-610 "Clase 2". Cualquier demanda sobre los productos se puede evaluar bajo solicitud.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Clasificaciones

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
