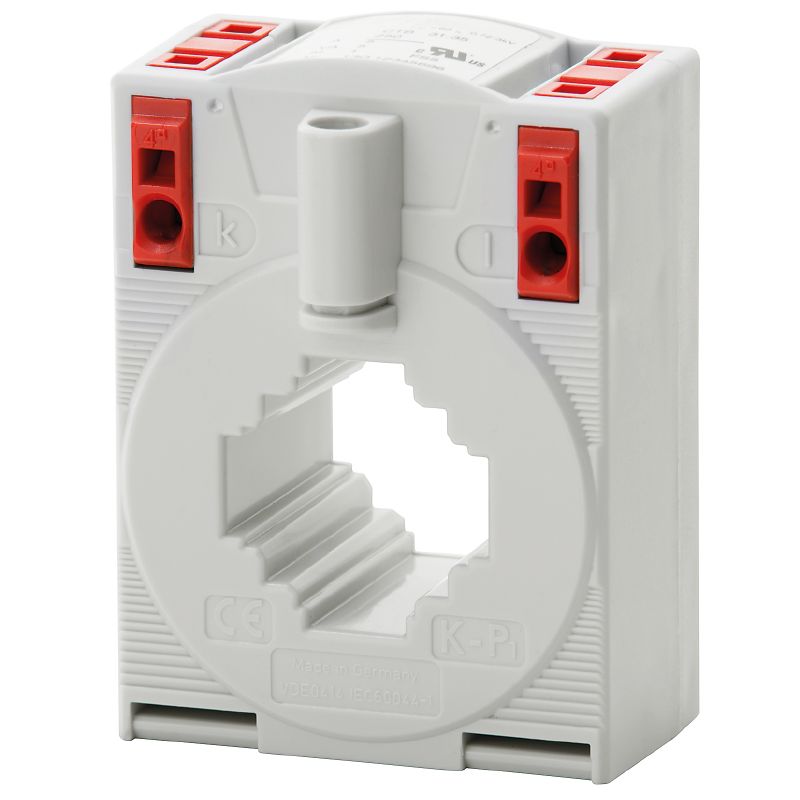

Primary current: 250 A, Secondary current max.: 5 A, Load: 5 VA, Tolerance class: 0,5, closed current transformer

Ürün No. 1482050000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 1 aksesuarıdır 3 İlgili ürünler 22
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions of live conductors Electrical attributes General data Technical properties Insulation coordination Classifications

Approvals

ROHS
Conform

General ordering data

Version
Primary current: 250 A, Secondary current max.: 5 A, Load: 5 VA, Tolerance class: 0,5, closed current transformer
Číslo objednávky
1482050000
Art
CMA-31-250-5A-5VA-0,5
GTIN (EAN)
4050118291094
Qty.
1 adet

Dimensions and weights

Depth
52 mm
Depth (inches)
2,047 inch
Höhe
80,9 mm
Height (inches)
3,185 inch
Width
60 mm
Width (inches)
2,362 inch
Net weight
315 g

Temperatures

Storage temperature
-25 °C...70 °C
Operating temperature
-5 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions of live conductors

Type of conductor
Insulated conductor only
Round conductor
25,7 mm
Rail
20 x 20 mm
25 x 12 mm
30 x 10 mm
Installation location
Indoor use

Electrical attributes

Primary current
250 A
Prąd wtórny
0...5 A
Tolerance class
0,5
Нагрузка
5 VA

General data

Manufacturer
MBS AG

Technical properties

Corrente termica permanente di dimensionamento Itermico
1.2 x Irated
Szigetelés osztály
E
공칭 주파수
50 Hz

Insulation coordination

Standard
IEC 61869-1: 2007
IEC 61869-2: 2012
Tolerance class
0,5

Classifications

ETIM 8.0
EC002048
ETIM 9.0
EC002048
ETIM 10.0
EC002048
ECLASS 14.0
27-21-09-02
ECLASS 15.0
27-21-09-02
