FBCON SS CG 8WAY
FBCON SS CG 8WAY
FBCON SS CG 8WAY

FBCON SS CG 8WAY

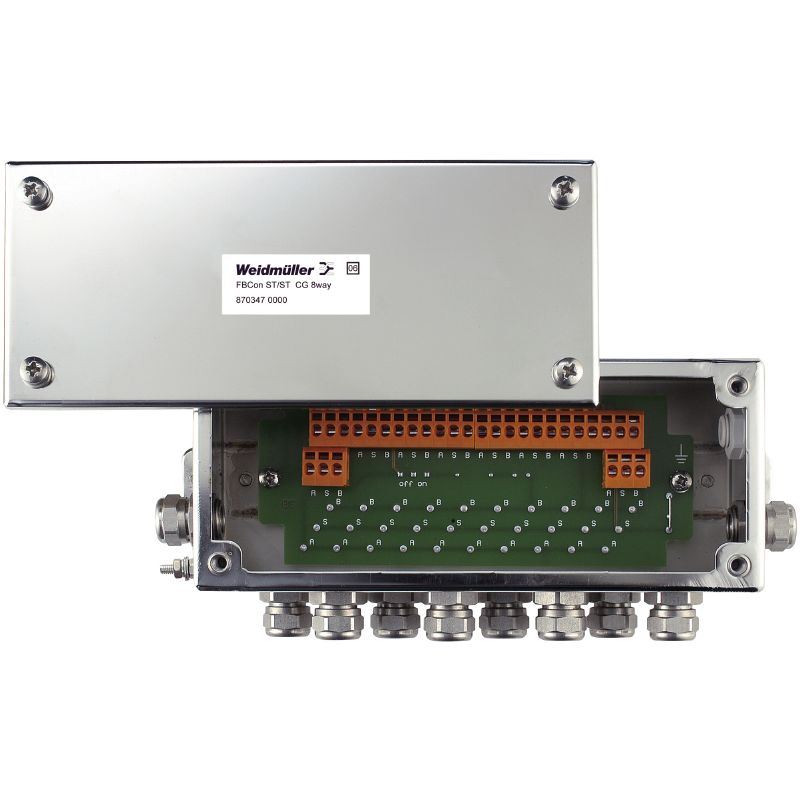

Standard distributor with bus termination (active), 8-way distributor, IP65, IP66, Round

Ürün No. 8703470000
Veri sayfasını indir Mühendislik desteği Yazılım desteği Ürün İndirmleri
İlgili ürünler 22
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Connection data Technical data Part description Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cULus)
E141197

General ordering data

Wersja
Standard distributor with bus termination (active), 8-way distributor, IP65, IP66, Round
Заказ №
8703470000
Typ
FBCON SS CG 8WAY
GTIN (EAN)
4032248398362
Qty.
1 adet

Dimensions and weights

Depth
86,5 mm
Depth (inches)
3,406 inch
Wysokość
58 mm
Height (inches)
2,283 inch
Szerokość
80 mm
Width (inches)
3,15 inch
Net weight
1.244 g

Temperatures

Температура хранения
-40 °C...80 °C
Температура окружающей среды
-40 °C…80 °C
Рабочая температура
-40 °C...80 °C
Humidity
5...95 %, no condensation

Probability of failure

SIL(IEC 61508 준수)
None

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
3a5f5913-76fc-4ff5-8563-4463f80bbe02

Connection data

Clamping range, min.
4 mm²
Clamping range, max.
6 mm²

Technical data

Bus system
Profibus-PA
Foundation Fieldbus
Cable glands
Stainless steel cable gland
Conductor O.D., min.
6,5 mm
Connection type PE
Spur line with cable gland
Design of housing
With pressure compensation element
Housing surface
polished
Kabelový vstup
Round
Number of poles
3
Pollution severity
3
Protection degree
IP65
IP66
Tensión de servicio
30 V
Type of distribution
8-way distributor
Type of mounting
surface-mounted
Vnější prům. vodiče, max.
9,5 mm
Üzemi feszültség, Umax, max.
30 V DC
하우징 기본 재질
Stainless steel, rust-proof
Aluminum

Part description

Product description
The device is a passive field distributor for the fieldbus systems Profibus PA and Foundation Fieldbus H1. The device complies with protection class IP66/IP67. Functional description The device connects up to eight field devices with a fieldbus segment. The device supports earthing concepts with multi-point screen earthing or single-point screen earthing. The earthing concepts are explained in the Profibus PA and Foundation Fieldbus guidelines.

Classifications

ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
