Eigenschaften

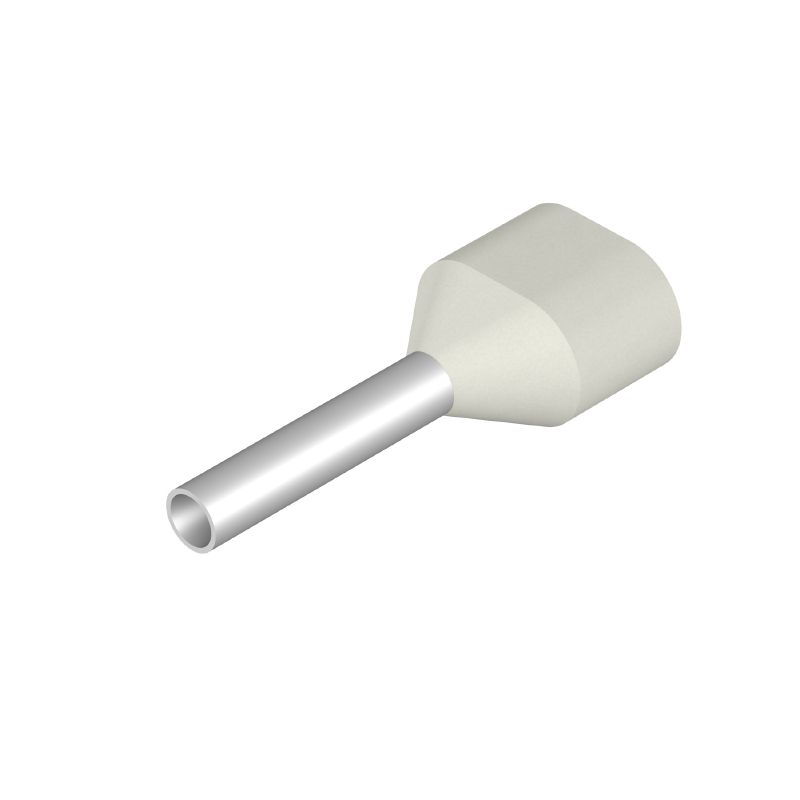

| Ausfuehrung | Aderendhülse, Zwillings-Aderendhülse, 11 mm, 8 mm, weiß |
| Best.-Nr. | 9037380000 |
| Art | H0,5/14D ZH W |
| GTIN (EAN) | 4008190492861 |
| VPE | 500 Stück |
| Verpackung | lose |
| Nettogewicht | 0,11 g |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | No SVHC above 0.1 wt% |
| Artikelbeschreibung | Zwillings-Aderendhülse, Farbe weiß |
| Ausführung | Zwillings-Aderendhülse |
| Abisolierlänge | 11 mm |
| Farbcode | DIN |
| Kontaktflächendurchmesser (D1) | 1,4 mm |
| Kontaktflächenlänge (L2) | 8 mm |
| Kragenbreite (B) | 3 mm |
| Kragenhöhe (A) | 5 mm |
| Kunststoffkragendicke (S2) | 0,3 mm |
| L1 in mm | 14 mm |
| Leiteranschlussquerschnitt | 0,5 mm² |
| Leiteranschlussquerschnitt AWG, max. | AWG 20 |
| Metallhülsendicke (S1) | 0,15 mm |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55485) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9037380000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9037380000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9037380000&norm=0) |
| Anwenderdokumentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| Zulassungen |   |
| ROHS | Konform |
| UL File Number Search | [UL Webseite](LINK/UL_search.html) |
| Zertifikat-Nr. (cULus) | E499744 |
