Eigenschaften

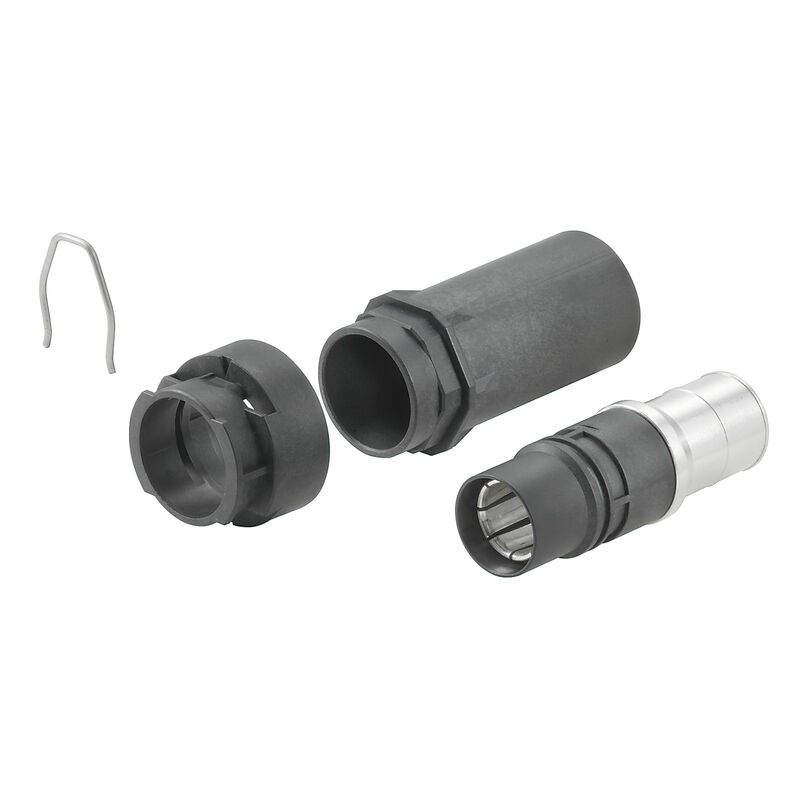

Ausführung | HDC - Einsatz, Buchse, 3000 V, 250 A, Crimpanschluss, Baugröße: 250 |
Best.-Nr. | 1079720000 |
Typ | HDC HP 250 F 25 |
GTIN (EAN) | 4032248841646 |
VPE | 1 Stück |
Länge | 83,2 mm |
Länge (inch) | 3,276 inch |
Durchmesser | 32 mm |
Nettogewicht | 81,368 g |
Grenztemperatur | -50 °C ... 120 °C |
REACH SVHC | Lead 7439-92-1 |
SCIP | 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40 |
Anschlussart | Crimpanschluss |
Baugröße | 250 |
Baureihe | HighPower |
Bemessungsspannung (DIN EN 61984) | 3.000 V |
Bemessungsstoßspannung (DIN EN 61984) | 15 kV |
Bemessungsstrom (DIN EN 61984) | 250 A |
BG | 250 |
Brennbarkeitsklasse nach UL 94 | V-0 |
Durchgangswiderstand | ≤0.1 mΩ |
Farbe | schwarz |
Isolationswiderstand | 1010 Ω |
Isolierstoff | PA GF |
Leiteranschlussquerschnitt | 25 mm² |
Oberfläche | Silber passiviert |
Typ | Buchse |
Verschmutzungsgrad | PD 2 (PD 3) |
Werkstoff | Kupferlegierung |
Anschlussart PE |
Crimpanschluss
Schraubanschluss |
Abisolierlänge Leistungskontakt | 24 mm |
Anschlussart Leistungskontakt | Crimpanschluss |
Bemessungsspannung (DIN EN 61984) Leistungskontakt | 3.000 V |
Bemessungsstoßspannung (DIN EN 61984) Leistungskontakt | 15 kV |
Bemessungsstrom (DIN EN 61984) Leistungskontakt | 250 A |
25 mm² | |
Abisolierlänge Bemessungsanschluss | 24 mm |
Anschlussart | Crimpanschluss |
Baugröße | 250 |
BG | 250 |
Durchgangswiderstand | ≤0.1 mΩ |
Leiteranschlussquerschnitt AWG, max. | AWG 4 |
Leiteranschlussquerschnitt, max. | 25 mm² |
Oberfläche | Silber passiviert |
Werkstoff | Kupferlegierung |
Zulassung / Zertifikat / Konformitätsdokument | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79300) |
Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1079720000) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1079720000) |
WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1079720000&norm=0) |
Anwenderdokumentation |
[1487780000_00_11_13_BPZ_HDC_HP250-550_web.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35515)
[BPZL_F_CSA_Zulassung](https://mdcop.weidmueller.com/mediadelivery/asset/900_313925) [BPZ_HDC_HP_ungeschirmt](https://mdcop.weidmueller.com/mediadelivery/asset/900_313936) |
Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
Broschüren |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
ETIM 6.0 | EC000796 |
ETIM 7.0 | EC000796 |
ETIM 8.0 | EC000796 |
ETIM 9.0 | EC000796 |
ECLASS 9.0 | 27-44-02-04 |
ECLASS 9.1 | 27-44-02-04 |
ECLASS 10.0 | 27-44-02-04 |
ECLASS 11.0 | 27-44-02-04 |
ECLASS 12.0 | 27-44-02-04 |
ECLASS 13.0 | 27-44-02-04 |
ROHS | Konform |
