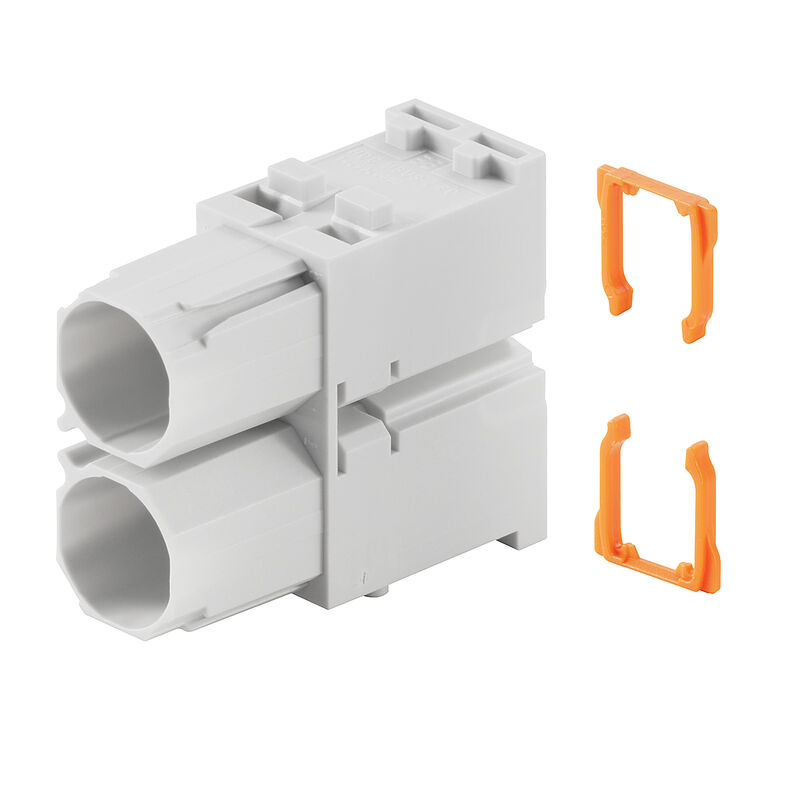

HDC MBUS 2 FC
HDC MBUS 2 FC

HDC MBUS 2 FC

Data module, 0 V, 0 A, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 1

Ürün No. 1429020000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 69 Karşı parçalar 1 Şunun karşı parçasıdır 1 İlgili ürünler 119
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dane ogólne PE connection data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Data module, 0 V, 0 A, Number of poles: 2, Crimp connection, Female, Required plug-in slots: 1
Order No.
1429020000
Type
HDC MBUS 2 FC
GTIN (EAN)
4050118233506
Qty.
1 adet

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
41,2 mm
Height (inches)
1,622 inch
Width
14,5 mm
Width (inches)
0,571 inch
Net weight
6,709 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd

Dane ogólne

Cicli di inserimento
≥ 500
Classe d'infiammabilità UL 94
V-0
Classe di sovratensione
III
Corrente di dimensionamento (DIN EN 61984)
0 A
Grado di lordura
3
Materiale di base
Polycarbonate, glass fibre reinforced
Numero di poli
2
Resistenza d'isolamento
1012 Ω
Serie
ModuPlug
Slot a innesto necessari
1
Tensione di dimensionamento (DIN EN 61984)
0 V
Tensione impulsiva di dimensionamento (DIN EN 61984)
0 kV
Tipo
Female

PE connection data

결선 유형 PE
Screw connection via module frame

Version

결선 유형
Crimp connection

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-18
ECLASS 15.0
27-44-02-18
