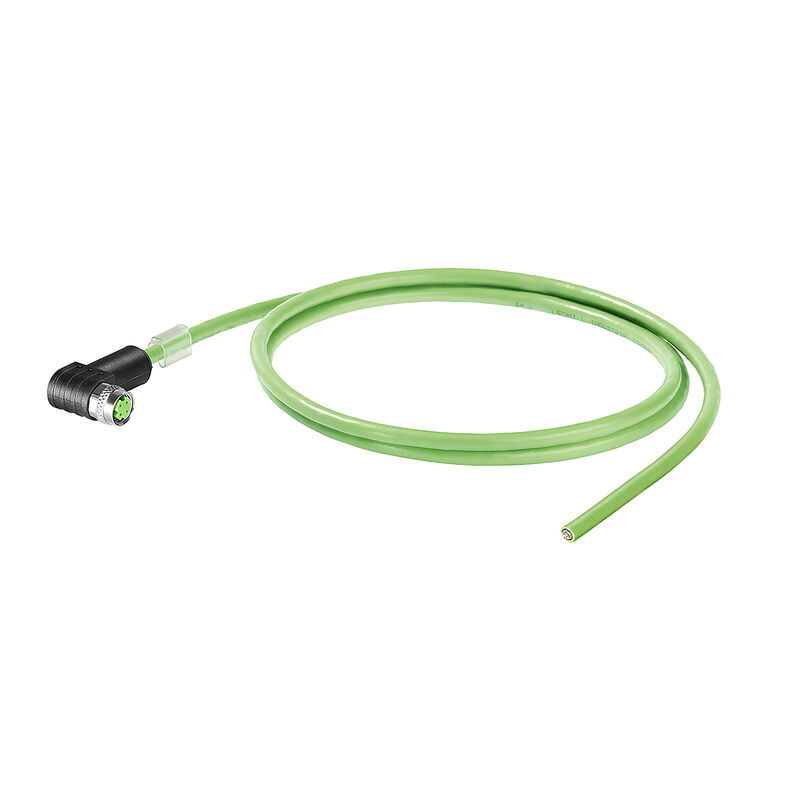

Dragline cable, PROFINET, M8 D-code - IP67 angeled socket, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 20 m

Ürün No. 2706160200
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 57
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, PROFINET, M8 D-code - IP67 angeled socket, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 20 m
Order No.
2706160200
Type
IE-C5DD4UG0200DSAXXX-E
GTIN (EAN)
4050118743043
Qty.
1 adet

Dimensions and weights

Length
20 m
Length (inches)
787,402 inch
Net weight
1.232 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

General standards

Norme de connecteur
IEC 61076-2-114

Standards

Connector standard
IEC 61076-2-114
Norma Material del apantallamiento
DIN EN 13602 Cu-ETP-A..B
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Arrangement of wire cores
Star-quad
Brins
7
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Denominazione secondo norma
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Diámetro revestimiento interior
3,9 mm
Filler
As central element
Insulation
PE
Insulation cross-section
1,5 mm
Köpeny színe
green (RAL 6018)
Material sheath
PUR
Number of wires
4
Overlap of shielding braid
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing material thickness
0,9 mm
Vezetékek – vezetékpárok színsorrendje
biały, żółty, niebieski, pomarańczowy
Wire core insulation thickness
0,38 mm
Wire material
Stranded tin-plated copper wire
Árnyékoló fonat vastagsága
0,13 mm
Экранирование
SF/UTP

Electrical properties of cable

Capacity at 1 kHz
52 nF/km
Categoria
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Resistance differential
3 %
Signallöptid
5,3 ns/m
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m a 10 MHz
Сопротивление петли
120 Ω/km
속도
180 m/min

Mechanical and material properties of cable

Abrasion resistance
very good
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M8, D-coded, IP67, female contact, angled 90°, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
