IE-C6KS8VG0050XCSXXX-E

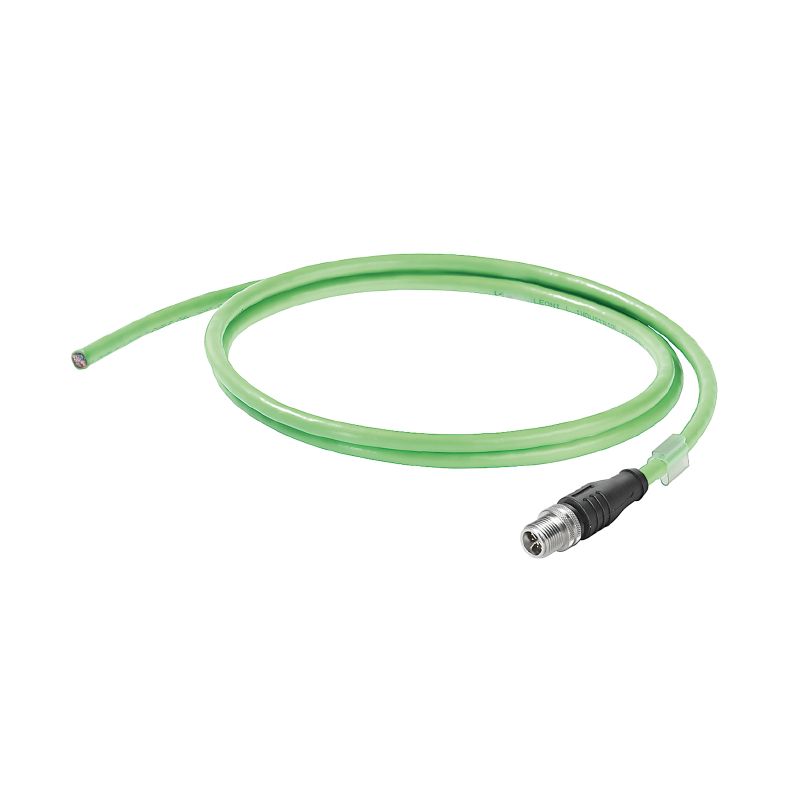

Connecting line, M12 X-type IP 67 straight male, Open, Cat.6A / Class EA (ISO/IEC 11801 2010), PVC, 5 m

Produkt ID 1449470050
Download datablad Produktdownloads
Tilbehør 2 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
Connecting line, M12 X-type IP 67 straight male, Open, Cat.6A / Class EA (ISO/IEC 11801 2010), PVC, 5 m
Best.-Nr.
1449470050
Type
IE-C6KS8VG0050XCSXXX-E
GTIN (EAN)
4050118264197
Qty.
1 Styk

Dimensions and weights

Länge
5 m
Length (inches)
196,85 inch
Net weight
407,44 g

Temperatures

Storage temperature
-40 °C...80 °C
Betriebstemperatur
-40 °C...80 °C
Installation temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, assembly
UL-Style 2461

Standards

Standard, assembly
UL-Style 2461

Cable structure

Colour sequence or wires - wire pairs
white/blue - blue, white/orange - orange, white/green - green, white/brown - brown
Cross-section
4*2*AWG 23/7
Insulation cross-section
1,58 mm
Material sheath
PVC
Sheath diameter, max.
8,8 mm
Sheathing colour
green (RAL 6018)
Shielding
S/FTP

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Test voltage: wire-wire-shield
800 Veff, 50 Hz, 1 min
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Halógenos
Yes
Min. bending radius, repetitive
8 x cable diameter
Min. hajlítási sugár, csak egyszer
4 x cable diameter
Pulling force
≤ 150 N
Resistenza alla fiamma
in accordance with IEC 60332-1-2

Plug, left

플러그 좌측
M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
