Eigenschaften

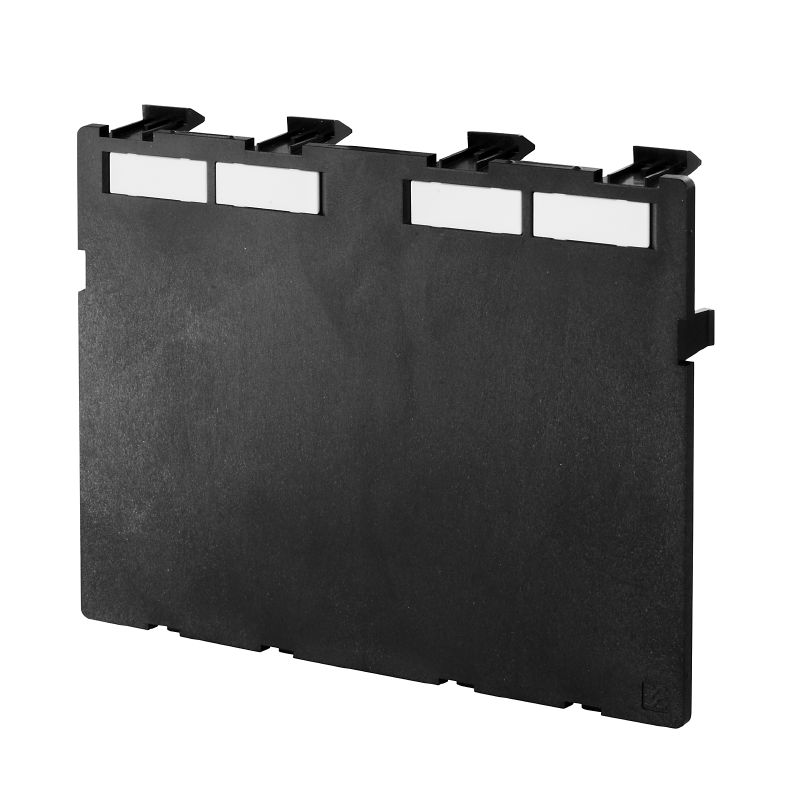

| Ausfuehrung | FrontCom, Einsatzplatte, ungeschirmt |
| Best.-Nr. | 2004890000 |
| Art | IE-FC-DIP-BP |
| GTIN (EAN) | 4050118389296 |
| VPE | 1 Stück |
| Höhe | 18,5 mm |
| Höhe (inch) | 0,728 inch |
| Breite | 116.5 |
| Breite (inch) | 4,587 inch |
| Länge | 90,5 mm |
| Länge (inch) | 3,563 inch |
| Nettogewicht | 39,908 g |
| Betriebstemperatur | -40 °C...70 |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 8a473a8a-33d4-4318-8088-c28f019e7f77 |
| Material | Polykarbonat PC |
| Produktart |
Einsatzplatte
ungeschirmt |
| Zertifikat-Nr. (CSA) | 2000039-80039714 |
| Zertifikat-Nr. (cURus) | E223801 |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87522) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2004890000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2004890000) |
| Anwenderdokumentation | [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90847) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000456 |
| ETIM 7.0 | EC000456 |
| ETIM 8.0 | EC000456 |
| ETIM 9.0 | EC000456 |
| ECLASS 9.0 | 27-18-28-06 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-28-06 |
| ECLASS 11.0 | 27-18-28-06 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| ECLASS 14.0 | 27-18-28-92 |
| Zulassungen |   |
| ROHS | Konform |
| UL File Number Search | [UL Webseite](LINK/UL_search.html) |
| Zertifikat-Nr. (cURus) | E223801 |
