Eigenschaften

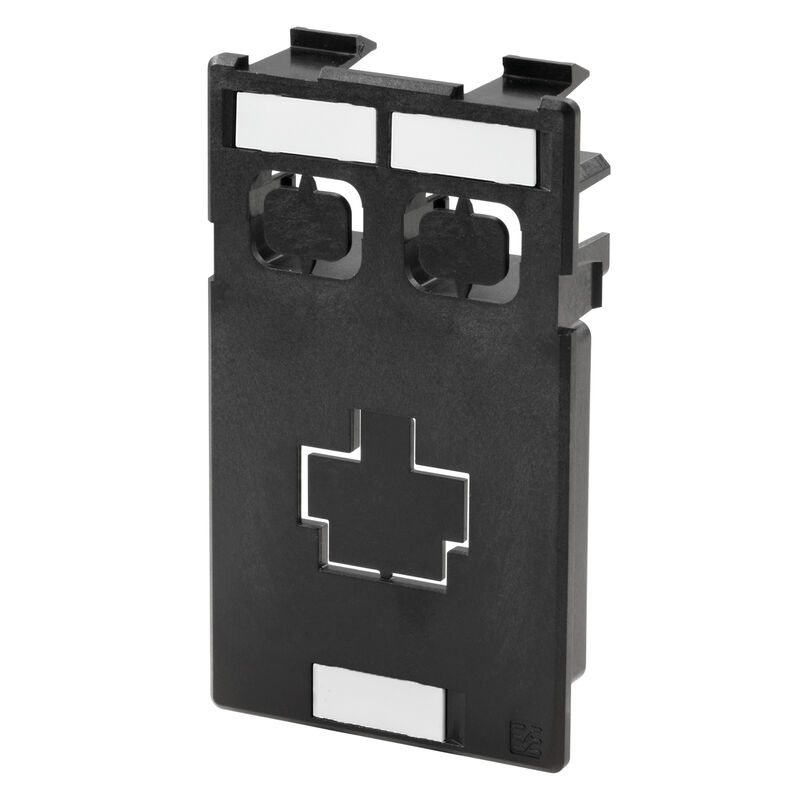

| Ausfuehrung | FrontCom, Einsatzplatte, ungeschirmt, 1x Power, US, 2x Data |
| Best.-Nr. | 1450700000 |
| Art | IE-FC-IP-PWU/2ST |
| GTIN (EAN) | 4050118255607 |
| VPE | 1 Stück |

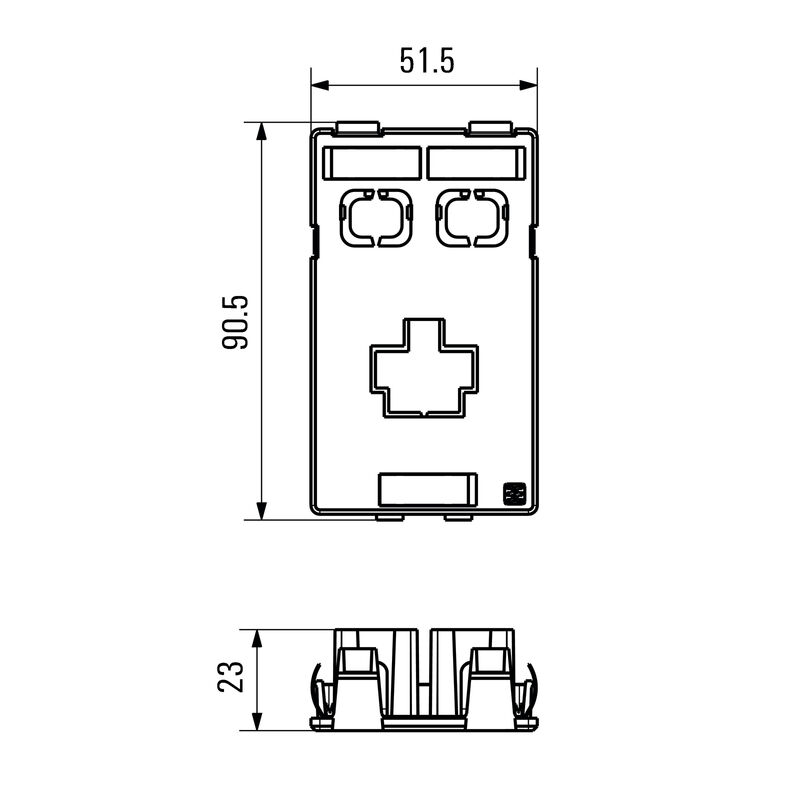

| Höhe | 23 mm |
| Höhe (inch) | 0,906 inch |
| Breite | 51.5 |
| Breite (inch) | 2,028 inch |
| Länge | 90,5 mm |
| Länge (inch) | 3,563 inch |
| Nettogewicht | 20 g |
| Betriebstemperatur | -40 °C...70 |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 8a473a8a-33d4-4318-8088-c28f019e7f77 |
| Material | Polykarbonat PC |
| Produktart |
Einsatzplatte
ungeschirmt |
| Einsatz Data | 2 |
| Einsatz Power US | 1 |
| Zertifikat-Nr. (CSA) | 2000039-80039714 |
| Zertifikat-Nr. (cURus) | E223801 |
| Zertifikat-Nr. (DNV) | TAA000022B |
| Zulassung / Zertifikat / Konformitätsdokument | [GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97714) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1450700000) |
| Anwenderdokumentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90847) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschüren |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000456 |
| ETIM 7.0 | EC000456 |
| ETIM 8.0 | EC000456 |
| ETIM 9.0 | EC000456 |
| ECLASS 9.0 | 27-18-28-06 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-28-06 |
| ECLASS 11.0 | 27-18-28-06 |
| ECLASS 12.0 | 27-18-28-92 |
| ECLASS 13.0 | 27-18-28-92 |
| ECLASS 14.0 | 27-18-28-92 |
| Zulassungen |    |
| ROHS | Konform |
| UL File Number Search | [UL Webseite](LINK/UL_search.html) |
| Zertifikat-Nr. (cURus) | E223801 |
