LMZF 5/11/135 3.5SW

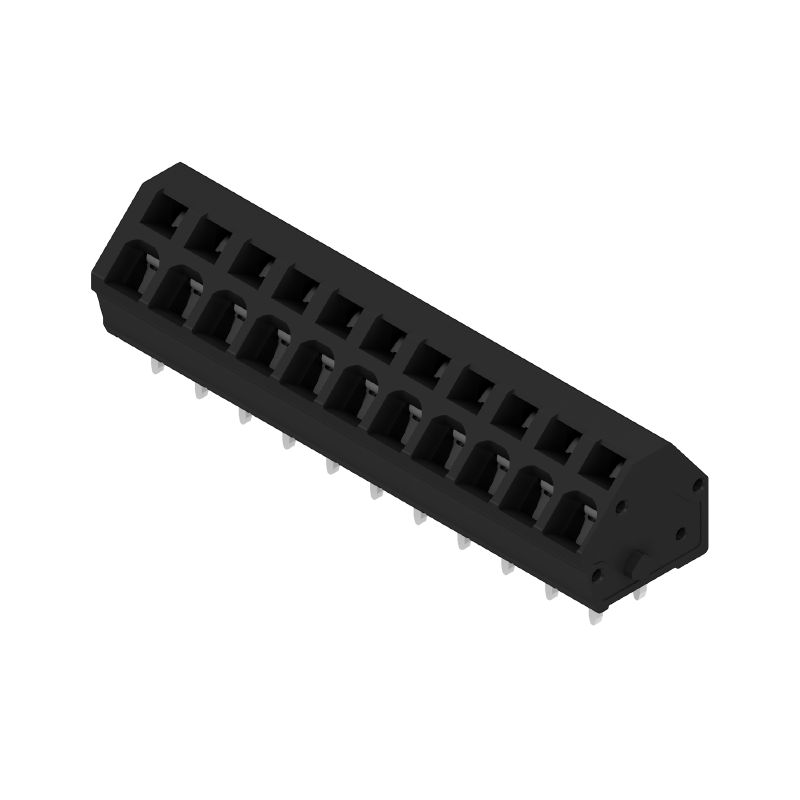

Product image
LMZF 5/11/135 3.5SW
Product image
LMZF 5/11/135 3.5SW
Dimensional drawing
LMZF 5/11/135 3.5SW
Graph

LMZF 5/11/135 3.5SW

Printed circuit board terminals, 5.00 mm, Number of poles: 11, 135°, Solder pin length (l): 3.5 mm, tinned, black, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box

商品编号 1811930000
下载技术数据页 工程支持 产品下载
相关商品 21
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Datos nominales según UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Sitio web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Wersja
Printed circuit board terminals, 5.00 mm, Number of poles: 11, 135°, Solder pin length (l): 3.5 mm, tinned, black, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box
Order No.
1811930000
Typ
LMZF 5/11/135 3.5SW
GTIN (EAN)
4032248291106
Qty.
100 Pieza
Valores característicos del producto
IEC: 630 V / 24 A / 0.13 - 2.5 mm²
UL: 300 V / 15 A / AWG 26 - AWG 14
Embalaje
Caja

Dimensions and weights

Głębokość
14,5 mm
Depth (inches)
0,571 inch
Wysokość
16,4 mm
Height (inches)
0,646 inch
Height of lowest version
12,9 mm
Szerokość
57,5 mm
Anchura (pulgadas)
2,264 inch
Net weight
14,32 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Produktfamilj
OMNIMATE Signal - series LMZF
Ledaranslutningsteknik
Tension-clamp connection
Montering på kretskortet
THT solder connection
Kierunek odejścia przewodu
135°
Raster w mm (P)
5 mm
Pitch in inches (P)
0,197 "
Number of poles
11
Pin series quantity
1
Vybavuje zákazník
No
Número de series
1
Максимальное количество полюсов на ряд
48
솔더 핀 길이(l)
3,5 mm
Wymiary kołka lutowniczego
0.8 x 0.8mm
Průměr otvoru pájecího očka (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0.1 mm
Number of solder pins per pole
2
Screwdriver blade
0.4 x 2.5
相关标准
DIN 5264-A
剥线长度
6 mm
L1（mm）
50 mm
L1（inch）
1,969 "
防触电保护（按照DIN VDE 0470）
IP 20
防触电保护（按照DIN VDE57106）
手指安全保护
防护等级
IP20

Material data

Insulating material
Wemid (PA)
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
铜合金
Contact surface
镀锡
Coating
4-10 μm SN
Tinning type
亚光
Layer structure of solder connection
4...6 µm Sn / 5...8 µm
最低存放温度.
-40 °C
最高存放温度
70 °C
最低操作温度
-50 °C
最高操作温度
120 °C
最小安装温度
-25 °C
最大安装温度范围
120 °C

Conductors suitable for connection

Clamping range, min.
0,13 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,13 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,13 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Clampable conductor
  • 导线连接 截面积:
    • 型号:
      细绞线
    • 标称:
      0,5 mm²
  • 管状端头:
    • 剥线长度:
      • 标称:
        8 mm
    • 推荐的管状端头:
      0409500000
    • 剥线长度:
      • 标称:
        6 mm
    • 推荐的管状端头:
      0282600000
  • 导线连接 截面积:
    • 型号:
      细绞线
    • 标称:
      0,75 mm²
  • 管状端头:
    • 剥线长度:
      • 标称:
        8 mm
    • 推荐的管状端头:
      0409600000
    • 剥线长度:
      • 标称:
        6 mm
    • 推荐的管状端头:
      0282700000
  • 导线连接 截面积:
    • 型号:
      细绞线
    • 标称:
      1 mm²
  • 管状端头:
    • 剥线长度:
      • 标称:
        8 mm
    • 推荐的管状端头:
      0409700000
    • 剥线长度:
      • 标称:
        6 mm
    • 推荐的管状端头:
      0372600000
  • 导线连接 截面积:
    • 型号:
      细绞线
    • 标称:
      0,25 mm²
  • 管状端头:
    • 剥线长度:
      • 标称:
        8 mm
    • 推荐的管状端头:
      9025740000
    • 剥线长度:
      • 标称:
        5 mm
    • 推荐的管状端头:
      9018910000
  • 导线连接 截面积:
    • 型号:
      细绞线
    • 标称:
      0,34 mm²
  • 管状端头:
    • 剥线长度:
      • 标称:
        8 mm
    • 推荐的管状端头:
      9025750000
Reference text
根据产品和额定电压选择管状端头的长度。
塑料套环的外径不应大于节距 (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
24 A
Rated current, min. number of poles (Tu=40°C)
24 A
Rated current, max. number of poles (Tu=40°C)
24 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Rated data acc. to CSA

협회(CSA)
CSA
Tanúsítvány száma (CSA)
200039-1815154
Märkspänning (användargrupp B / CSA)
300 V
Napięcie znamionowe (grupa użytkowa D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Courant nominal (groupe d'utilisation D / CSA)
10 A
Ledardiameter AWG, min.
AWG 26
와이어 단면적, AWG, 최대
AWG 14
Reference to approval values
规格为最大值，详情参见认证证书。

Datos nominales según UL 1059

Institute (cURus)
CURUS
Tanúsítvány száma (cURus)
E60693
Jmenovité napětí (aplikační skupina B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Prąd znamionowy (grupa użytkowa B / UL 1059)
15 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Průřez vodiče, AWG, max.
AWG 14
Reference to approval values
规格为最大值，详情参见认证证书。

Packing

opakowanie
Box
Długość VPE
78 mm
Szerokość VPE
208 mm
Wysokość VPE
265 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
