LS 2.8 WDU2.5-10

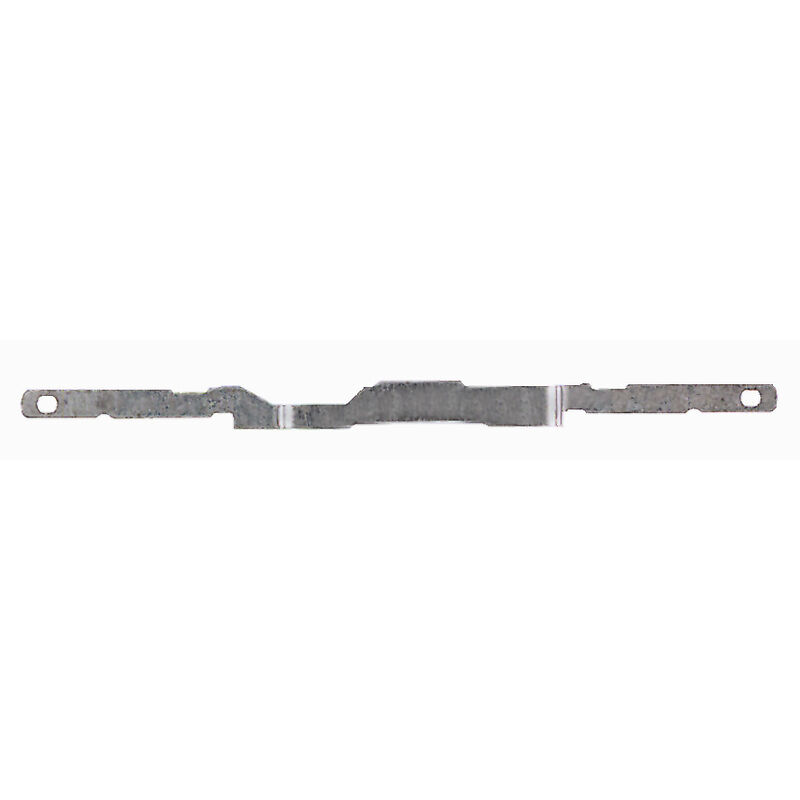

Product image
LS 2.8 WDU2.5-10

LS 2.8 WDU2.5-10

W řada, Sběrnice stínění

Product ID 1056400000
Gegevensblad downloaden Teknisk support Nedladdningar av produkter
Toebehoren 5 Is accessoire van 191 Verwante producten 44
Approvals Všeobecné objednací údaje Dimensions and weights Teploty Environmental Product Compliance Material data Additional technical data General Klassifikationen

Approvals

ROHS
Conform

Všeobecné objednací údaje

Version
W řada, Sběrnice stínění
Order No.
1056400000
Type
LS 2.8 WDU2.5-10
GTIN (EAN)
4008190036454
Qty.
100 items

Dimensions and weights

Depth
4,3 mm
Hloubka (v palcích)
0,169 inch
Height
75,2 mm
Höhe (inch)
2,961 inch
Width
1,15 mm
Anchura (pulgadas)
0,045 inch
Poids net
1,604 g

Teploty

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
V souladu bez výjimky
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
tinned copper
Colour
Silver grey

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Type of fixing
Snap-on

General

Installation advice
Direct mounting

Klassifikationen

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-14-11-92
ECLASS 15.0
27-14-11-92
