MHS 5/06 W T3 B T

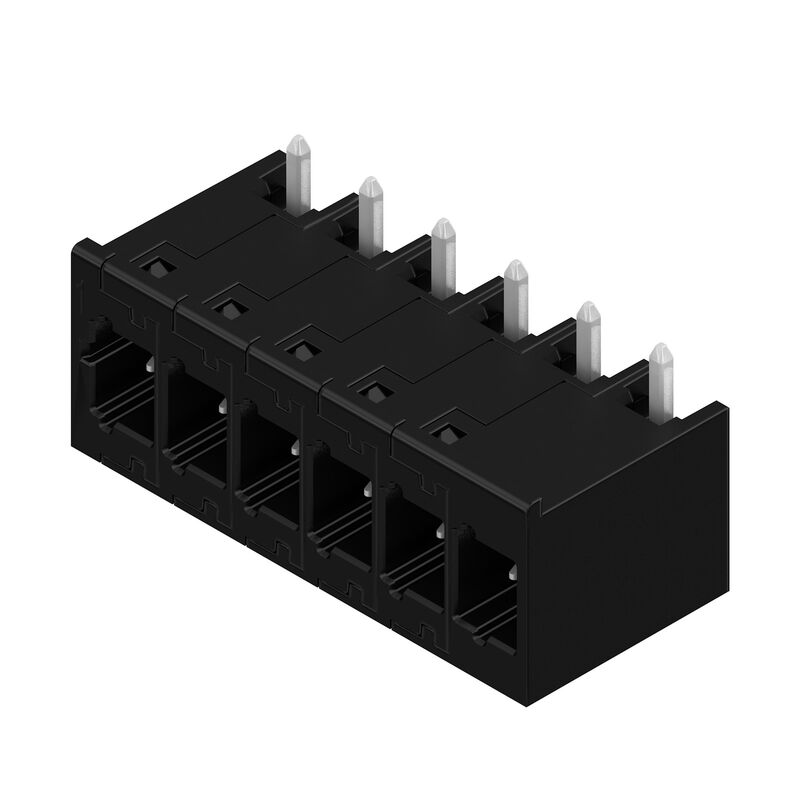

Product image
MHS 5/06 W T3 B T
Product image
MHS 5/06 W T3 B T

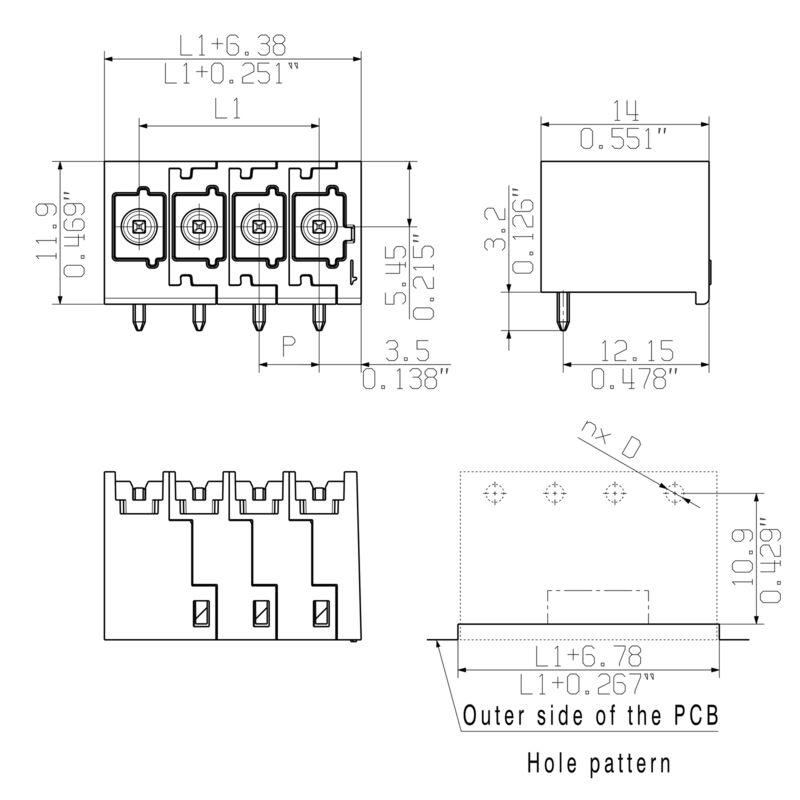

Dimensional drawing
MHS 5/06 W T3 B T
MHS 5/06 W T3 B T

MHS 5/06 W T3 B T

PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 6, 270°, Tube

N.º de artículo 8000072509
Descargar hoja de datos Engineering-support Produktdownloads
Er et modstykke til 2 Anvendte produkter 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to UL 1059 Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 6, 270°, Tube
Order No.
8000072509
Type
MHS 5/06 W T3 B T
GTIN (EAN)
4064675330905
CPZ
17 Styk
Product data
IEC: 400 V / 26.8 A
UL: 300 V / 18.5 A
Packaging
Tube

Dimensions and weights

Depth
14 mm
Mélység (coll)
0.551 inch
Height
14.1 mm
Height (inches)
0.555 inch
Height of lowest version
10.9 mm
Width
31.38 mm
Width (inches)
1.235 inch
Net weight
4.837 g

Temperatures

Ambient temperature
-50 °C…125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE 4.0
Type of connection
Board connection
Felszerelés NYÁK-ra
THT/THR solder connection
Raszter mm-ben (P)
5 mm
Raszter inch-ben (P)
0.197 "
Angolo di uscita
270°
Number of poles
6
Number of solder pins per pole
1
Solder pin length (l)
3.2 mm
Dimensioni del codolo a saldare
1.0 x 1.0 mm
솔더 구멍 직경(D)
1.4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
25 mm
L1 in inches
0.984 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Touch-safe above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
IP20
Volume resistance
≤5 mΩ
Plugging cycles
≥ 25
Plugging force/pole, max.
8.5 N
Pulling force/pole, max.
8.5 N

Material data

Insulating material
PA 9T
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Kúszóútképzési összehasonlítási szám (CTI)
≥ 600
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
CuMg
Contact material
Cu-alloy
접점 표면
tinned
Tinning type
matt
Storage temperature, min.
-25 °C
Storage temperature, max.
55 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
26.8 A
Rated current, max. number of poles (Tu=20°C)
19.7 A
Rated current, min. number of poles (Tu=40°C)
23.1 A
Rated current, max. number of poles (Tu=40°C)
16.9 A
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
400 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Clearance, min.
4 mm
Creepage distance, min.
5.4 mm

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Tensione nominale (Gruppo D / UL 1059)
300 V
Rated voltage (Use group F / UL 1059)
420 V
Corrente nominale (Gruppo B / UL 1059)
18.5 A
Corrente nominale (Gruppo D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
