Photovoltaics, Combiner Box, PV Next, 1100 V, 1 MPP, 3 Inputs / 3 Outputs per MPP, Surge protection I / II, Switch disconnector, MC4-Evo 2

Product ID 2890350000
Gegevensblad downloaden Productdownloads Engineeringondersteuning
Toebehoren 10 Is accessoire van 3 Onderdelen 1 Verwante producten 63
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Objęte zakresem dostawy Guarantee Electrical characteristics Enclosure General data Inputs Outputs Überspannungsschutz DC-Seite DC load break switch Important note Classifications Tender specification sheets

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Ausfuehrung
Photovoltaics, Combiner Box, PV Next, 1100 V, 1 MPP, 3 Inputs / 3 Outputs per MPP, Surge protection I / II, Switch disconnector, MC4-Evo 2
Best.-Nr.
2890350000
Art
PVN DC 3I 3O 1MPP SW SPD1R EVO 11
GTIN (EAN)
4064675877998
Qty.
1 items

Dimensions and weights

Tiefe
172 mm
Tiefe (inch)
6,772 inch
Höhe
236 mm
Height (inches)
9,291 inch
Breite
200 mm
Width (inches)
7,874 inch
Net weight
2.133 g

Temperatures

Umgebungstemperatur
-40 °C…50 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Objęte zakresem dostawy

Beiliegendes Zubehör
  • Article:
    Mounting foot
  • Quantity:
    4

Guarantee

Zeitraum
5 years

Electrical characteristics

Bemessungskurzzeitstromfestigkeit
  • Rated current:
    57,5 A
Bemessungsspannung DC
1.100 V
DC-Nennstrom pro Anschluss
  • Current per string, max.:
    37,5 A
  • Current per string, max.:
    45 A
Strom pro Maximum Power Point, max.
46 A

Enclosure

Anschlussart String
Plug MC4-Evo 2
Gehäusebefestigung
Via mounting foots
Isolierstoff
Polyester glass-fibre reinforced, Polycarbonate
Polycarbonate
Montageart
Wall mounting
Schlagfestigkeit
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Schutzklasse
II

General data

Einbauort
Protected outdoor area (Land and Sea)
Normen
EN 61643-31
Schutzart
IP65

Inputs

Anschluss Funktionserde
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      Screw connection
    • Flexible, max. H05(07) V-K:
      25 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      16 mm²
Anzahl der Leitungseinführungen
2
Anzahl der Maximum Power Points (MPP)
1
Anzahl der Strangeingänge pro MPP
≤ 3
DC-Eingang + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      16 mm²
Max. Anzahl der DC-Eingänge
per Maximum Power Point 3 inputs connected in parallel
Sicherungen
No
Sicherungsart
Neither fuse cartridge nor holder
Überspannungsschutz Hilfskontakt
  • Cable entry:
    • Number of cable entries:
      2
  • Wire connection:
    • Type of connection:
      Tension clamp connection with actuator
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Number of inputs
3

Outputs

DC-Ausgang + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      16 mm²
Max. number of DC outputs
per Maximum Power Point 3 outputs connected in parallel

Überspannungsschutz DC-Seite

Ableitstrom In (8/20 µs)
20 kA
Ableitstrom, max. (8/20 µs)
40 kA
Anforderungsklasse
Typ I/II
Blitzprüfstrom Iimp (10/350 µs)
6.25 kA
Gesamtableitstrom Itotal (10/350µs)
12,5 kA
Gesamtableitstrom Itotal (8/20µs)
50 kA
Kurzschlussfestigkeit ISCPV
11.000 A
Max. kontinuierliche Betriebsspannung DC UCPV-Modus +/- , -/PE , +/PE
1.100 V
Normen
EN 61643-31
Schutzpegel Up (+/- , -/PE , +/PE)
≤ 3.8 kV
Schutzpegel Up (+/-)
≤ 3.8 kV
Schutzpegel Up (+/PE)
≤ 3.8 kV
Schutzpegel Up (-/PE)
≤ 3.8 kV
Spannung der PV Anlage, max. UCPV
1.100 V
Standby-Leistungsaufnahme PC
<0.2 W

DC load break switch

Anzahl Betätigungszyklen
10000
Anzahl der Ausschaltzyklen bei Nennstrom
300
Bemessungs-Kurzschlusseinschaltvermögen
1,4 A
Bemessungsstoßspannung
8 kV
Lasttrennschalter-Ausführung
switch in cover
Motorantrieb vorhanden
No
Schaltleistung Lasttrennschalter
DC-PV1
IEC 60947-3

Important note

Produkthinweis
The SCIP number was assigned due to a lead content of more than 0.1 % of the net weight.

Safe use instruction according to ECHA:
The identification of the hazardous substance is sufficient to allow safe use of the article throughout its life cycle, including the service life, disassembly and waste/recycling phase

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

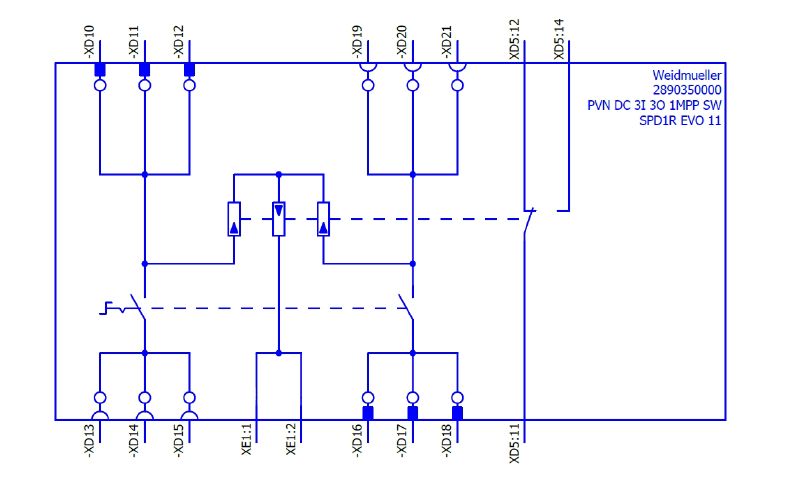

Long specification

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to EN 51543-32.

MPP1:
3 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
3 outputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

Max. string voltage Uoc: 1100V
1 class/type I + II combined arrester with signal contact
With load break switch for safe separation of the string lines
Connection of the signal contact via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm²
Connection of the functional earth via cable glands (8-12mmØ) Conductor cross-section: 16-25mm²
Protection class: IP65
All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 236x200x172 mm

Approval according to low voltage switchgear and controlgear IEC 61439-1:2011 and EN 61439-2:2011
