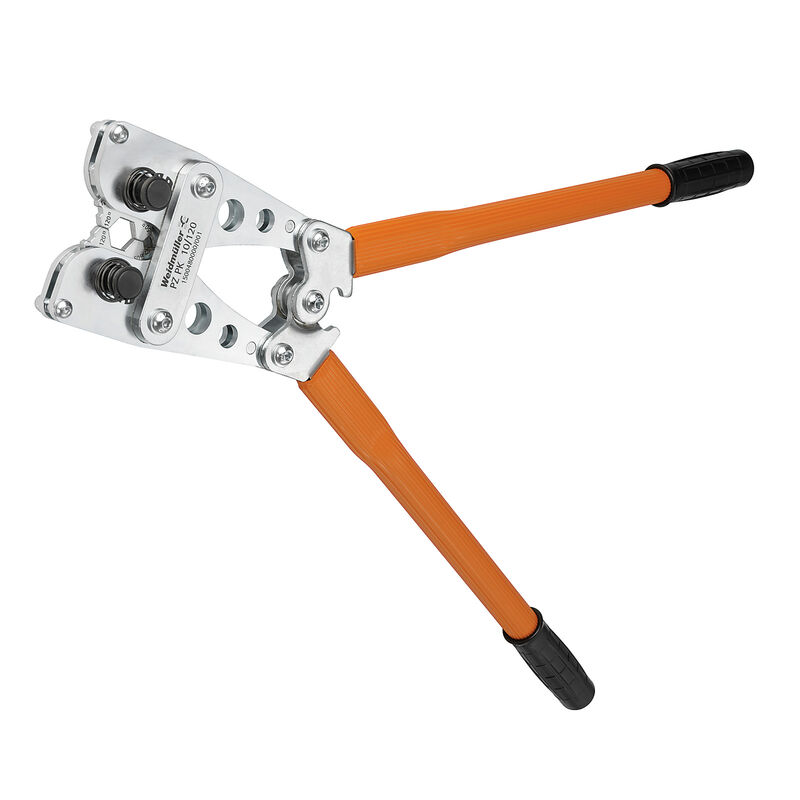

PZ PK 10/120

PZ PK 10/120

10mm², 120mm², Šestihranné krimpování

Product ID 1500480000
Gegevensblad downloaden Téléchargements de produits
Toebehoren 82 Is accessoire van 84 Afzonderlijke onderdelen van 1 Verwante producten 4
General ordering data Dimensions and weights Environmental Product Compliance Technical data Crimp inserts Description of contact tool data crimping Klasifikace

General ordering data

Version
10mm², 120mm², Šestihranné krimpování
Order No.
1500480000
Type
PZ PK 10/120
GTIN (EAN)
4050118309089
VPE
1 Stück

Dimensions and weights

Length
660 mm
Länge (inch)
25,984 inch
Net weight
3.800 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Version
Mechanical, without interchangeable inserts

Crimp inserts

Crimp cross-section aluminium
10 … 70 mm²
Crimping width
5 mm

Description of contact

Crimping range, max.
120 mm²
Crimping range, min.
10 mm²

tool data crimping

Crimping type/profile
Hexagonal crimp
Wire end ferrules cross-section, max.
120 mm²
Wire end ferrules cross-section, min.
10 mm²

Klasifikace

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
