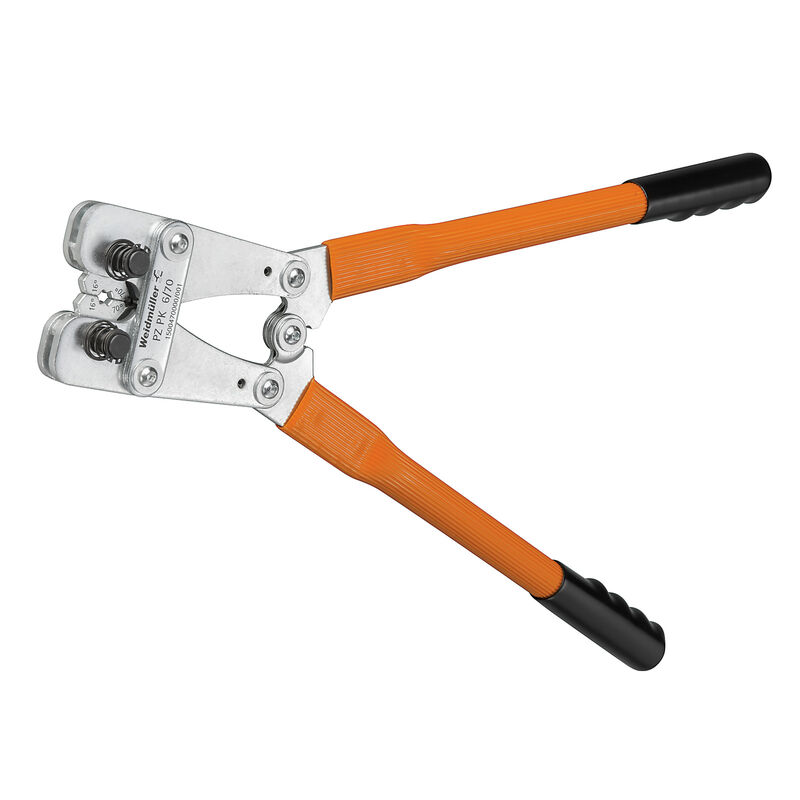

PZ PK 6/70

PZ PK 6/70

6mm², 70mm², Hexagonal crimp

Ürün No. 1500470000
Veri sayfasını indir Product Downloads
Aksesuarlar 64 aksesuarıdır 66 İlgili ürünler 4
General ordering data Dimensions and weights Environmental Product Compliance Technical data Crimp inserts Description of contact tool data crimping Classifications

General ordering data

Version
6mm², 70mm², Hexagonal crimp
Order No.
1500470000
Type
PZ PK 6/70
GTIN (EAN)
4050118309263
Qty.
1  adet

Dimensions and weights

Depth
515  mm
Depth (inches)
20,276  inch
Net weight
2.040  g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Version
Mechanical, without interchangeable inserts

Crimp inserts

Crimp cross-section aluminium
10 … 50 mm²
Crimping width
5  mm

Description of contact

Crimping range, max.
70  mm²
Crimping range, min.
6  mm²

tool data crimping

Crimping type/profile
Hexagonal crimp
Wire end ferrules cross-section, max.
70  mm²
Wire end ferrules cross-section, min.
6  mm²

Classifications

ETIM 6.0
EC000168
ETIM 7.0
EC000168
ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 9.0
21-04-38-11
ECLASS 9.1
21-04-38-11
ECLASS 10.0
21-04-38-11
ECLASS 11.0
21-04-38-11
ECLASS 12.0
21-04-38-11
ECLASS 13.0
21-04-38-11
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
