SAIL-M12GM8W-3-2.0U
SAIL-M12GM8W-3-2.0U
Dimensioned drawing
Male, straight
SAIL-M12GM8W-3-2.0U
Dimensioned drawing
Angled socket
SAIL-M12GM8W-3-2.0U
Pole scheme
Male
SAIL-M12GM8W-3-2.0U
Pole scheme
Socket
SAIL-M12GM8W-3-2.0U
Wiring diagram
Schaltbild

SAIL-M12GM8W-3-2.0U

Bu ürün yakında mevcut olmayacak.

Last order date: /Date(1790719200000)/

Alternative product: 9457980300

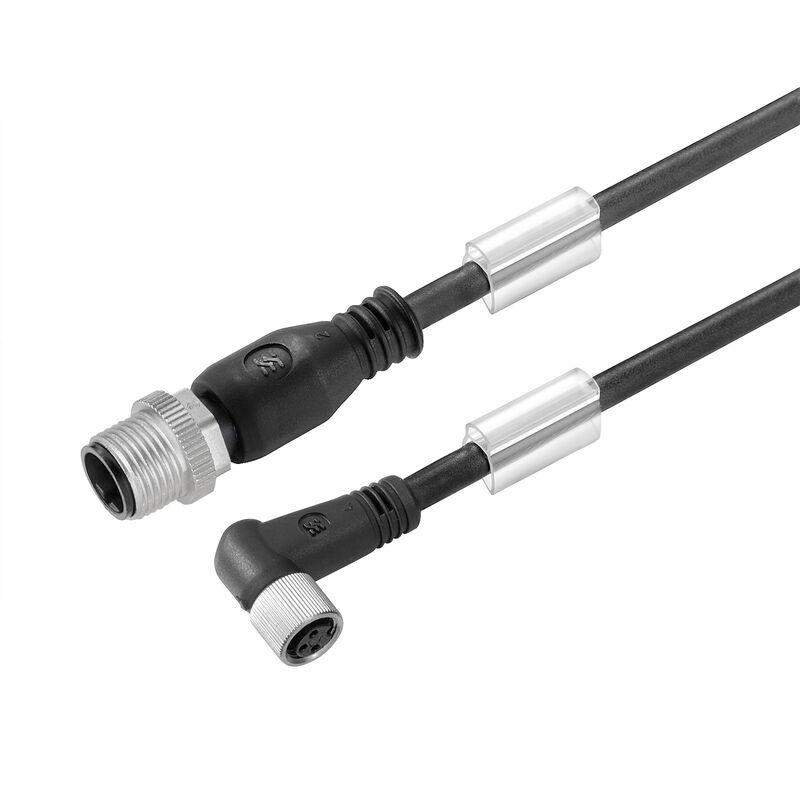

Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 2 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 9457980200
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 6 İlgili ürünler 39
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 2 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457980200
Type
SAIL-M12GM8W-3-2.0U
GTIN (EAN)
4032248229802
Qty.
1 adet
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/
Alternative product
[9457980300](~/p/9457980300)

Dimensions and weights

Diameter
3,6 mm
Net weight
55,44 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

accelerazione
5 m/s²
Alogeni
No
Bending cycles at torsion
> 5 Mio.
cicli di piegatura
5 Mio
Colore della guaina
black (similar to RAL 9005)
Färkodning
brown
blue
black
Guaina secondo UL AWM Style
20549 (80 °C / 300 V)
Hydrolysis and microbe resistant
Yes
Idoneità all'installazione con catene portacavi
Yes
Isolamento
PP
Kábelhossz
2 m
Length of torsion
1 m
Lunghezza cavo configurabile
No
Materiale della guaina
PUR
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Number of poles
3
Odporność na iskry spawalnicze
No
Outside diameter
3.6 mm + 0.15 mm
Raggio di curvatura min., fisso
5 x cable diameter
Raggio di curvatura min., mobile
10 x cable diameter
Resistant to welding beads
No
Resistenza agli olii
Yes
Resistenza alla fiamma
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Schermato
No
Sezione del conduttore
0,25 mm²
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Velocità
3,33 m/s
Встроенный дренажный провод
No
조사 교차결합
No

General technical data

Coding
M12 = A-coded / M8 = none
Connection thread
M12 / M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Norme de connecteur
IEC 61076-2-101
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-101
IEC 61076-2-104

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M8, IP69, female contact, angled 90°, Plastic, LED, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
