Properties
| Version | MetalliCard, Conductor and cable markers, 7 - 40 mm, 40 x 12 mm, silver |
| Order No. | 1500230000 |
| Type | SFX-M 12/40-5 AL |
| GTIN (EAN) | 4050118308761 |
| Qty. | 50 items |

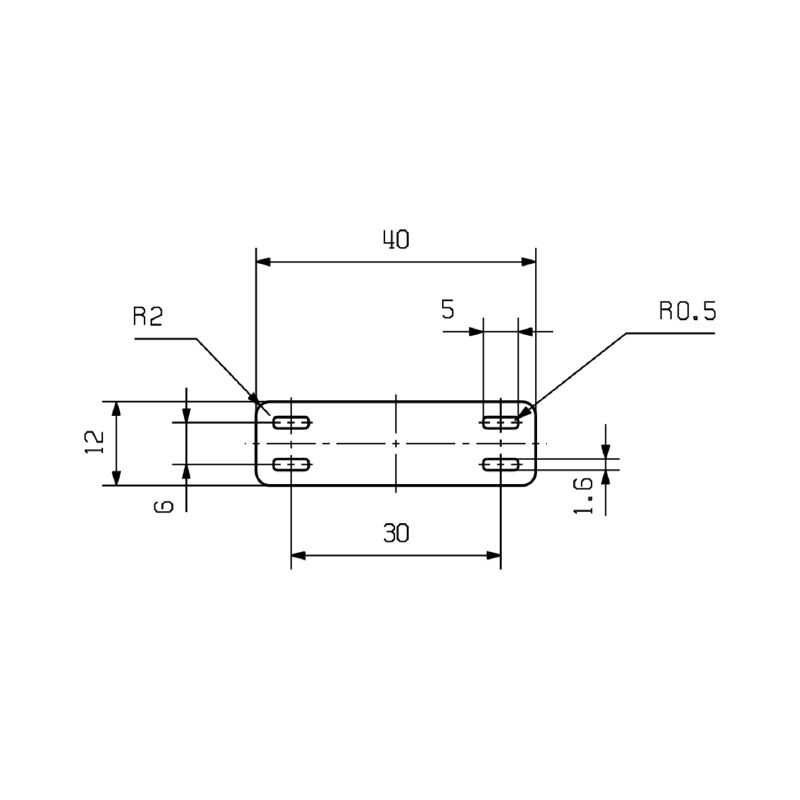

| Depth | 0.8 mm |
| Depth (inches) | 0.031 inch |
| Height | 40 mm |
| Height (inches) | 1.575 inch |
| Width | 12 mm |
| Width (inches) | 0.472 inch |
| Net weight | 0.82 g |
| Operating temperature range | -55...130 °C |
| Colour | silver |
| Material | Anodized aluminium |
| Number of markers per combination | 1 MetalliCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -55...130 °C |
| Operating temperature range, max. | 130 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries |
Process
Energy |
| Size of labelling field | 12.2 x 25 mm |
| Width | 12 mm |
| Cable tie passage | Flat |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 7 - 40 mm |
| Conductor O.D., max. | 40 mm |
| Conductor O.D., min. | 7 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Suitable cable tie | Plastic |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61913) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1500230000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1500230000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1500230000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
