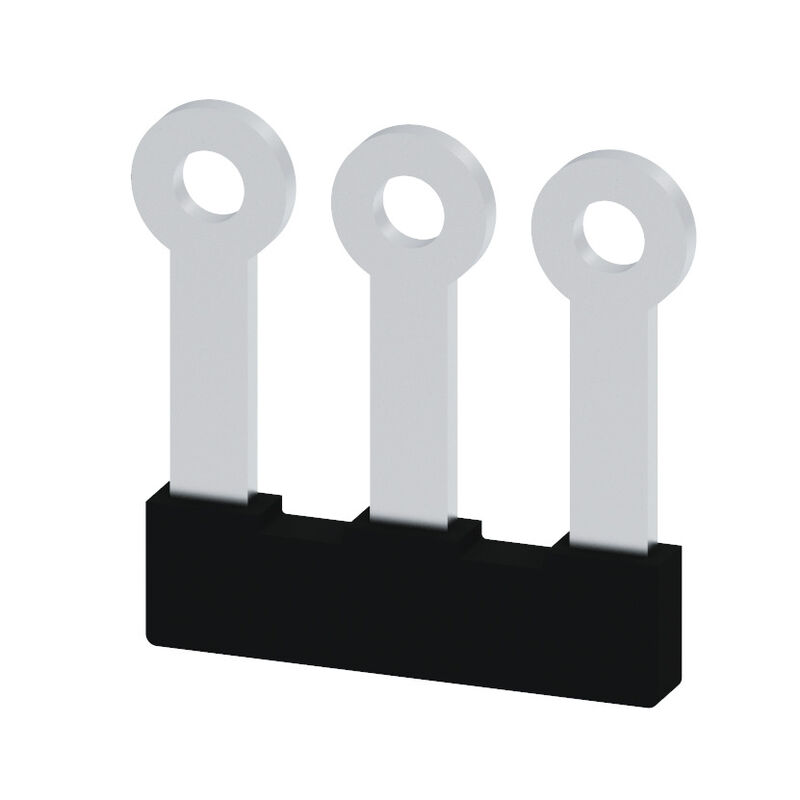

SQB 3/3

SQB 3/3

Dette produkt er snart ikke længere tilgængeligt.

Sidste ordre dato: /Date(1809036000000)/

Cross-connector (terminal), when screwed in, black, 41 A, Number of poles: 3, Pitch in mm (P): 9.00, Insulated: Yes, Width: 23.1 mm

Produkt ID 2615120000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 1 Anvendte produkter 458
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

버전
Cross-connector (terminal), when screwed in, black, 41 A, Number of poles: 3, Pitch in mm (P): 9.00, Insulated: Yes, Width: 23.1 mm
N. d’ordine
2615120000
Type
SQB 3/3
GTIN (EAN)
4050118653861
Qty.
50 Styk

Dimensions and weights

깊이
2,8 mm
Depth (inches)
0,11 inch
Wysokość
24 mm
Height (inches)
0,945 inch
너비
23,1 mm
Width (inches)
0,909 inch
Net weight
3,045 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Omgivningstemperatur
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
PA
Colour
black
UL 94 flammability rating
V-2

System specifications

Version
Cross-connector

Additional technical data

Explosion-tested version
No
Type of fixing
when screwed in
Type of mounting
when screwed in

Dimensions

Pitch in mm (P)
9 mm

General

回路数
3

Rating data

Rated voltage
400 V
Nominal current
41 A

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
