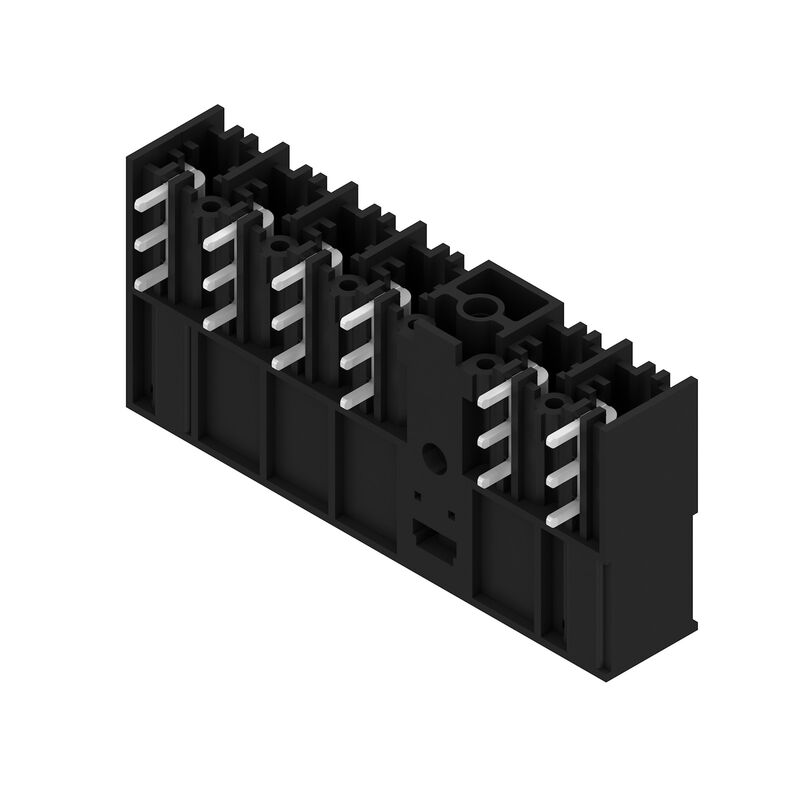

Product image
SU 10.16HP/06/90MF3 3.5AG BK BX
Product image
SU 10.16HP/06/90MF3 3.5AG BK BX
Dimensional drawing
SU 10.16HP/06/90MF3 3.5AG BK BX
Graph
SU 10.16HP/06/90MF3 3.5AG BK BX
Example of use

SU 10.16HP/06/90MF3 3.5AG BK BX

PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 10.16 mm, Number of poles: 6, 90°, Solder pin length (l): 3.5 mm, silver-plated, black, Box

Tuotteen tunnus 2597230000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 15
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Versión
PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 10.16 mm, Number of poles: 6, 90°, Solder pin length (l): 3.5 mm, silver-plated, black, Box
Código
2597230000
Tipo
SU 10.16HP/06/90MF3 3.5AG BK BX
GTIN (EAN)
4050118609295
Qty.
24 items
Product data
IEC: 1000 V / 78.3 A
UL: 300 V / 60 A
Packaging
Box

Dimensions and weights

Poids net
25,32 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BU/SU 10.16HP
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
10,16 mm
Pitch in inches (P)
0,4 "
Outgoing elbow
90°
Number of poles
6
Number of solder pins per pole
3
Solder pin length (l)
3,5 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
1.2 x 1.1 mm
Solder pin dimensions = d tolerance
+0.1 / -0.1 mm
솔더 구멍 직경(D)
1,6 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
60,96 mm
L1 in inches
2,4 "
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Volume resistance
2.00 mΩ
Can be coded
Yes
Tightening torque
  • Torque type:
    Mounting screw, PCB
  • Usage information:
    • Thickness:
      • min.:
        1,44 mm
      • max.:
        1,76 mm
    • Tightening torque:
      • min.:
        0,25 Nm
      • max.:
        0,3 Nm
    • Recommended screw:
      • Part number:
        2812340000
    • Thickness:
      • min.:
        2,88 mm
      • max.:
        3,52 mm
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm
    • Recommended screw:
      • Part number:
        2812340000
    • Thickness:
      • min.:
        1,44 mm
      • max.:
        3,52 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        0,9 Nm
    • Recommended screw:
      • Part number:
        2812290000

Material data

Materiales aislantes
PBT GF
Color
black
Carta de colores (similar)
RAL 9011
Grupo de materiales aislantes
IIIa
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 200
UL 94 flammability rating
V-0
Material de contacto
Cu-alloy
Surface du contact
silver-plated
Layer structure of solder connection
≥ 3 µm Ag
Dugaszolható csatlakozás rétegszerkezete
≥ 3 µm Ag
Skladovací teplota, min.
−40 °C
Skladovací teplota, max.
70 °C
Betriebstemperatur, min.
−50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
78,3 A
Corriente nominal, número de polos máx. (Tu=20 °C)
67,9 A
Corriente nominal, número de polos mín. (Tu=40 °C)
70,6 A
Corriente nominal, número de polos máx. (Tu=40 °C)
61,3 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
1 000 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
1 000 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
690 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
8 kV
Tenue aux courants de faible durée
3 x 1s mit 1000 A
Distancia de fuga, mín.
10,5 mm
Distancia mín.
8,9 mm

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
60 A
Rated current (Use group C / CSA)
60 A
Rated current (Use group D / CSA)
5 A

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
600 V
Prąd znamionowy (grupa użytkowa B / UL 1059)
60 A
Rated current (Use group C / UL 1059)
60 A
Rated current (Use group D / UL 1059)
5 A
Clearance distance, min.
8,9 mm
Creepage distance, min.
10,5 mm

Packing

Packaging
Box
VPE length
338 mm
VPE width
130 mm
VPE height
44 mm

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notas
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
