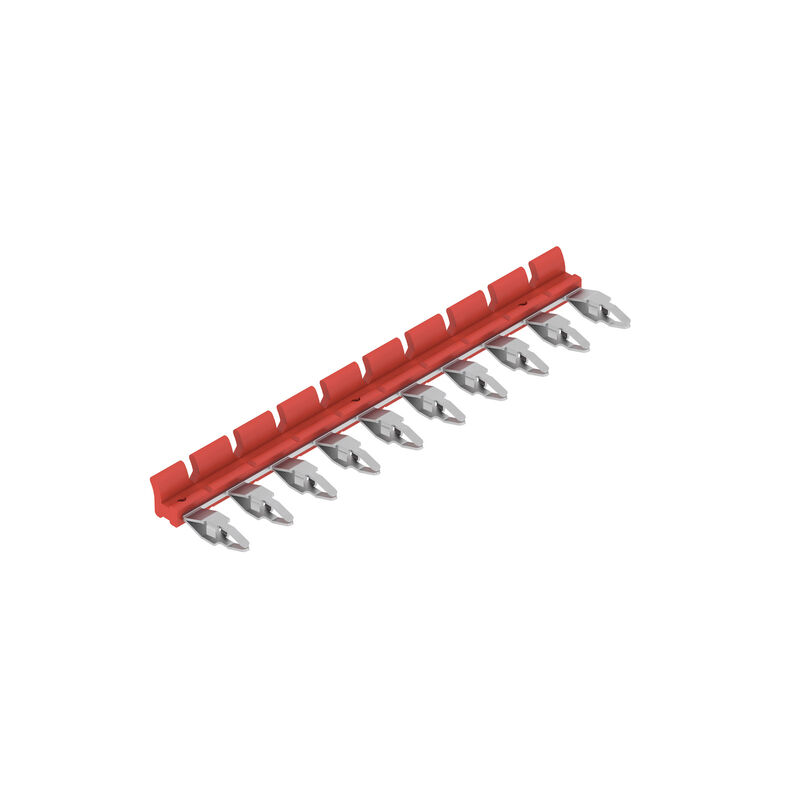

TCC 6.4/10 RD

TERMSERIES, Cross-connector

Tuotteen tunnus 2556400000

Ominaisuudet

General ordering data

Version	TERMSERIES, Cross-connector
Order No.	2556400000
Type	TCC 6.4/10 RD
GTIN (EAN)	4050118566918
Qty.	10 items

Dimensions and weights

Depth	4,8 mm
Depth (inches)	0,189 inch
Height	13,1 mm
Height (inches)	0,516 inch
Width	61 mm
Width (inches)	2,402 inch
Net weight	2,193 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Rated data UL

Rated current (UL)

10 A

General data

Version	can be cut to length
Colour	red
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0

Insulation coordination

Rated voltage

300 V

Connection data

Pitch in mm (P)

6,4 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_88030)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2556400000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2556400000)
User Documentation	[Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93135) [Beipackzettel / Package Insert](https://mdcop.weidmueller.com/mediadelivery/asset/900_93136)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002586
ETIM 7.0	EC002586
ETIM 8.0	EC002586
ETIM 9.0	EC002586
ECLASS 9.1	27-37-16-92
ECLASS 10.0	27-37-16-92
ECLASS 11.0	27-37-16-92
ECLASS 12.0	27-37-16-92
ECLASS 13.0	27-37-16-92
ECLASS 14.0	27-37-16-92

Approvals

ROHS

Conform
