Eigenschappen

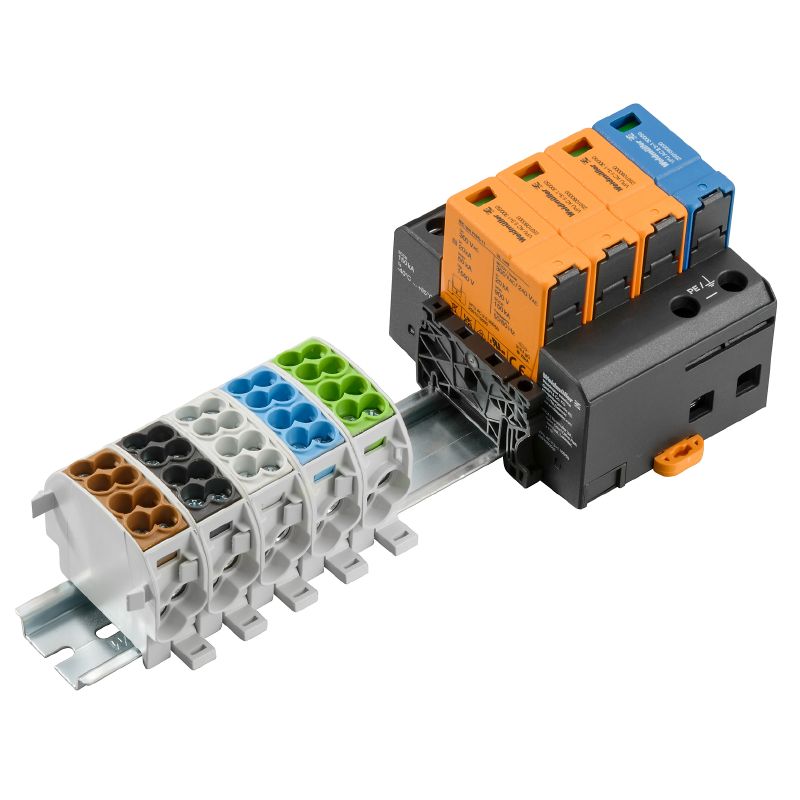

| Version | Multi-tier modular terminal, Screw connection, Miscellaneous, 25 mm², Number of connections: 26, Number of levels: 1, TS 35, V-0 |
| Order No. | 8000122105 |
| Type | TR BD WPD OVP1 |
| GTIN (EAN) | 4099986844216 |
| Qty. | 1 items |
| Depth | 68 mm |
| Depth (inches) | 2,677 inch |
| Height | 96,2 mm |
| Height (inches) | 3,787 inch |
| Width | 248 mm |
| Width (inches) | 9,764 inch |
| Net weight | 1.011 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| Material | Wemid |
| Colour | Miscellaneous |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of levels | 1 |
| Rail | TS 35 |
| N-function | Yes |
| Explosion-tested version | No |
| Open sides | closed |
| Type of mounting | Direct mounting |
| Blade size | Gr. PZ2 |
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 1,5 mm² |
| Clamping screw | M 6 |
| Connection direction | on side |
| Number of connections | 26 |
| Stripping length | 19 mm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rail | TS 35 |
| Standards |
IEC 60947-7-1
IEC 61643-11 EN 61643-11 UL 1449 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rated cross-section | 25 mm² |
| Rated current | 152 A |
| Current at maximum wires | 152 A |
| Standards |
IEC 60947-7-1
IEC 61643-11 EN 61643-11 UL 1449 |
| Pollution severity | 3 |
| Surge voltage category | III |
| Engineering Data | [WMC File 8000122105](https://mdcop.weidmueller.com/mediadelivery/asset/900_307866) |
| User Documentation |
[8000122105 - TR BD WPD OVP1 DE WEB](https://mdcop.weidmueller.com/mediadelivery/asset/900_313581)
[8000122105 - TR BD WPD OVP1 EN WEB](https://mdcop.weidmueller.com/mediadelivery/asset/900_313582) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-02 |
| ECLASS 14.0 | 27-25-01-02 |
