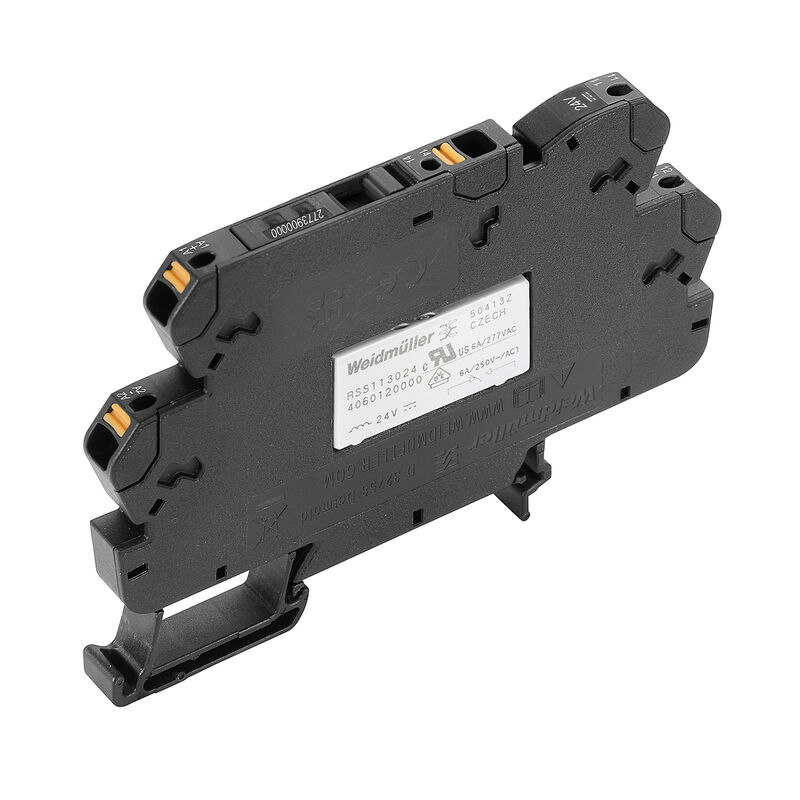

TRPL 24VDC 1CO AU TRAK
Similar to illustration

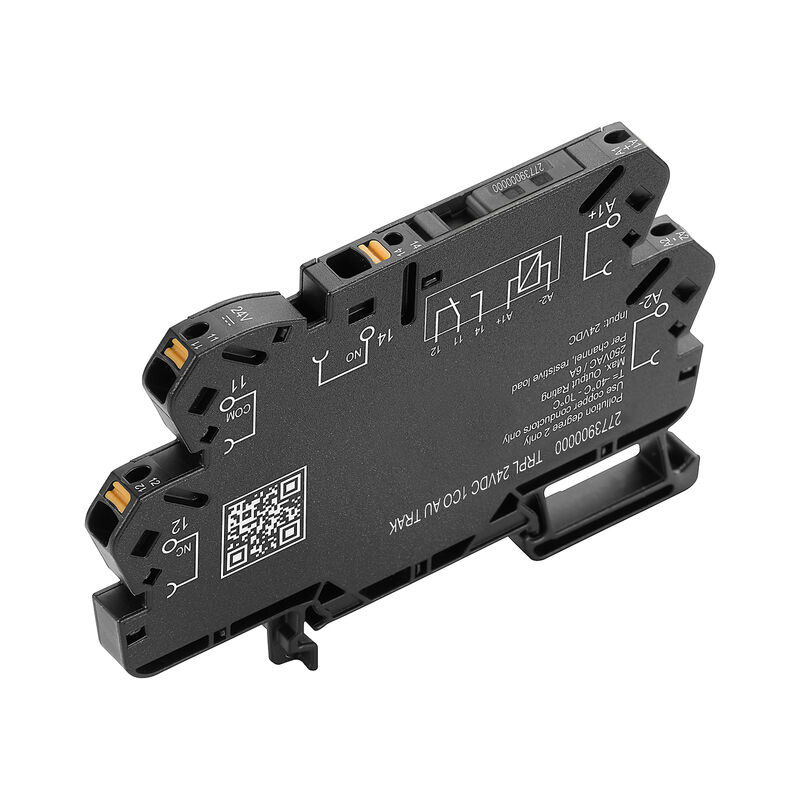

TRPL 24VDC 1CO AU TRAK
Similar to illustration
TRPL 24VDC 1CO AU TRAK
Wiring diagram
TRPL 24VDC 1CO AU TRAK
Graph
DC load limit curve
Resistive load
TRPL 24VDC 1CO AU TRAK
Dimensional drawing
TRPL 24VDC 1CO AU TRAK
Miscellaneous
Type codes

TRPL 24VDC 1CO AU TRAK

TERMSERIES-compact, Relay module, Number of contacts: 1, CO contact Au (Gold), AgSnO2, Rated control voltage: 24 V DC +25 % / -30 %, Continuous current: 6 A, PUSH IN, Test button available: No

Produkt-ID 2773900000
Öppna i konfiguratorn
Ladda ner datablad Teknisk support Nedladdningar av produkter
Tillbehör 27 Använda produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Control side Load side General data Insulation coordination Connection data Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)

General ordering data

Version
TERMSERIES-compact, Relay module, Number of contacts: 1, CO contact Au (Gold), AgSnO2, Rated control voltage: 24 V DC +25 % / -30 %, Continuous current: 6 A, PUSH IN, Test button available: No
주문 번호
2773900000
Type
TRPL 24VDC 1CO AU TRAK
GTIN (EAN)
4064675037675
Qty.
10 adet

Dimensions and weights

Profondità
62,5 mm
Depth (inches)
2,461 inch
높이
89,4 mm
Height (inches)
3,52 inch
너비
6,4 mm
Width (inches)
0,252 inch
Net weight
25 g

Temperatures

보관 온도
-40 °C...85 °C
주변 온도
-40 °C…70 °C
Humidity
95 % for 30 days, minimal condensation to EN 50155

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
75e5f661-708e-44b0-9fc2-4f6c675b3b71

Control side

Rated control voltage
24 V DC +25 % / -30 %
Rated current DC
16 mA
Power rating
384 mW
Rezystancja cewki
3390 Ω ± 10 %
Status indicator
LED verde
Conexión de protección
Diodo antiparalelo
Diodo supresor

Load side

Rated switching voltage
250 V AC
Continuous current
6 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
1 mA @ 1 V
Inrush current
20 A / 20 ms
AC switching capacity (resistive), max.
1500 VA
DC switching capacity (resistive), max.
144 W @ 24 V
Switch-on delay
5.6 ms
Switch-off delay
21.4 ms
Typ zestyku
1 zestyk przełączny (Au (złoto), AgSnO2)
Mekanisk livslängd
10 x 106 kopplingscykler

General data

Operating altitude
≤ 2000 m
above sea level
Version
for railway applications
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Colour
black
UL 94 flammability rating
V-0
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Relay status indicator
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Märkspänning
300 V
Pollution severity
2
Överspänningskategori
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
4 kVeff / 1 Min.
입력 및 출력의 절연 유형
reinforced insulation
Dielectric strength of open contact
1 kVeff / 1 min
Tenue en tension par rapport au rail profilé
4 kVeff / 1 min.
Lökőfeszültség
6 kV (1,2/50 µs)
Вид защиты
IP20

Connection data

Vezetékcsatlakozás-technika
PUSH IN
Longueur de dénudage, raccordement nominal
9 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 14
Wire connection cross section, finely stranded, min.
0,35 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Sección del conductor, flexible con terminales tubulares DIN 46228/4, mín.
0,14 mm²
Sección del conductor, flexible con terminales tubulares DIN 46228/4, máx.
1,5 mm²
Sección de conexión del conductor, flexible, term. tub. (DIN 46228-1), min.
0,5 mm²
Sezione di collegamento cavo, flessibile, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.6 x 3.5 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
