UR20-3EM-400V-AC-CT5A

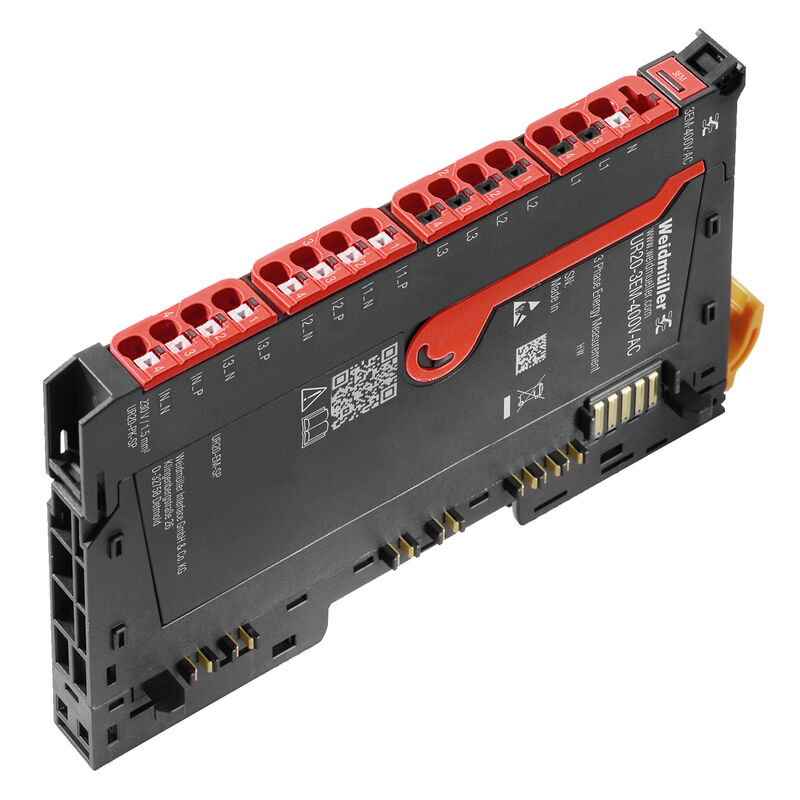

Product image
UR20-3EM-400V-AC-CT5A

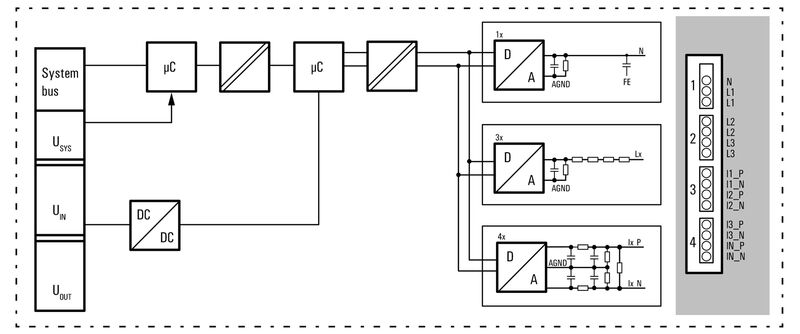

Block diagram
UR20-3EM-400V-AC-CT5A

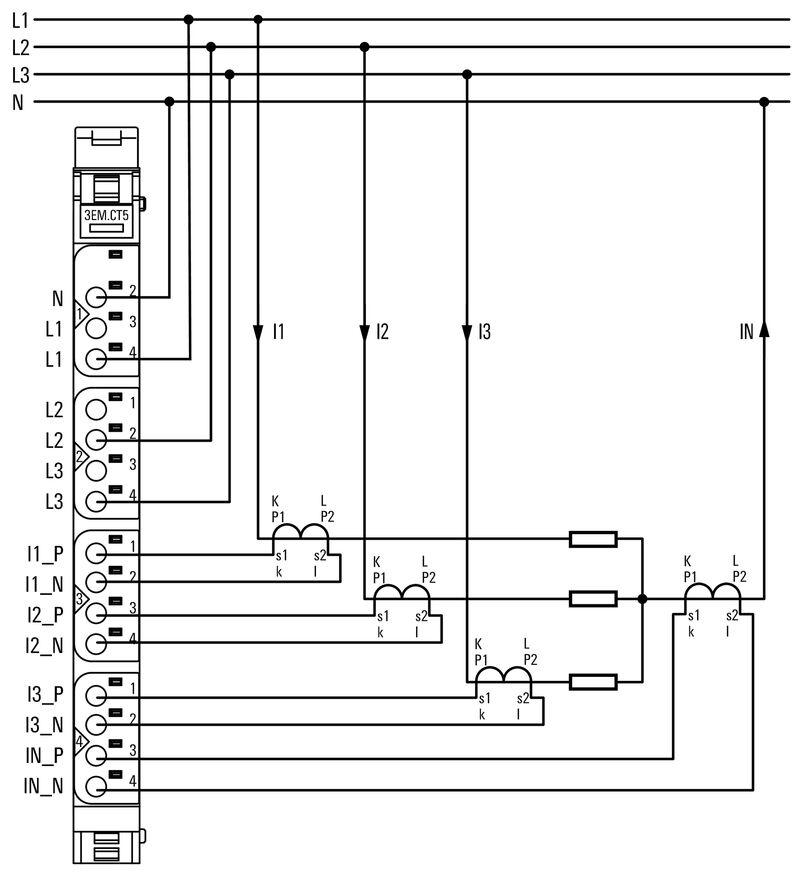

Connection diagram
UR20-3EM-400V-AC-CT5A

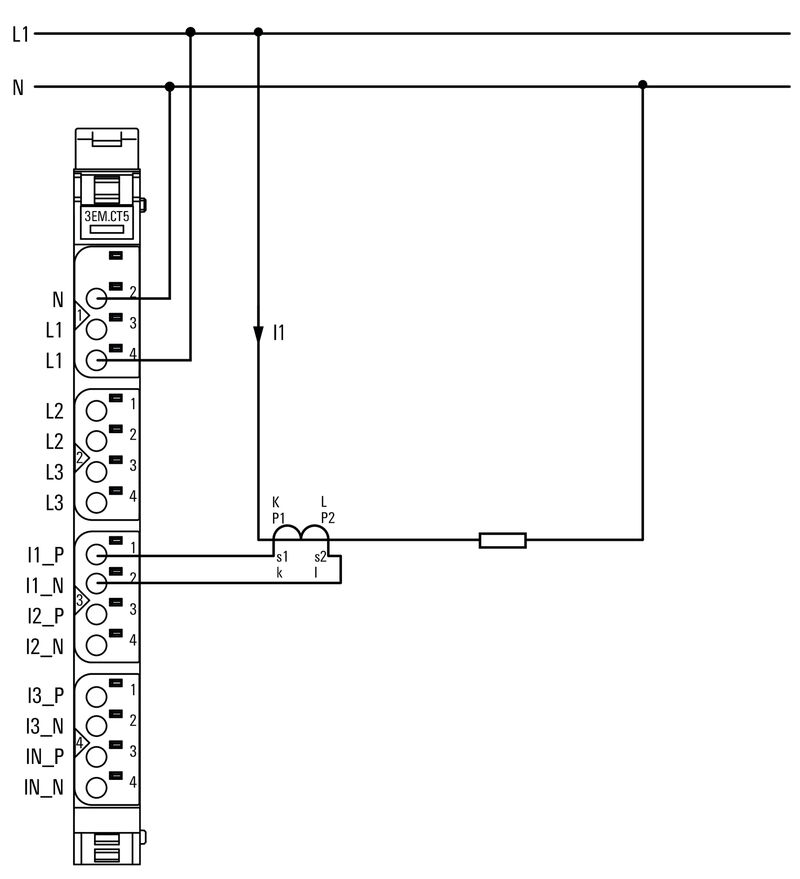

Connection diagram
UR20-3EM-400V-AC-CT5A

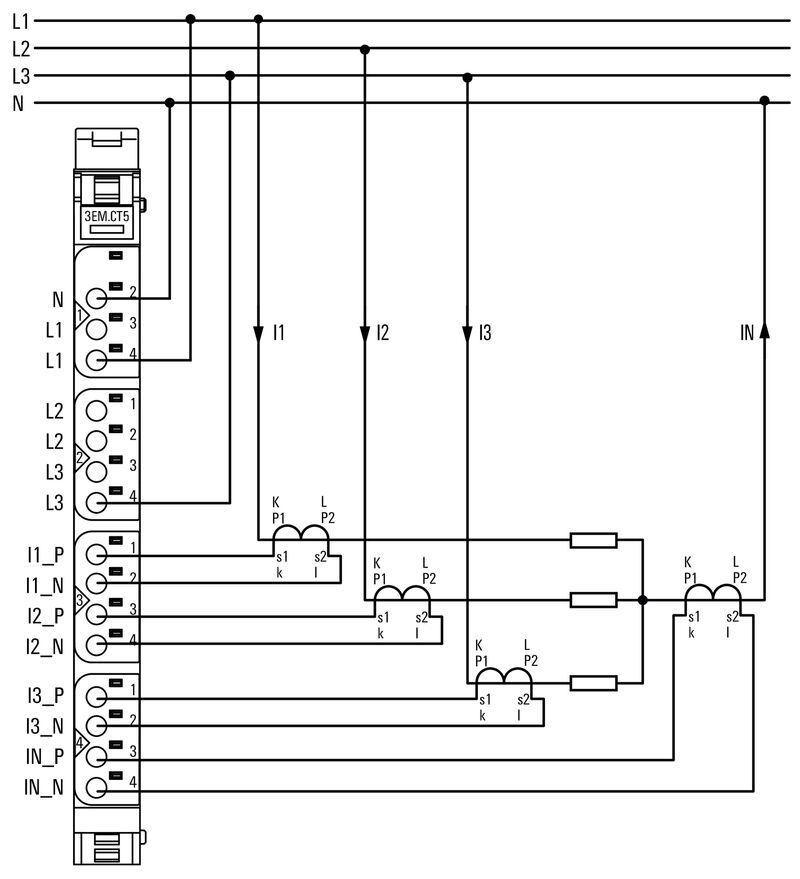

Connection diagram
UR20-3EM-400V-AC-CT5A

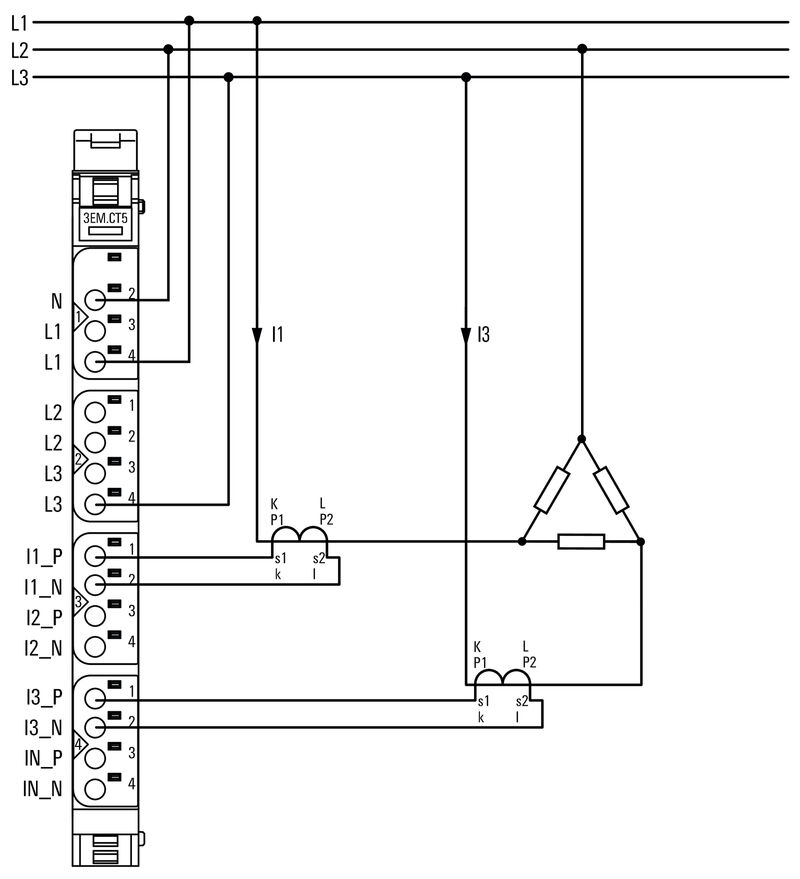

Connection diagram
UR20-3EM-400V-AC-CT5A
Explanation of abbreviations

UR20-3EM-400V-AC-CT5A

Remote I/O module, IP20

Item No. 2920840000
Open in Configurator
Download data sheet Engineering Support Software Support Product Downloads
Accessories 66 Spare parts 1 Related products 4
Osvědčení Datos generales para pedido Rozměry a hmotnosti Temperaturas Umweltanforderungen analogue inputs Connection data General data Power supply System data Classifications

Osvědčení

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

Datos generales para pedido

Version
Remote I/O module, IP20
Order No.
2920840000
Type
UR20-3EM-400V-AC-CT5A
GTIN (EAN)
4099986601710
Qty.
1 adet

Rozměry a hmotnosti

Depth
76 mm
Profondeur (pouces)
2.992 inch
Height
120 mm
Height (inches)
4.724 inch
Width
11.5 mm
Byggbredd (tum)
0.453 inch
Net weight
88 g

Temperaturas

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Umweltanforderungen

RoHS Compliance Status
Conforme con exención
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8

analogue inputs

Analysis of harmonic
up to 43rd
Category for voltage measurements
CAT III (according to IEC 61010-1), CAT II (according to IEC 61010-1) for installations with rated voltage to earth > 300 V
Connectable converter ratios
5:5
Frequency of the supply system
45…65 Hz
Individual channel diagnosis
Yes
Input impedance voltage
1.881 MΩ
Insulation
reinforced insulation
Measurement accuracy
0.25% in relation to final value (U / I)
0.5% for the calculated values
0.75% for harmonics
Measurement method
High Resolution Delta Sigma (current measurement in outer conductor)
Module diagnosis
Yes
Nominal load capacity
0…5 A AC
Number
3
Rated voltage
300 V eff AC (L-N)
520 V eff AC (L-L)
according to table I.1 of IEC 61010-1:2010/AMD1:2016/COR1:2019
Resolution
16 bit per channel (internal 24 bit)
32 bit for energy counter
Sampling rate of current measurement
Sigma Delta ADC with 1.024 MHz (bandwidth of interest from 40 Hz to 3.3 kHz)
Short-circuit protection
Yes

Connection data

Number
3
Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1.5 mm²
Wire connection cross section, finely stranded, min.
0.14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1.5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0.14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Surge voltage category
II
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from IIN (the respective power segment)
<35 mA
Current consumption from Isys, typ.
8 mA
Supply voltage
24 V DC +20 %/ -15 %
via the system bus
24V DC +20 %/-15 % (according to IEC 61131)
24V DC +30%/-25% (according to DNV GL)

System data

Connection type
PUSH IN
Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Energy measurement module
Transmission speed of system bus, max.
48 Mbit

Classifications

ETIM 8.0
EC001605
ETIM 9.0
EC001605
ETIM 10.0
EC001605
ECLASS 14.0
27-24-26-09
ECLASS 15.0
27-24-26-09
