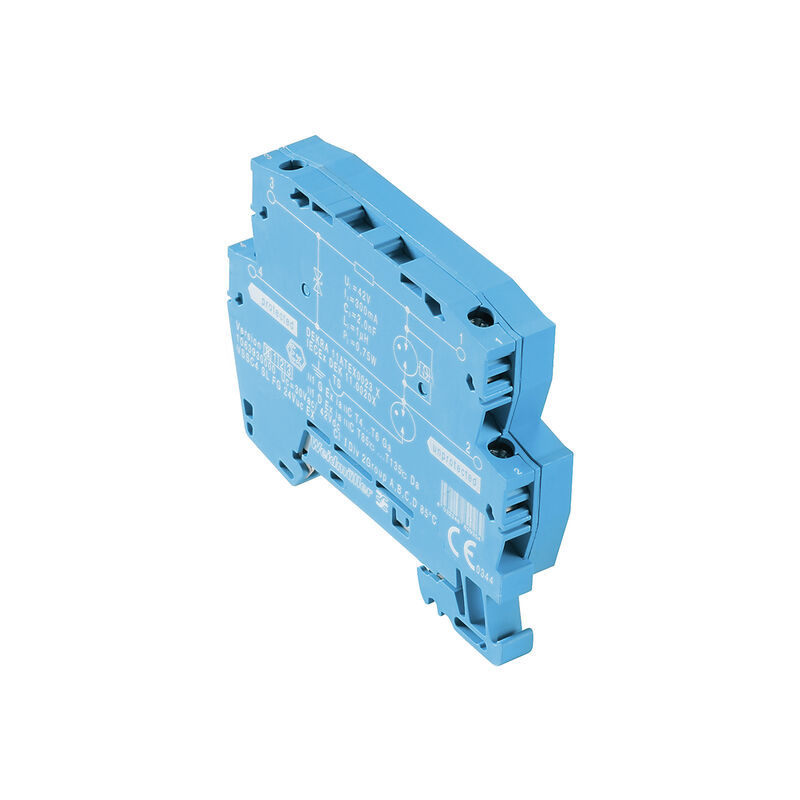

VSSC4 SL FG 48VAC/DC EX
VSSC4 SL FG 48VAC/DC EX
VSSC4 SL FG 48VAC/DC EX

VSSC4 SL FG 48VAC/DC EX

Surge protection for instrumentation and control, Surge protection for measurement and control

Product ID 1063940000
Openen in configurator
Gegevensblad downloaden Supporto ingegneristico Download dei prodotti
Toebehoren 2 Verwante producten 4
Approvals General ordering data 치수 및 중량 Temperatures Probability of failure Environmental Product Compliance Protection Ex - Data Datos nominales UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data General data Ratings IECEx/ATEX/cUL Important note Classifications Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fe64228-e403-4415-b85f-44f3a8f8bb2c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/c809b3ab-e765-499c-852e-d528779da9f7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/f2570d3e-3e62-4056-9c95-fe925a1a2b86/DAP_Master_ICON,w_80,q_80)
ROHS
Conforme

General ordering data

Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Order No.
1063940000
Type
VSSC4 SL FG 48VAC/DC EX
GTIN (EAN)
4032248829361
Qty.
5 items

치수 및 중량

Width
12,4 mm
폭 (인치)
0,488 inch
Net weight
33 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Humidity
5...96 %

Probability of failure

SIL in compliance with IEC 61508
3
MTTF
2.655 a
SFF
97,91 %
λges
43
PFH в 1*10-9 1/ч
0.9

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Protection Ex - Data

ATEX - dust labelling
II 1 D Ex ia IIIC T135 °C …T85 °C Da
ATEX - gas labelling
II 1 G Ex ia IIC T4… T6 Ga
IECEx - dust labelling
II 1 D Ex ia IIIC T135 °C …T85 °C Da
IECEx - gas labelling
II 1 G Ex ia IIC T4… T6 Ga
Input power, max. PI
0.75 W
Internal capacity, max. CI
1 nF
Internal inductance, max. LI
0 µH
Temperature class T4/135°C (-40°C ... +120 °C) li
300 mA
Temperature class T5/100°C (-40 ° C ... +85 °C) li
300 mA
Temperature class T6/85 °C (-40 °C ... +70 °C) li
300 mA

Datos nominales UL

UL certificate
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

CSA protection data

Gas groups A, B
IIC
Grupo de gas D
IIA
Innere Kapazität, max. CI
1 nF
Input-current, max. II
300 mA
Internal inductance, max. LI
0 µH
Plyn, třída C
IIB

General data

Colour
Light Blue
Isolating function
No
Mounting rail
TS 35
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
Verze
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Categoría de sobretensión
III
Grado de polución
2

Rated data IEC / EN

Courant nominal IN
300 mA
Discharge current Imax (8/20µs) GND-PE
10 kA
Discharge current Imax (8/20µs) wire-PE
10 kA
Discharge current In (8/20µs) GND-PE
2.5 kA
Lightning test current, Iimp (10/350 µs) Wire-PE
0.5 kA
Overload - failure mode
Modus 2
Prąd testu ochrony odgromowej Iimpuls (10/350 µs)
1 kA
Pulse-reset capacity
≤ 20 ms
Rated load current IL
300 mA
Signal transmission properties (-3 dB)
5.2 MHz
Spänningstålighet vid FG mot PE
≥ 500 V
Surge current-carrying capacity C2
2.5 kA 8/20 µs 5 kV 1.2/50 µs
Surge current-carrying capacity C3
10 A 10/1000 µs
Surge current-carrying capacity D1
1 kA 10/350 μs
Tension nominale (AC)
48 V
Ток утечки, макс. (8/20 мкс)
10 kA
극 수
1
볼륨 저항
1.8 Ω 10 %

Further details of approvals

Certificado GOST
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length
10 mm
Type of connection
Schraubanschluss
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,8 Nm
Clamping range, min.
0,5 mm²
Clamping range, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection cross-section, stranded, max.
4 mm²

General data

Number of poles
1
Protection degree
IP20
Colour
Light Blue

Ratings IECEx/ATEX/cUL

ATEX - dust labelling
II 1 D Ex ia IIIC T135 °C …T85 °C Da
ATEX - gas labelling
II 1 G Ex ia IIC T4… T6 Ga
ATEX certificate
[ATEX Certificate](PDF/11ATEX0023X Iss 1 (D+E).pdf)
IEC Ex certificate
[IECEX Zertifikat](PDF/VSSC_IECEx DEK 11.0020x.pdf)
IECEx - oznaczenie pył
II 1 D Ex ia IIIC T135 °C …T85 °C Da
IECEx - Marcatura gas
II 1 G Ex ia IIC T4… T6 Ga
cUL certificate
[cUL Certificate](pdf/VSSC.PDF)

Important note

Product information
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-02
ECLASS 15.0
27-17-15-02

Tender specification sheets

Long specification

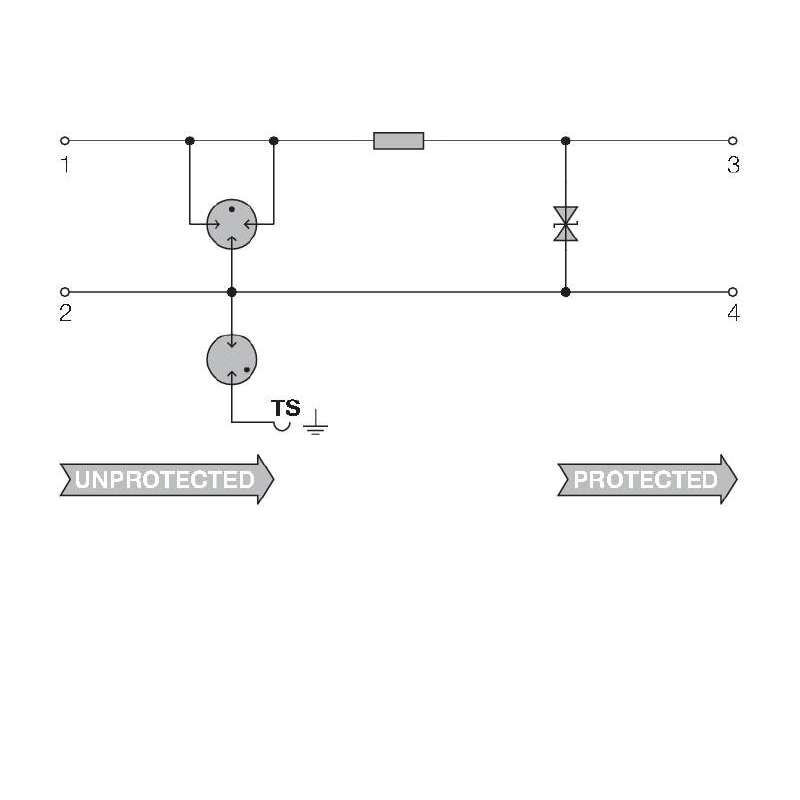

Surge protection in a one piece, 12.4 mm wide DIN rail module for two binary, potential-free signal circuits with 48 V UC. When the terminal is fitted, there is a simultaneous sparkover gap created to the high-impedance earth between the mounting rail (earth) and the reference potential (ground) of the protective switch. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked. ATEX version. Tested to Ex area ignition protection types: Ex ia IIC / Ex iaD
Short specification
Surge protection in a one piece, 12.4 mm wide DIN rail module for two binary, potential-free signal circuits. Version: 48 V UC ATEX version.
