Properties

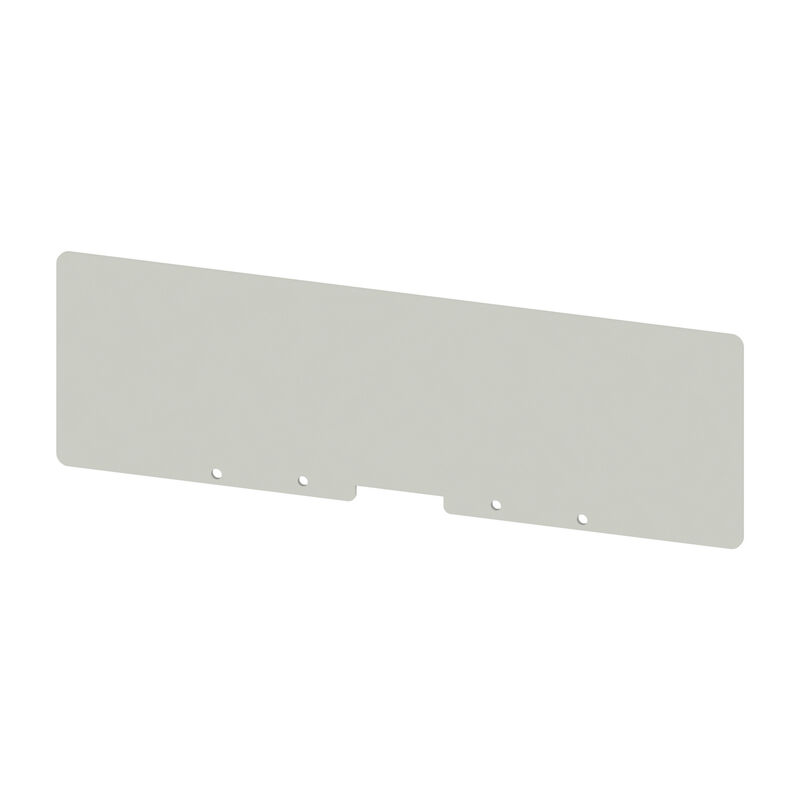

| Version | Bolt-type screw terminals, Partition plate, grey, 2 mm |
| Order No. | 1067400000 |
| Type | WTW WFF185/300 |
| GTIN (EAN) | 4008190116477 |
| Qty. | 10 items |
| Depth | 90 mm |
| Depth (inches) | 3.543 inch |
| Height | 287 mm |
| Height (inches) | 11.299 inch |
| Width | 2 mm |
| Width (inches) | 0.079 inch |
| Mounting dimension - width | 2 mm |
| Net weight | 89.5 g |
| Storage temperature | -25 °C...55 °C |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Operating temperature range, max. | 120 °C |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60192) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1067400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1067400000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1067400000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ROHS | Conform |
