Properties

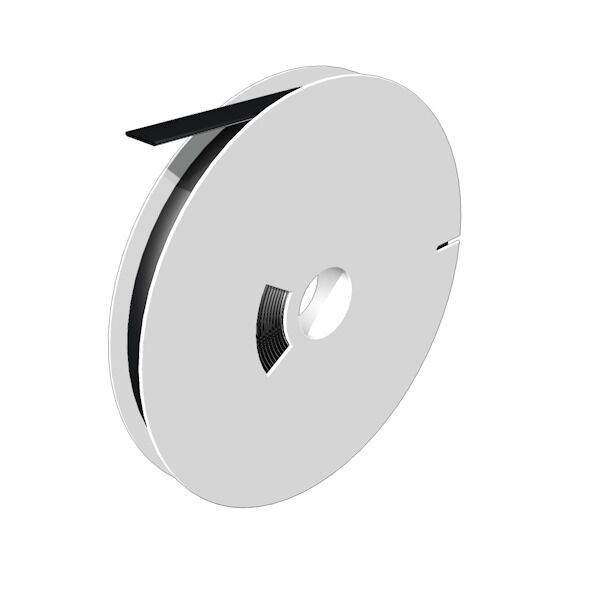

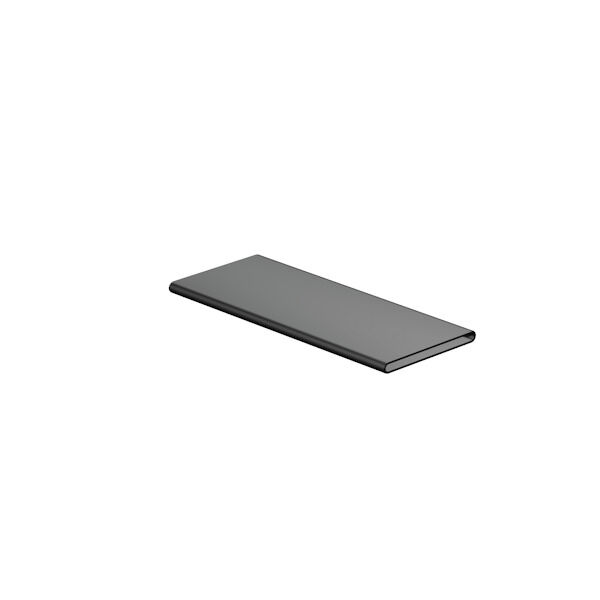

| Version | Conductor and cable markers, 6.4 - 12.7 mm, black |
| Order No. | 2518960000 |
| Type | HSS-HF 6.4-12.7 EL SW30M |
| GTIN (EAN) | 4050118531169 |
| Qty. | 1 items |
| Depth | 1.2 mm |
| Depth (inches) | 0.047 inch |
| Width | 20.9 mm |
| Width (inches) | 0.823 inch |
| Length | 30,000 mm |
| Length (inches) | 1,181.1 inch |
| Net weight | 746 g |
| Operating temperature range | -55...105 °C |
| Colour | black |
| Halogen | No |
| Length | 30,000 mm |
| Material | Polyolefine |
| Number per roll | 1 |
| Operating temperature range | -55...105 °C |
| Operating temperature range, max. | 105 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | without |
| Type of printing | neutral |
| Width | 20.9 mm |
| 6 mm² | |
| Conductor cross-section, max. | 35 mm² |
| Conductor O.D. | 6.4 - 12.7 mm |
| Conductor O.D., max. | 12.7 mm |
| Conductor O.D., min. | 6.4 mm |
| Cross-section for connected wire | 6 - 35 mm² |
| Halogen | No |
| Rate of shrinkage | 2:1 |
| Recommended shrinking temperature | 90 °C |
| Product information | External roll holder 1302920000 necessary |
| Approval/Certificate/Document of Conformity |
[NFX 70-100-1 2006 + NF X 70-100-2 2006](https://mdcop.weidmueller.com/mediadelivery/asset/900_74683)
[BS EN ISO 4589-2 1999](https://mdcop.weidmueller.com/mediadelivery/asset/900_74685) [EN 45545-2:2020](https://mdcop.weidmueller.com/mediadelivery/asset/900_257221) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2518960000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2518960000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
