ZQV 2.5N/6 GE

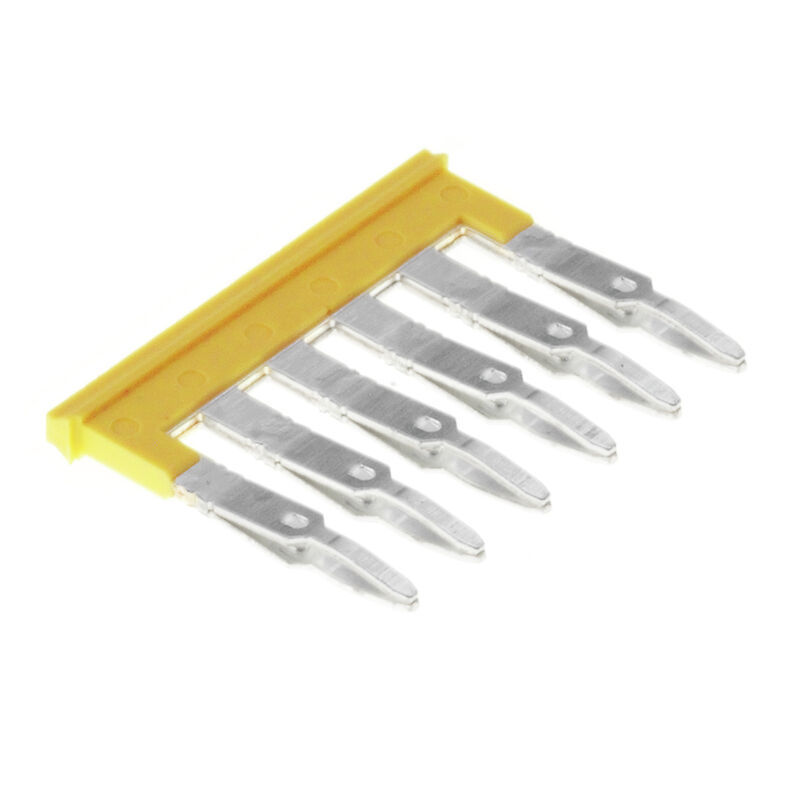

Product image

ZQV 2.5N/6 GE

Dette produkt er snart ikke længere tilgængeligt.

Alternative product: 1527630000

W-Series, Cross-connector, 24 A

Produkt ID 1693840000
Download datablad Engineering Support Product Downloads
Er tilbehør til 20 Anvendte produkter 467
Zulassungen General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Размеры General 등급 데이터 Important note Klasifikace

Zulassungen

ROHS
Konform

General ordering data

Version
W-Series, Cross-connector, 24 A
Order No.
1693840000
Type
ZQV 2.5N/6 GE
GTIN (EAN)
4008190883676
Qty.
20 Штука
Delivery status
Denna artikel kommer inte längre att finnas i framtiden.
Tillgänglig till
31.12.2021
Alternative product
[1527630000](~/p/1527630000)

Dimensions and weights

Depth
23 mm
Depth (inches)
0,906 inch
Height
29,3 mm
Height (inches)
1,154 inch
Width
2,8 mm
Breite (inch)
0,11 inch
Net weight
4 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Folyamatos üzemi hőmérséklet., min.
-60
Temperatura d'esercizio continuo, max.
130

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Material data

Basic material
Wemid
Colour
amarillo
UL 94 flammability rating
V-0

System specifications

Version
For the terminals

Additional technical data

Explosion-tested version
Yes
Installation advice
Direct mounting
Type of fixing
Plugged

Размеры

Pitch in mm (P)
5,1 mm

General

Installation advice
Direct mounting
Number of poles
6

등급 데이터

Nominal current
24 A

Important note

Product information
Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used Cross connections with >10 poles have bare cut edges ex works.

Klasifikace

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
