Ominaisuudet

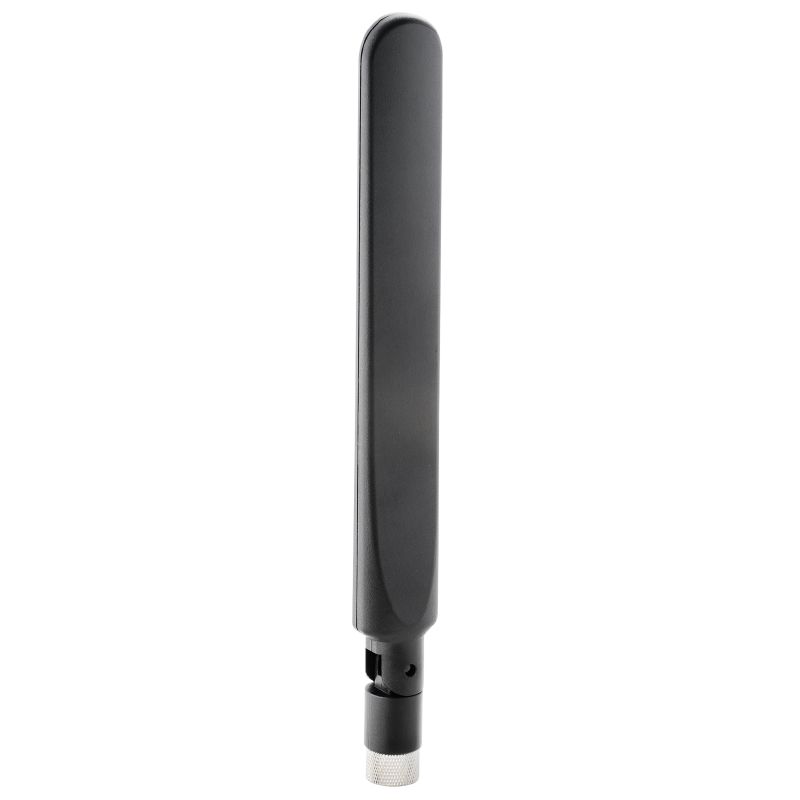

| Version | Omni-directional antenna, Cellular antenna, Up to 5G (support for frequencies below 2.7 GHz, e.g., bands n1, n2, n28), Vertical, SMA male, IP66, Impedance: 50 Ω |
| Order No. | 2788130000 |
| Type | IE-ANT-CELL-SISO-EO-SMAM |
| GTIN (EAN) | 4064675066392 |
| Qty. | 1 items |
| Height | 208 mm |
| Height (inches) | 8,189 inch |
| Net weight | 46,58 g |
| Storage temperature | -40 °C...75 °C |
| Operating temperature | -40 °C...75 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e4cad7fc-a55e-4d5c-8f05-417a6385e9b6 |
| Colour | black |
| Included in delivery | 1 x antenna |
| Antenna gain | 2 dBi |
| Composite power max. | 10 W |
| Frequency range |
690-950 MHz
1.7-3.8 GHz |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Standing wave ratio | 1.5 typical / 2.0 max |
| Type of connection | SMA male |
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | −40 °C |
| Storage temperature, max. | 75 °C |
| Storage temperature, min. | −40 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_245255) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2788130000) |
| Technical Documentation | [Radiation Pattern](https://mdcop.weidmueller.com/mediadelivery/asset/900_246617) |
| User Documentation | [Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_229291) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001698 |
| ETIM 7.0 | EC001698 |
| ETIM 8.0 | EC001698 |
| ETIM 9.0 | EC001698 |
| ECLASS 9.1 | 19-07-01-90 |
| ECLASS 10.0 | 19-07-01-07 |
| ECLASS 11.0 | 19-07-01-07 |
| ECLASS 12.0 | 19-07-01-07 |
| ECLASS 13.0 | 19-07-01-07 |
| ECLASS 14.0 | 19-07-01-07 |
| ROHS | Conform |
