Ominaisuudet

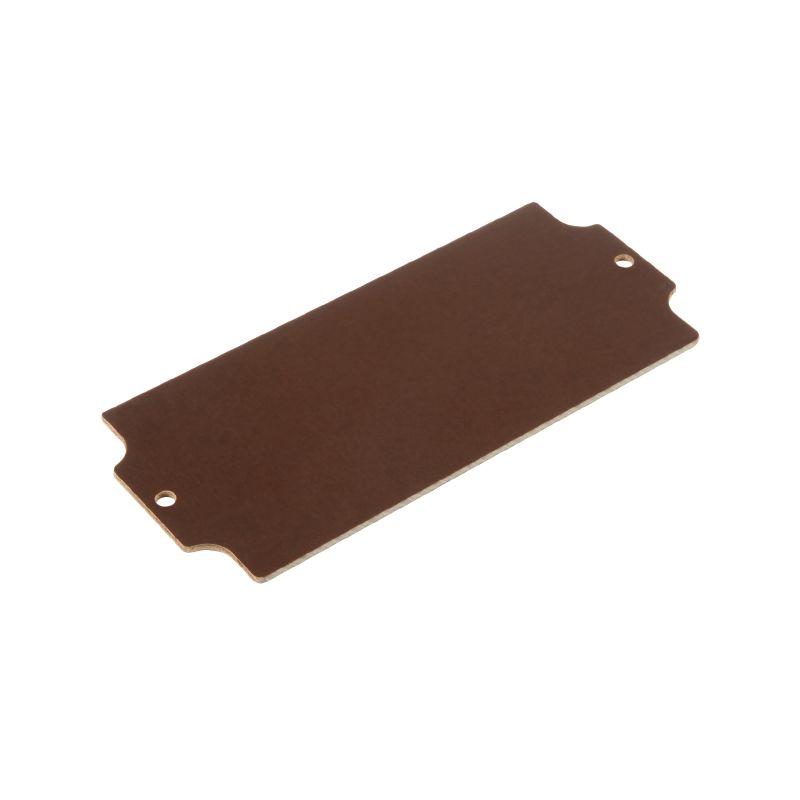

| Version | Klippon POK (polyester empty enclosure), Mounting plate, Height: 64 mm, Width: 148.5 mm, Depth: 1.5 mm, Material: Sheet steel, galvanized, Miscellaneous, silver |
| Order No. | 9510680000 |
| Type | POK MOPL 0816 |
| GTIN (EAN) | 4008190498191 |
| Qty. | 1 items |
| Depth | 1,5 mm |
| Depth (inches) | 0,059 inch |
| Height | 64 mm |
| Height (inches) | 2,52 inch |
| Width | 148,5 mm |
| Width (inches) | 5,846 inch |
| Mounting dimension - width | 139 mm |
| Net weight | 26 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Sheet steel, galvanized |
| Material thickness | 1,5 mm |
| Surface finish | Miscellaneous |
| Type of fixing | when screwed in |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_77019) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9510680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9510680000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Conform |
Lisävarusteet
-
Tuotteen tunnus:8000003891VPE:20 items
Rail, TS 15, Width: 147 mm, without slot, Steel, galvanic zinc plated and passivated
Enclosure Systems and ComponentsPlastic enclosuresKlippon® POKAccessories - Klippon® POKKlippon® POK terminal railsTS 15
On lisävaruste
-
Tuotteen tunnus:1305830000VPE:1 items
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 160 mm, Depth: 56 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
-
Tuotteen tunnus:1306020000VPE:1 items
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 160 mm, Depth: 56 mm, Material: Glass fibre-reinforced polyester, untreated, polished, black
Enclosure Systems and ComponentsPlastic enclosuresKlippon® POKKlippon® POK 081606 - 75 x 160 x 56 mm
