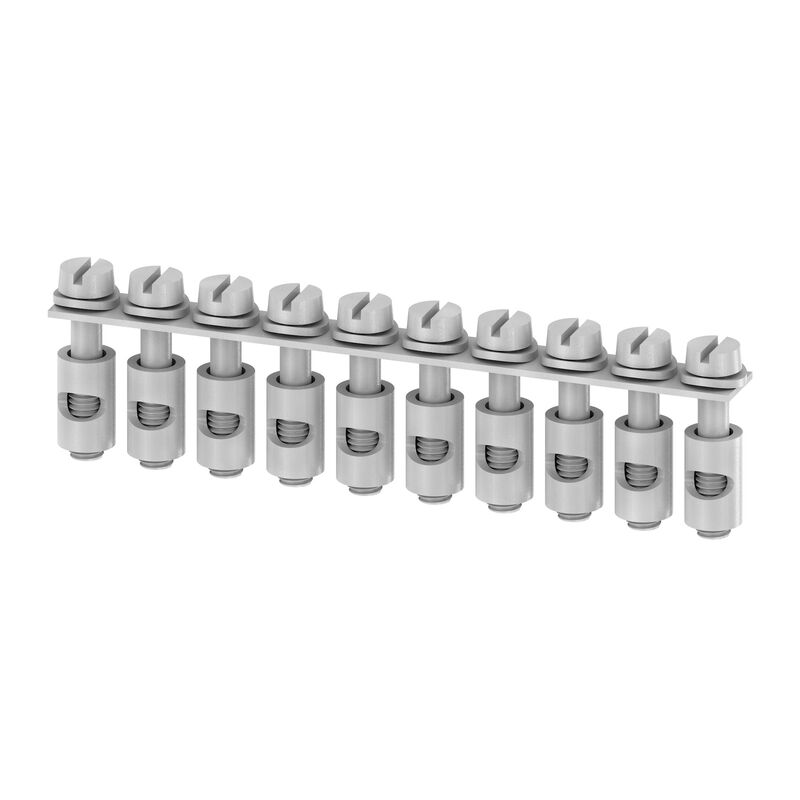

Q 10 SAK2.5

Q 10 SAK2.5

Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 10, Pitch in mm (P): 6.00, Insulated: No, Width: 60.6 mm

Product ID 0368700000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 1 Verwante producten 467
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications ytterligare tekniska data Dimensions Allmänt Rating data Product images Classifications

Approvals

ROHS
Conform

General ordering data

Verze
Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 10, Pitch in mm (P): 6.00, Insulated: No, Width: 60.6 mm
Číslo objednávky
0368700000
Typ
Q 10 SAK2.5
GTIN (EAN)
4008190107796
Кол.
20 items

Dimensions and weights

Hloubka
20,5 mm
Depth (inches)
0,807 inch
Výška
6 mm
Výška (v palcích)
0,236 inch
Šířka
60,6 mm
Width (inches)
2,386 inch
Net weight
17,5 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
合规，无例外
REACH SVHC
No SVHC above 0.1 wt%

Material data

기본 재질
CuSn
Цветовой код
grey

System specifications

버전
for cross-connection link

ytterligare tekniska data

Вид крепления
when screwed in
Проверенное на взрывозащищенность исполнение
No
Указание по установке
Direct mounting

Dimensions

Шаг в мм (P)
6 mm

Allmänt

Installation advice
Direktmontage
Number of poles
10

Rating data

Nominal current
24 A

Product images

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
