Ominaisuudet

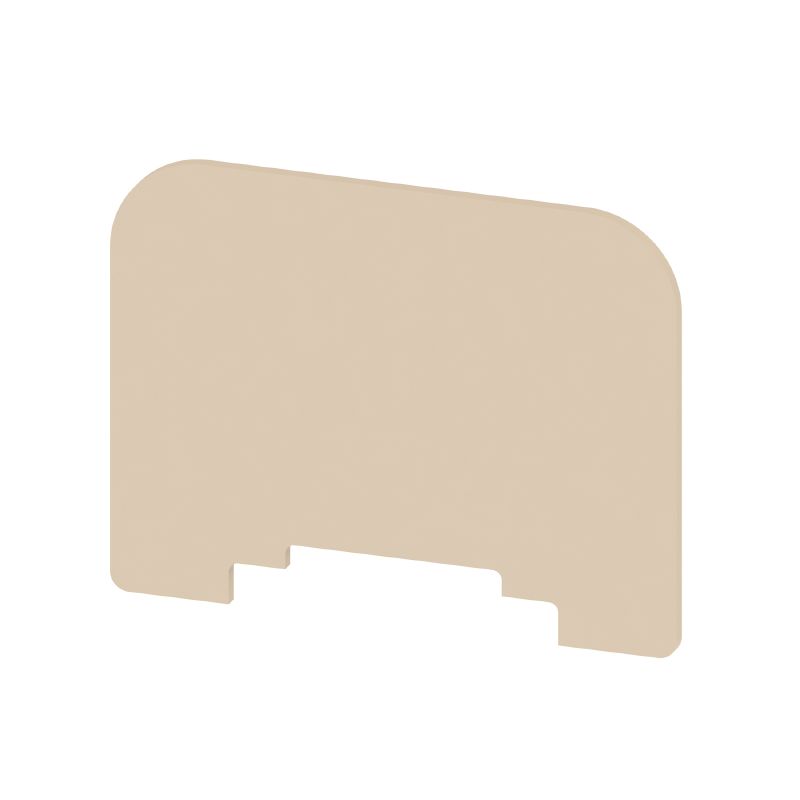

| Version | Partition plate (terminal), beige, Height: 60.2 mm, Width: 1.5 mm, V-2, PA 66 |
| Order No. | 1263160000 |
| Type | TW SAK4-10 |
| GTIN (EAN) | 4008190112943 |
| Qty. | 20 items |
| Depth | 46,7 mm |
| Depth (inches) | 1,839 inch |
| Height | 60,2 mm |
| Height (inches) | 2,37 inch |
| Width | 1,5 mm |
| Width (inches) | 0,059 inch |
| Net weight | 4,3 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | Intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1263160000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
