Ominaisuudet

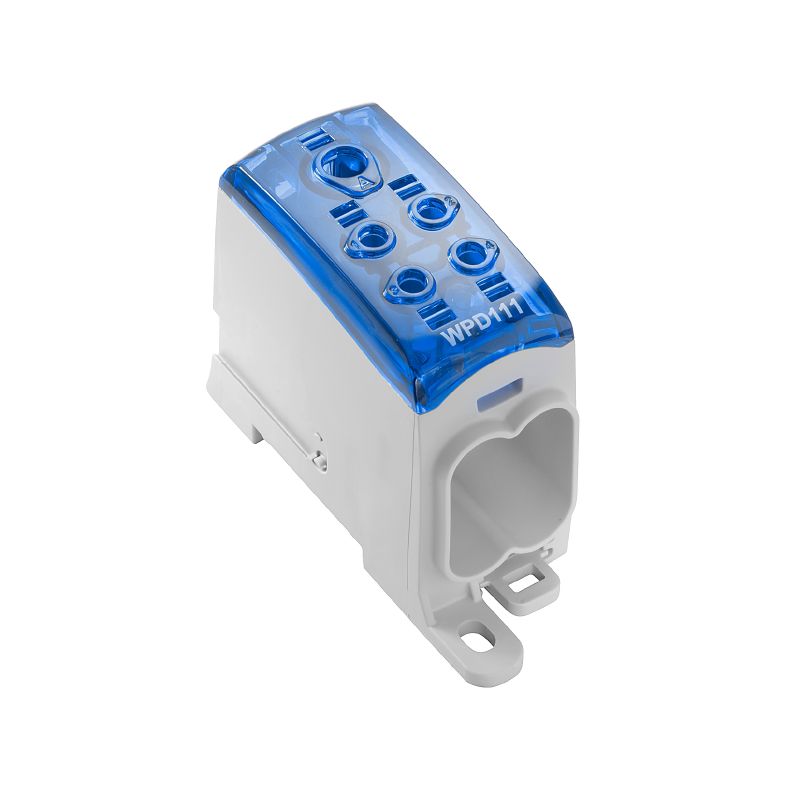

| Version | Potential distributor terminal, Screw connection, blue, 95 mm², 232 A, 1000 V, Number of connections: 5, Number of levels: 1, TS 35, Mounting plate, V-0, Wemid |
| Order No. | 2603800000 |
| Type | WPD 111 1X95/4X35 BL |
| GTIN (EAN) | 4050118681277 |
| Qty. | 1 items |
| Depth | 69,4 mm |
| Depth (inches) | 2,732 inch |
| Height | 105 mm |
| Height (inches) | 4,134 inch |
| Width | 36,6 mm |
| Width (inches) | 1,441 inch |
| Net weight | 240 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2 |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version | Screw connection |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 5 |
| Levels cross-connected internally | No |
| Rail |
TS 35
Mounting plate |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Terminal rail / mounting plate |
| Open sides | closed |
| Snap-on | Yes |
| Type of mounting |
Snap-on
Direct mounting |
| Connection type, additional connection | Screw connection |
| Connection cross-section, stranded, max. | 95 mm² |
| Connection direction | on side |
| Number of connections | 5 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 70 mm² |
| Wire connection cross-section, solid core, max. | 95 mm² |
| Installation advice | Terminal rail / mounting plate |
| Number of poles | 1 |
| Rail |
TS 35
Mounting plate |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 95 mm² |
| Rated voltage | 1 000 V |
| Rated AC voltage | 1 000 V |
| Rated DC voltage | 1 500 V |
| Rated current | 232 A |
| Standards | IEC 60947-7-1 |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Product information | The socket complies with flammability class V-2 according to UL94. |
| Approval/Certificate/Document of Conformity |
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89230)
[VDE Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153698) [UL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_307044) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_252889) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2603800000) |
| User Documentation |
[Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919)
[Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
| Certificate no. (cULus) | E511333 |
