Ominaisuudet
| Version | Z-series, Accessories, End plate, Partition plate |
| Order No. | 1608800000 |

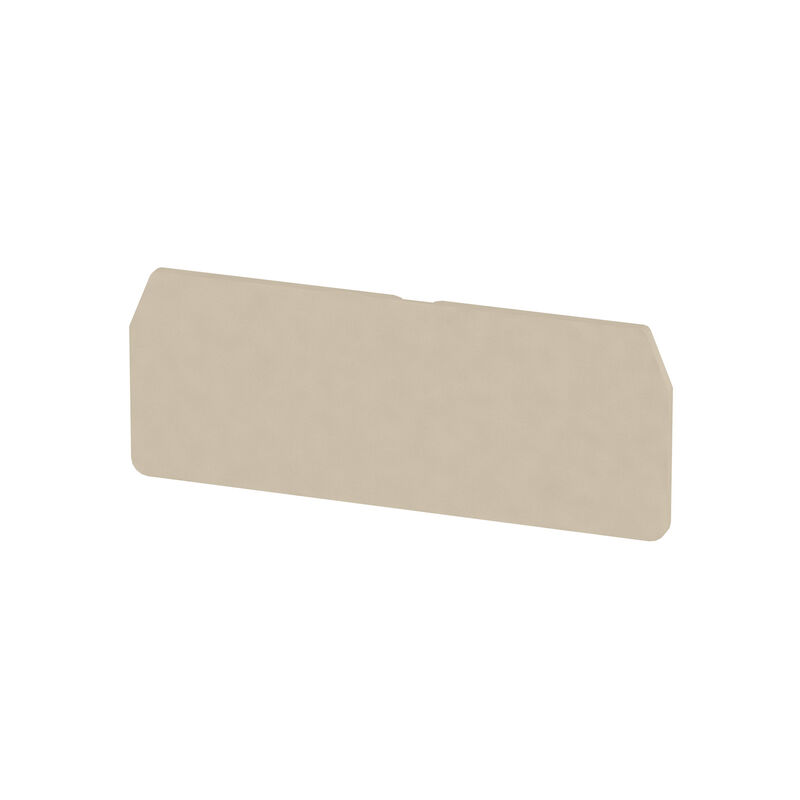

| Type | ZAP/TW 3 |
| GTIN (EAN) | 4008190190927 |
| Qty. | 50 items |
| Depth | 30,6 mm |
| Depth (inches) | 1,205 inch |
| Height | 79,05 mm |
| Height (inches) | 3,112 inch |
| Width | 2 mm |
| Width (inches) | 0,079 inch |
| Net weight | 3,7 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62275) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1608800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1608800000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
