Ominaisuudet

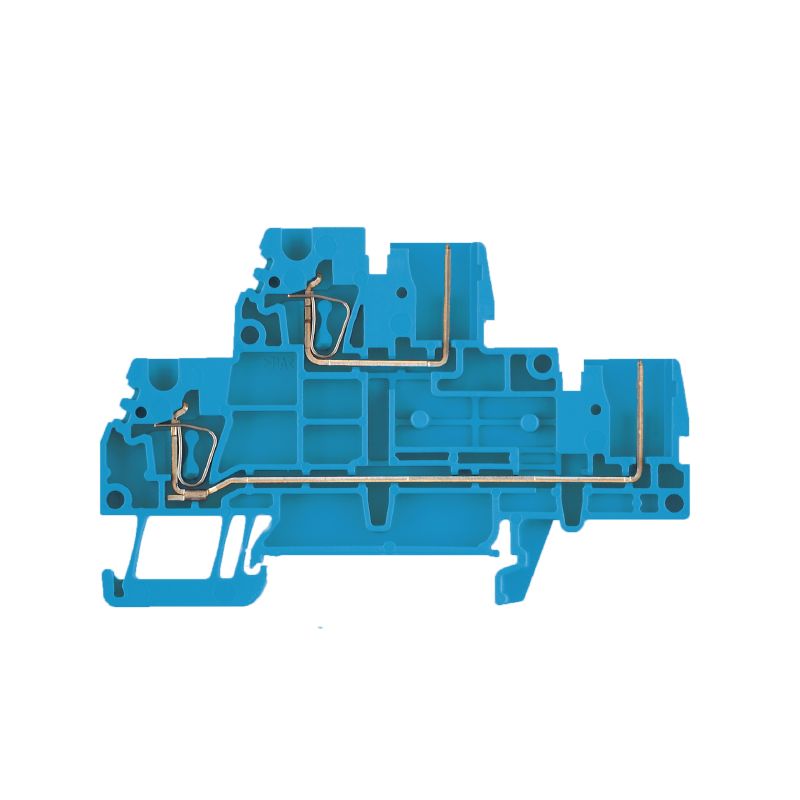

| Version | Z-series, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection |
| Order No. | 1348970000 |
| Type | ZDT 2.5/2 BL |
| GTIN (EAN) | 4050118153101 |
| Qty. | 50 items |
| Depth | 52 mm |
| Depth (inches) | 2,047 inch |
| Depth including DIN rail | 52,5 mm |
| Height | 80,5 mm |
| Height (inches) | 3,169 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 9,67 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Version |
2 tension-clamp connections - 2 plug-in connections
pluggable |
| End cover plate required | Yes |
| Number of potentials | 2 |
| Number of levels | 2 |
| Number of clamping points per level | 4 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| Explosion-tested version | No |
| Open sides | right |
| Type of mounting | Snap-on |
| Connection direction | top |
| Connection type, additional connection | Tension-clamp connection |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,13 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A2 |
| Number of connections | 4 |
| Stripping length | 10 mm |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate number (cCSAus) | 154685-1460993 |
| Current size C (cCSAus) | 20 A |
| Current size D (cCSAus) | 5 A |
| Voltage size C (cCSAus) | 300 V |
| Voltage size D (cCSAus) | 600 V |
| Wire cross section max. (cCSAusX) | 12 AWG |
| Wire cross section min. (cCSAusX) | 26 AWG |
| Rail | TS 35 |
| Standards |
IEC 61984
In accordance with IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 500 V |
| Max. voltage of clamp support & pluggable system | 690 V |
| Rated DC voltage | 500 V |
| Rated current | 24 A |
| Current at maximum wires | 24 A |
| Standards |
IEC 61984
In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Current size C (cURus) | 20 A |
| Current size D (cURus) | 5 A |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 600 V |
| Approval/Certificate/Document of Conformity |
[CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_185121)
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_185122) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36860) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_211634) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1348970000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1348970000) |
| User Documentation |
[Usage of terminals in EXi atmospheres](https://mdcop.weidmueller.com/mediadelivery/asset/900_73881)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-17 |
| ECLASS 14.0 | 27-25-01-17 |
| Approvals |      |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
