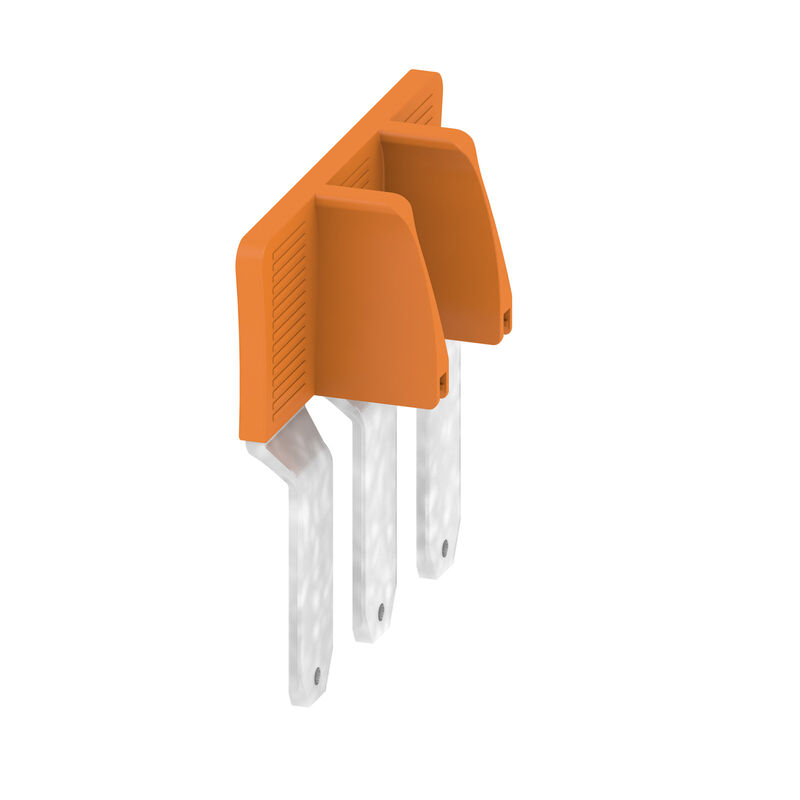

ZQV 150/185N/3

Cross-connector (terminal), Plugged, Number of poles: 3, Pitch in mm (P): 34.00, Insulated: Yes, 232 A, orange

Tuotteen tunnus 2728850000

Version	Cross-connector (terminal), Plugged, Number of poles: 3, Pitch in mm (P): 34.00, Insulated: Yes, 232 A, orange
Order No.	2728850000
Type	ZQV 150/185N/3
GTIN (EAN)	4050118801149
Qty.	5 items

Net weight

134,344 g

Storage temperature	-25 °C...55 °C
Operating temperature	-60 °C...130 °C

REACH SVHC

Pitch in mm (P)

34 mm

Number of poles

Rated voltage	400 V
Rated current	232 A

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304960)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2728850000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
