Photovoltaics, Switch, Switch disconnector, 600 V AC, 40 A, 4 pole, Manual switch

Item No. 3103150000
Download data sheet Engineering Support Product Downloads
Related products 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Interrupteur d'interruption du chargement Classifications Tender specification sheets

Approvals

Homologaciones
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Versión
Photovoltaics, Switch, Switch disconnector, 600 V AC, 40 A, 4 pole, Manual switch
Código
3103150000
Tipo
AC SB M 40A 4POL CG 06KV
GTIN (EAN)
4099987148351
Qty.
1 items

Dimensions and weights

Profundidad
121.1 mm
Depth (inches)
4.768 inch
Altura
165 mm
Height (inches)
6.496 inch
Anchura
140 mm
Width (inches)
5.512 inch
Net weight
529 g

Temperatures

Temperatura ambiente
-25 °C…55 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Tipo de protección
IP66

Interrupteur d'interruption du chargement

Anzahl der Kontakte als Schließer
4
Connection type
Screw connection
Jmenovitý průsečíkový nadproud
240 A
Mechanical endurance class
M2 (10000)
Nominal current
40 A
Nominal voltage
800 V
Number of breaking operation cycles at rated current
1500
Number of contacts as NC contact
0
Rated mainly active load-breaking current
40 A
Rated peak withstand current
10 kA
Rated short-circuit making current
500 A
Short Circuit Interrupt Capability
10 kA
Voltage type
AC

Classifications

ETIM 8.0
EC000216
ETIM 9.0
EC004830
ETIM 10.0
EC004830
ECLASS 14.0
27-07-02-03
ECLASS 15.0
27-07-02-03

Tender specification sheets

Long specification

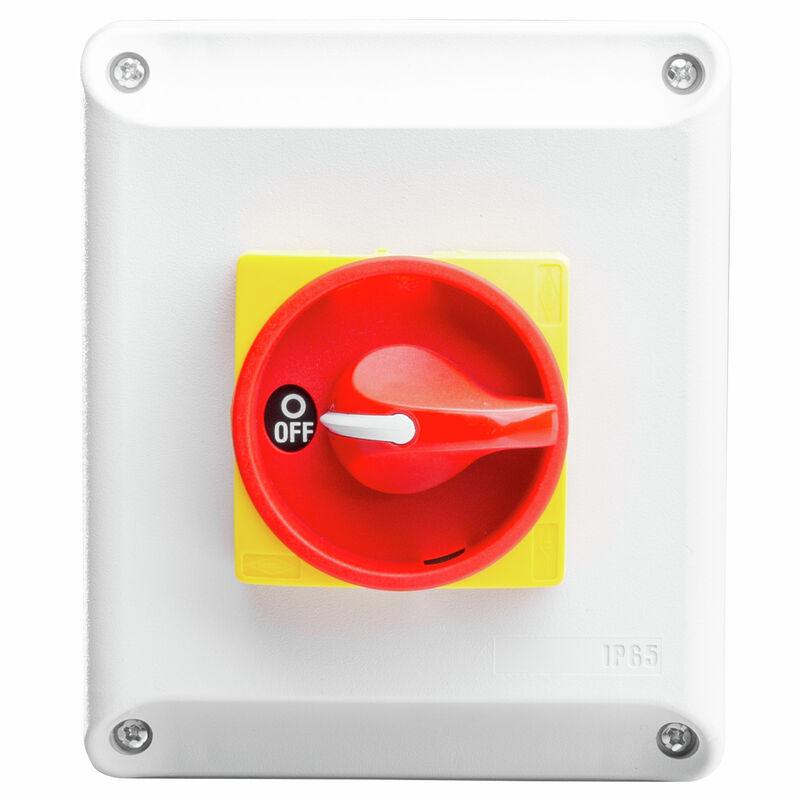

Load break Switch in polyester housing.
Suitable for disconnection on the AC side.

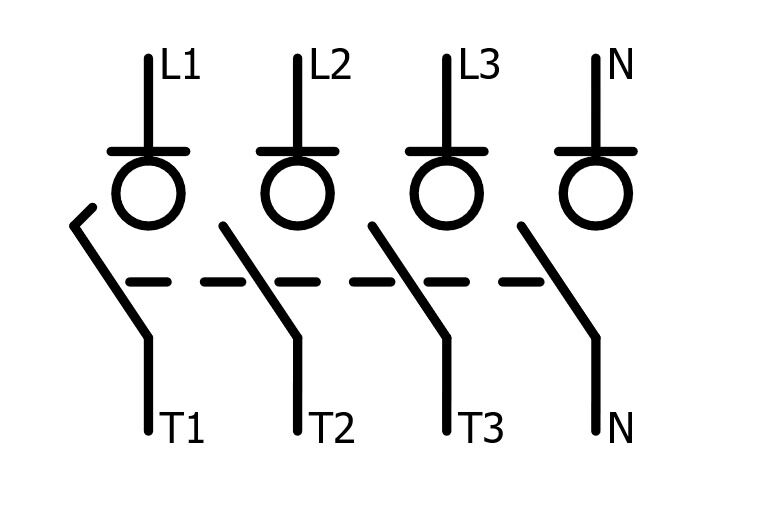

Number of poles: 4
Rated operational current (Ie) (Ie):
- according to IEC (AC-21): 40 A
Rated operational voltage (Ue):
- according to IEC: 690 V

Suitability for use:
Emergency Stop Switch: Yes
Main Switch: Yes

Number of contacts normally open: 4
Number of contacts normally closed: 0
Number of switching positions: 2

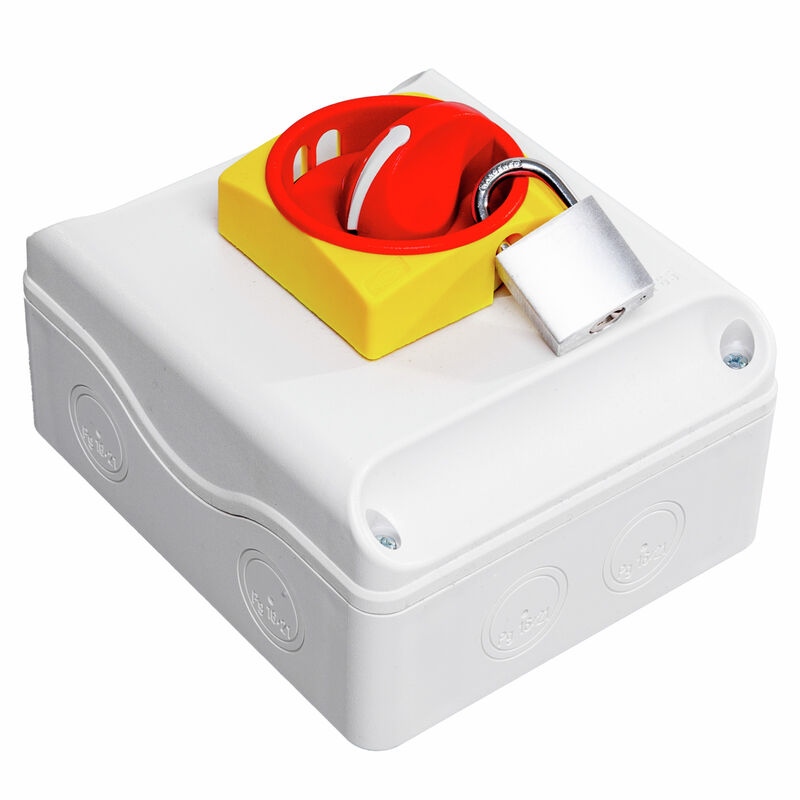

Lockable: Yes

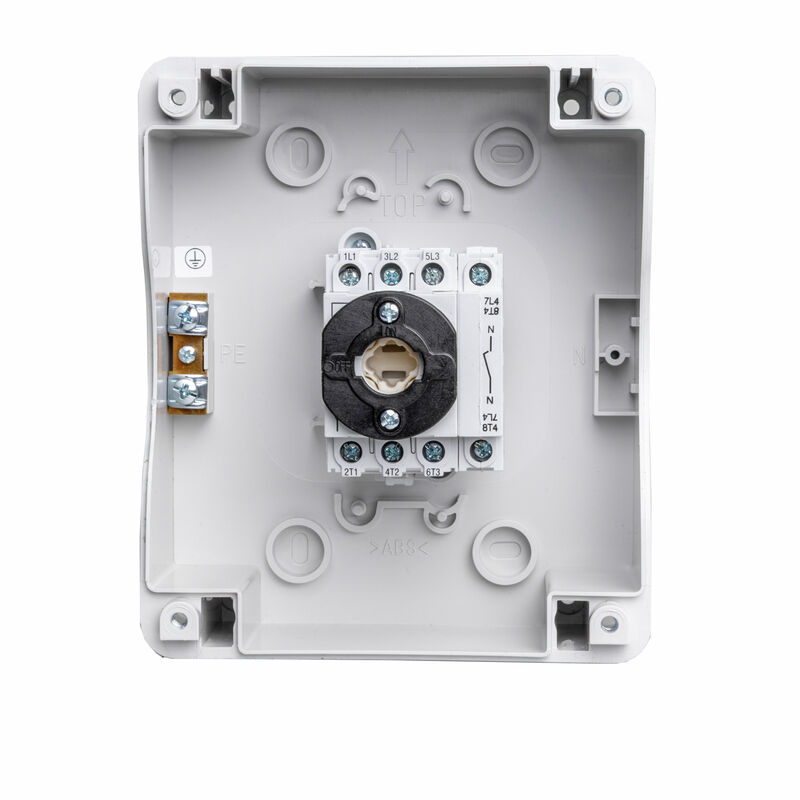

The switch is mounted using 4 screws.
Protection class (IP): 65

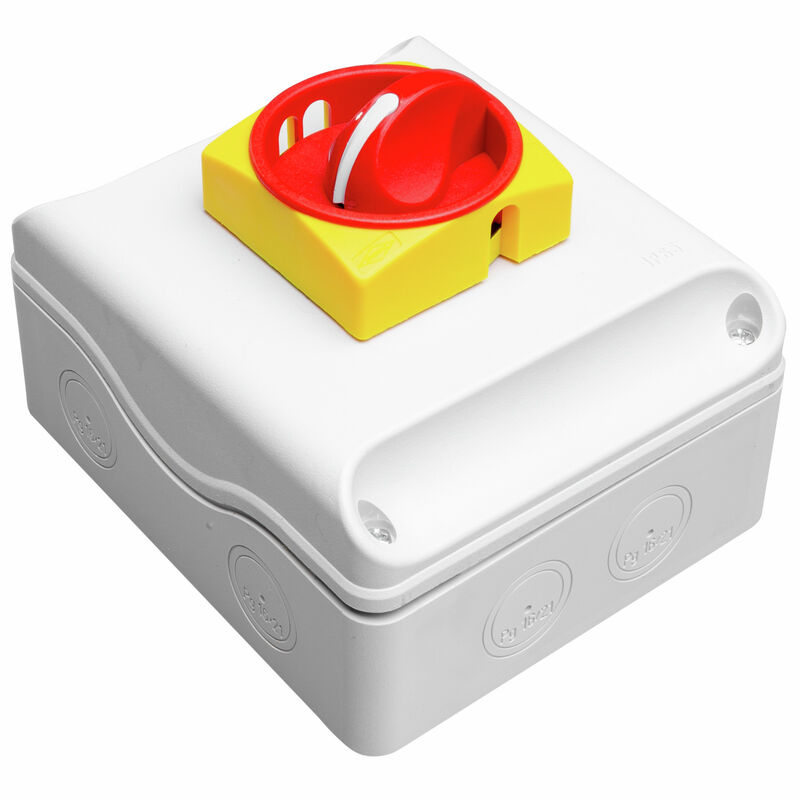

Polyester housing with knockouts for cable glands PG 16/21.
Dimensions HxWxD: 165x140x121 mm.

Approved according to Low-voltage Switchgear and Controlgear: IEC 60947-3, DIN VDE 0660 Part 107 (EN 60947-3)
