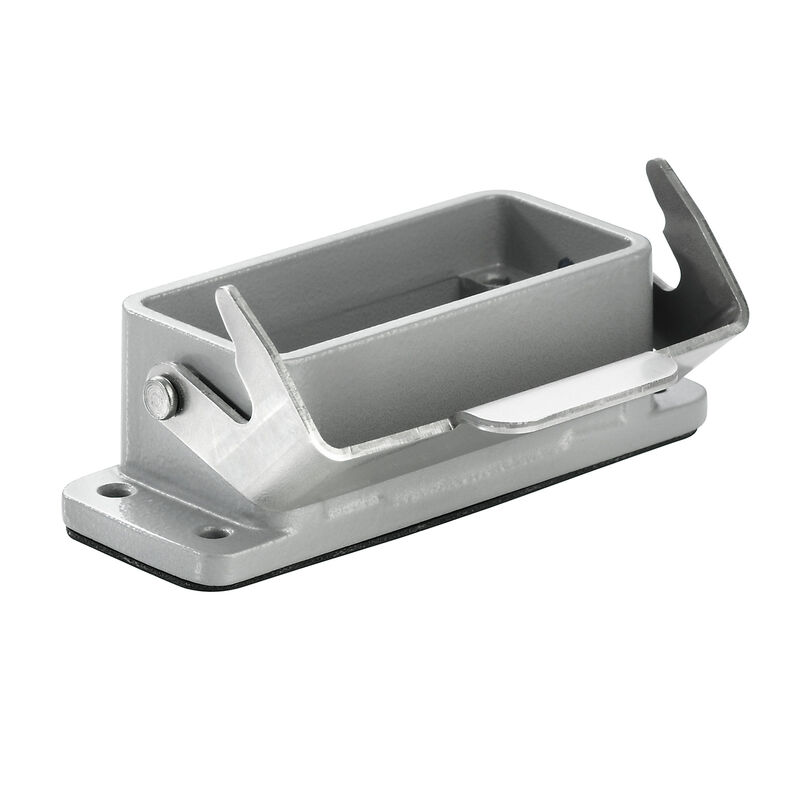

HDC 10A ALU SL
HDC 10A ALU SL

HDC 10A ALU SL

HDC enclosures, Installation size: 2, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, Standard, Size of cable entries: none

Product ID 1021450000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 1 Verwante producten 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 2, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, Standard, Size of cable entries: none
Order No.
1021450000
Type
HDC 10A ALU SL
GTIN (EAN)
4032248734962
Qty.
1 items

Dimensions and weights

Depth
84 mm
Depth (inches)
3,307 inch
Height
26 mm
Height (inches)
1,024 inch
Width
52,5 mm
Width (inches)
2,067 inch
Mounting dimension - height
17,5 mm
Mounting dimension - width
70 mm
Net weight
69 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

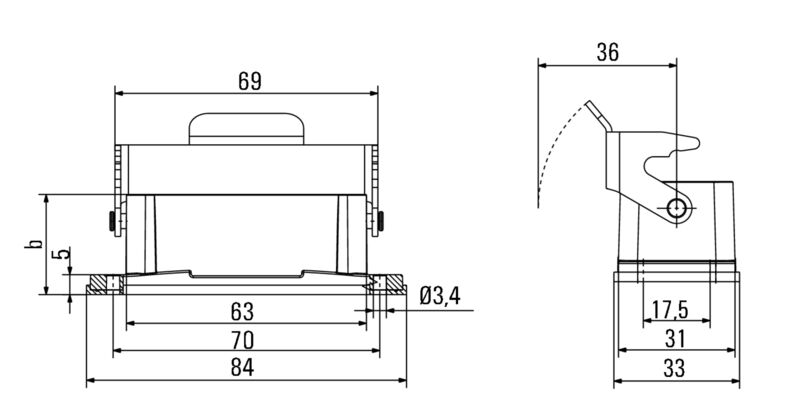

Dimensions

Anchura capota C
29,5 mm
C1 alap szélessége
33 mm
Cable entry
No
Distancia entre agujeros longitud A2
70 mm
Lunghezza, custodie
63 mm
wysokość cokołu B1
5 mm
하우징 B의 높이
26 mm

General data

Skyddsklass
IP65
in plugged condition
Поверхность
Powder coating

Version

BG
2
Color (RAL)
RAL 7035
Cover
without cover
Diseño
Standard
Entrada de cable
No
Indicado para ModuPlug®
No
Junta
NBR
Number of cable glands
0
Número de entradas de cable en la parte lateral
0
Size of cable entries
none
Tamaño de instalación
2
Tightening torque
0,5 Nm
Tipo
Bulkhead (feed-through)
Tipo de enclavamiento
End-locking clamp
Top part/bottom part/lid
lower part
Versión, cajas
Bulkhead housing
Versión, sistema de cierre
End-locking clamp, lower side

Important note

Product information
When mounting the housings, make sure that the flat gasket is correctly seated.

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
