S2CD-THR 3.50/32/90LF 3.2SN BK BX
Product image

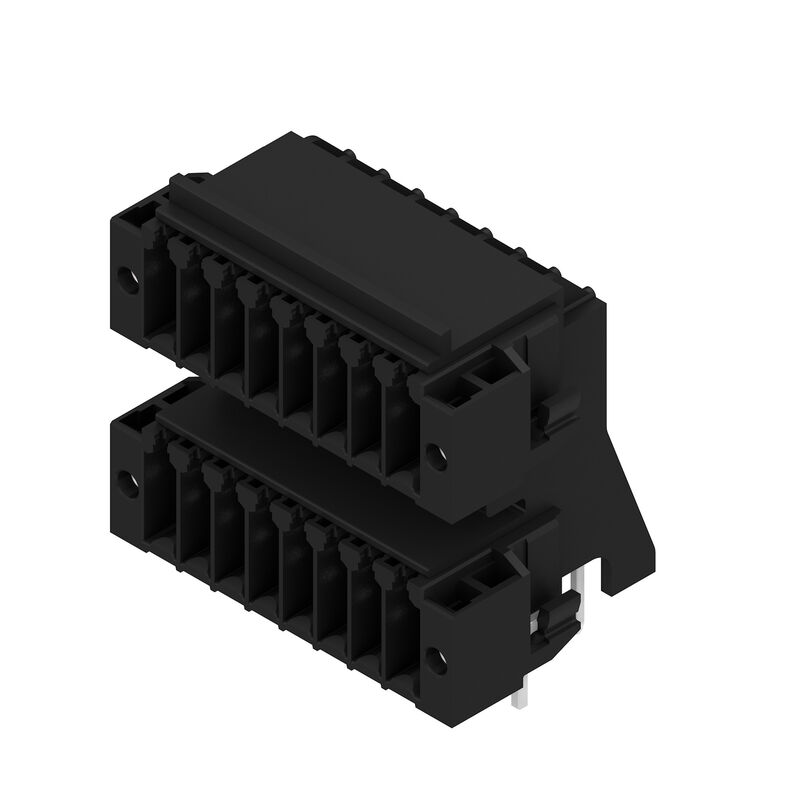

S2CD-THR 3.50/32/90LF 3.2SN BK BX
Product image

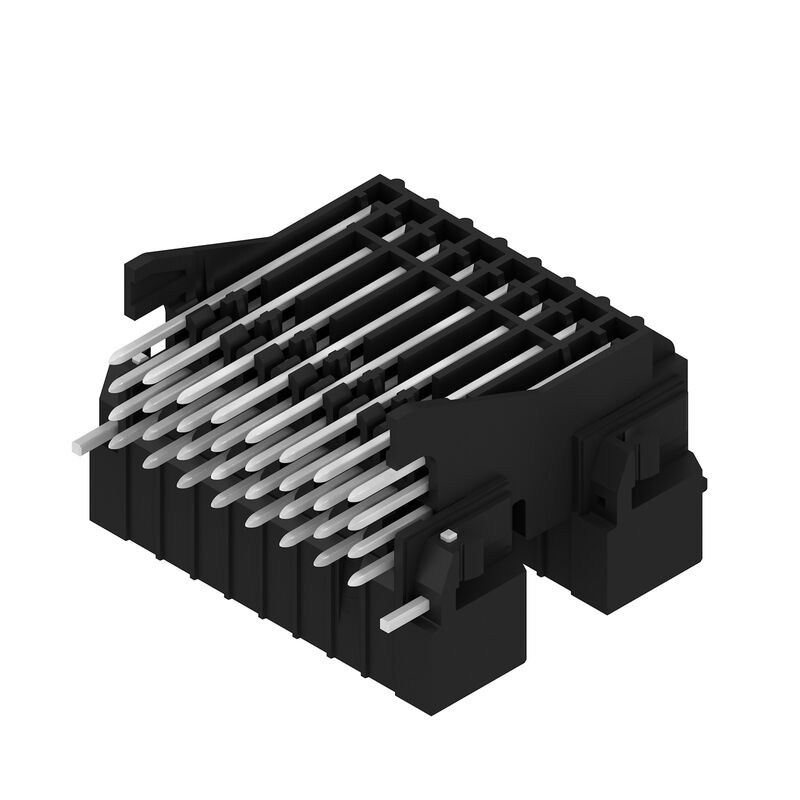

S2CD-THR 3.50/32/90LF 3.2SN BK BX
Dimensional drawing

S2CD-THR 3.50/32/90LF 3.2SN BK BX

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 32, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box

Produkt ID 1357970000
Download datablad Engineering Support Product Downloads
Tilbehør 2 Er et modstykke til 4 Anvendte produkter 9
Dopuszczenia General ordering data Dimensions and weights 환경 제품 규정 준수 시스템 사양 Dati del materiale Névleges adatok IEC szerint Dati di dimensionamento secondo CSA Rated data acc. to UL 1059 패키징 Viktig hänvisningstext Classifications

Dopuszczenia

인증
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Версия
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 32, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Art.nr.
1357970000
Typ
S2CD-THR 3.50/32/90LF 3.2SN BK BX
GTIN (EAN)
4050118160925
Množství
20 Styk
Product data
IEC: 200 V / 7.9 A
UL: 150 V / 9.5 A
Packaging
Box

Dimensions and weights

깊이
24,4 mm
Depth (inches)
0,961 inch
Höjd
35 mm
Bygghöjd (tum)
1,378 inch
Höjd lägstbyggande
31,8 mm
너비
35 mm
Width (inches)
1,378 inch
Net weight
16,72 g

환경 제품 규정 준수

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

시스템 사양

Product family
OMNIMATE 시그널 - 시리즈 B2C/S2C 3.50 - 2층
Type of connection
Kretskortanslutning
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
90°
Number of poles
32
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Lötstift-Abmessungen
d = 1.0 mm
Octagonal
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,1 mm
Template aperture diameter
1,9 mm
L1 in mm
24,5 mm
L1 in inches
0,959 "
Pin series quantity
4
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Can be coded
Yes

Dati del materiale

Isoleringsmaterial
LCP GF
Färgkod
svart
Färgtabell (jämförbar)
RAL 9011
Insulating material group
IIIb
Komparativní index sledování (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...5 µm Sn matt
Layer structure of plug contact
2...5 µm Sn / 1...3 µm Ni
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-40 °C
Temperature range, installation, max.
120 °C

Névleges adatok IEC szerint

tested acc. to standard
IEC 60664-1
IEC 61984
Märkström, min. antal poler (Tu=20°C)
7,9 A
Rated current, max. number of poles (Tu=20°C)
5 A
Märkström, min. antal poler (Tu=40°C)
6,8 A
Rated current, max. number of poles (Tu=40°C)
5 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
200 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
100 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
1,5 kV
Short-time withstand current resistance
3 x 1s with 80 A

Dati di dimensionamento secondo CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
50 V
Rated voltage (Use group C / CSA)
50 V
Rated voltage (Use group D / CSA)
150 V
Rated current (Use group B / CSA)
5 A
Rated current (Use group C / CSA)
9,5 A
Jmenovitý proud (aplikační skupina D / CSA)
9,5 A
Referencia para valores de homologación
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
150 V
Jmenovité napětí (aplikační skupina C / UL 1059)
50 V
Nennspannung (Use group D / UL 1059)
50 V
Rated current (Use group B / UL 1059)
9,5 A
Rated current (Use group C / UL 1059)
9,5 A
Rated current (Use group D / UL 1059)
9,5 A
Referencia para valores de homologación
Specifications are maximum values, details - see approval certificate.

패키징

Packaging
박스
VPE length
179 mm
VPE width
98 mm
VPE height
53 mm

Viktig hänvisningstext

IPC-konformitet
Konformitet: Produkterna utvecklas, tillverkas och levereras i enlighet med internationellt erkända standarder och normer, och uppfyller de egenskaper som garanteras i databladet resp. har designegenskaper i enlighet med IPC-A-610 "Klass 2". Övriga anspråk gällande produkterna kan bedömas på begäran.
Uwagi
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
