VSTVI/0,5-1,0
VSTVI/0,5-1,0

VSTVI/0,5-1,0

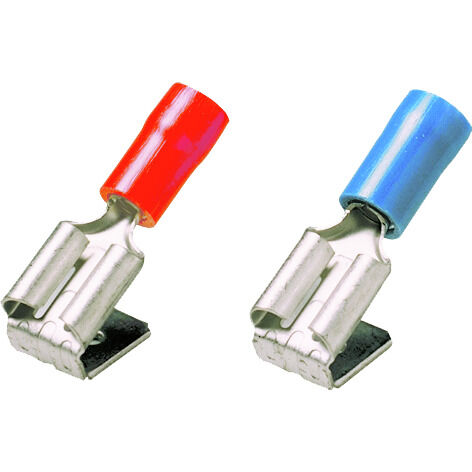

cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red

Produkt ID 1491770000
Download datablad Produktdownloads Engineering-support
Tilbehør 3 Er tilbehør til 2 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Connectors Classifications

Approvals

ROHS
Conform

General ordering data

Version
cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²,red
Order No.
1491770000
Type
VSTVI/0,5-1,0
GTIN (EAN)
4050118301465
Qty.
100 Styk

Dimensions and weights

Net weight
1,25 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3

Connectors

Conductor cross-section
1 mm²
Conductor cross-section, max.
1 mm²
Conductor cross-section, min.
0,5 mm²
Identification colour
red
Insulation
Available
Partially insulated

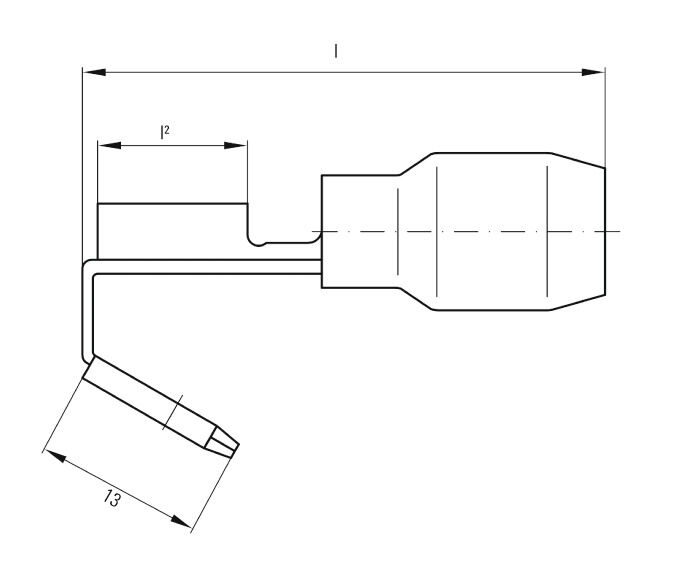

Length 1 (I1)
23,9 mm
Length 3 (I3)
8,2 mm
Material/plastic
PVC
Plug-in density (d3)
0,8 mm
Plug-in width (d2)
6,3 mm

Classifications

ETIM 8.0
EC000516
ETIM 9.0
EC000516
ETIM 10.0
EC000516
ECLASS 14.0
27-44-03-92
ECLASS 15.0
27-44-03-92
