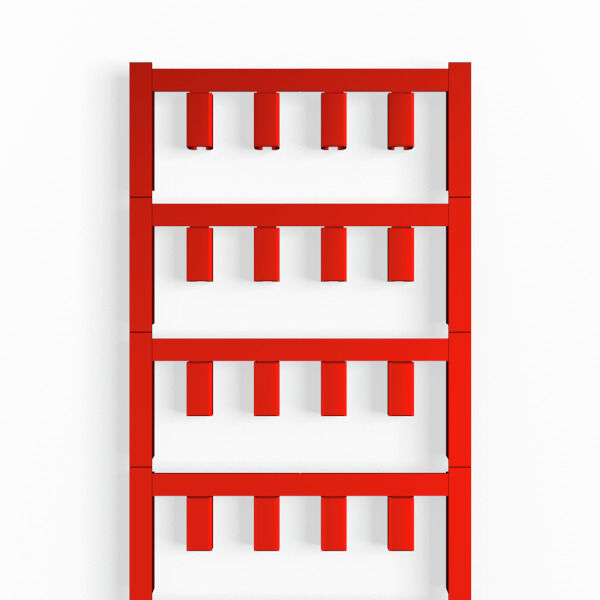

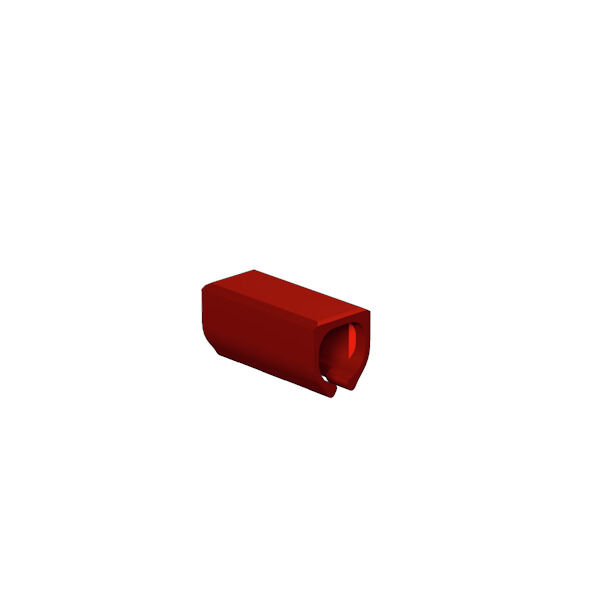

SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, red

Product ID 1746030003
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix, Conductor and cable markers, 3.6 - 6 mm, 12 x 5.7 mm, red
Order No.
1746030003
Type
VT SF 4/12 MC NE RT V0
GTIN (EAN)
4008190986377
Qty.
192 items

Dimensions and weights

Depth
6,1 mm
Depth (inches)
0,24 inch
Height
12 mm
Height (inches)
0,472 inch
Width
5,7 mm
Width (inches)
0,224 inch
Net weight
0,64 g

Temperatures

Operating temperature range
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.004 kg CO2 eq.

General data

Alogeni
No
Anchura
5,7 mm
Couleur
red
Grado inflamabilidad según UL 94
V-0
Liczba oznaczników w opakowaniu
  • Form of supply:
    MultiCard
Material colour according to resistance code
2
Materiale di base
Polyamide 66
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Type of printing
neutral
Wielkość pola opisowego
12 x 5.7 mm
Количество маркировочных элементов на комбинацию
1 MultiCard = Conductor and cable markers
Рекомендованные отрасли промышленности
Transportation
Machinery
совместимый принтер
[PRINTJET CONNECT](~/p/2715590000)
작동 온도 범위
-50...120 °C

Conductor and cable markers

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
2,5 mm²
Conductor O.D., max.
6 mm
Conductor O.D., min.
3,6 mm
Cross-section for connected wire
2.5 - 4 mm²
Halogen
No
Leiteraußendurchmesser
3.6 - 6 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
