ZT 2.5/4AN/4 SW

ZT 2.5/4AN/4 SW

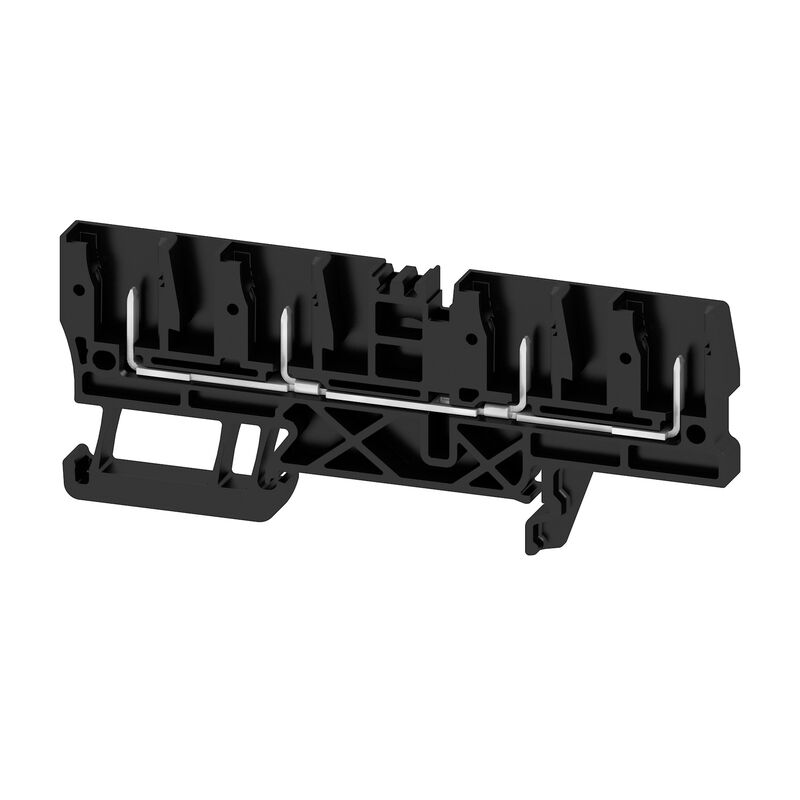

Pluggable terminal, Tension-clamp connection, dark beige, black, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35

Product ID 2716230000
Gegevensblad downloaden Productdownloads
Verwante producten 161
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications 추가 기술 데이터 클램프용 전선(추가 결선) 클램프용 컨덕터(정격 결선) Общие сведения Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Pluggable terminal, Tension-clamp connection, dark beige, black, 2.5 mm², 24 A, 500 V, Number of connections: 4, Number of levels: 1, TS 35
Order No.
2716230000
Type
ZT 2.5/4AN/4 SW
GTIN (EAN)
4050118773217
CPZ
50 items

Dimensions and weights

Depth
34,5 mm
Depth (inches)
1,358 inch
Height
85,5 mm
Height (inches)
3,366 inch
Width
5,1 mm
Width (inches)
0,201 inch
Net weight
8,96 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material básico
Wemid
Color
dark beige
black
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
전위 수
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE-Anschluss
No
Mounting rail
TS 35
Fonction PE
No

추가 기술 데이터

Explosion-tested version
Нет
Tipo de montaje
Snap-on

클램프용 전선(추가 결선)

Connection type, additional connection
플러그형

클램프용 컨덕터(정격 결선)

Clamping range, max.
4 mm²
Clamping range, min.
0,13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
상단
Number of connections
4
Stripping length
10 mm
Type of connection
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 26
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
0 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

Общие сведения

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 26
Wire connection cross section AWG, min.
AWG 30

Rating data

Sección nominal
2,5 mm²
Rated voltage
500 V
Tensión nominal DC
800 V
Corriente nominal
24 A
Current at maximum wires
24 A
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Pollution severity
3

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
