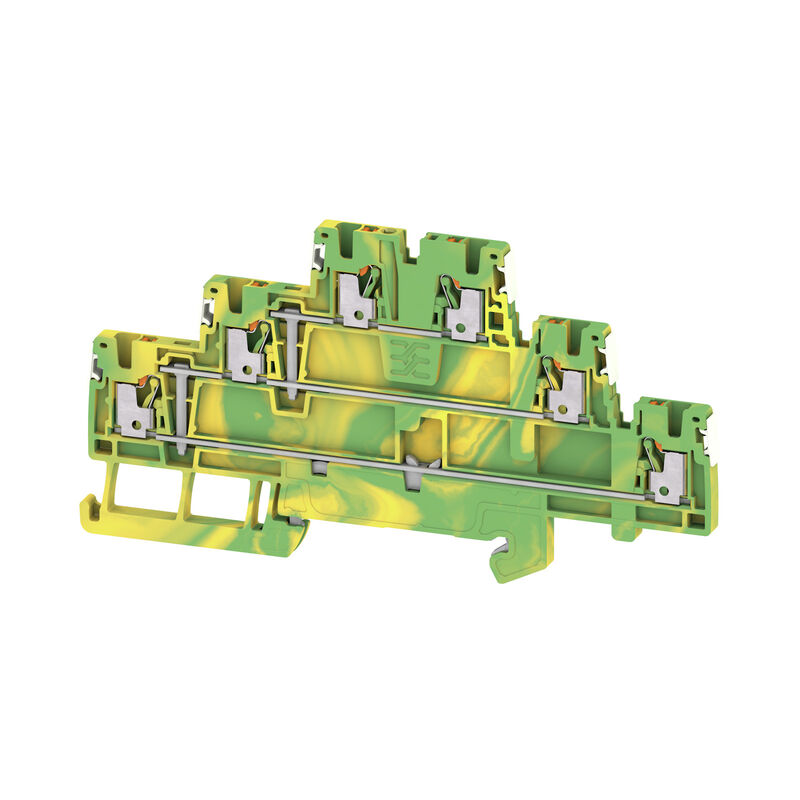

Multi-tier modular terminal, PE terminal, PUSH IN, 1.5 mm², Green/yellow

ID výrobku 2856240000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 48 İlgili ürünler 1069
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Multi-tier modular terminal, PE terminal, PUSH IN, 1.5 mm², Green/yellow
Order No.
2856240000
Type
A3T 1.5 PE DL
GTIN (EAN)
4064675534839
Qty.
50 items

Dimensions and weights

Depth
57 mm
Depth (inches)
2,244 inch
Height
106,5 mm
Height (inches)
4,193 inch
Width
3,5 mm
Width (inches)
0,138 inch
Net weight
12,643 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Grundläggande material
Wemid
Couleur
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
3
Number of clamping points per level
2
Nombre de potentiels par étage
1
Etages internes pontés
Yes
Mounting rail
TS 35
PE function
Yes
PEN function
No

Additional technical data

Explosion-tested version
Yes
Open sides
right
Snap-on
Yes
Type of fixing
Snap-on
Type of mounting
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
1,5 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
1,5 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
6
Stripping length
8 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      0,14 mm²
    • max.:
      0,75 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • min.:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • Tube length:
    • nominal:
      6 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
1,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Wire cross section max. (CSA)
14 AWG
Wire cross section min. (CSA)
26 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-2
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26

Rating data

Märkarea
1,5 mm²
Rated voltage to adjoining terminal
500 V
Märkspänning DC
500 V
Norme
IEC 60947-7-2
Volume resistance according to IEC 60947-7-x
1,83 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0 mW
Kategoria przepięciowa
III
Stopień zanieczyszczenia
3

UL rating data

Certificate No. (cURus)
E60693
Průřez vodiče max. (cURus)
14 AWG
Wire cross section min. (cURus)
26 AWG

Classifications

ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-04
ECLASS 15.0
27-25-01-04
