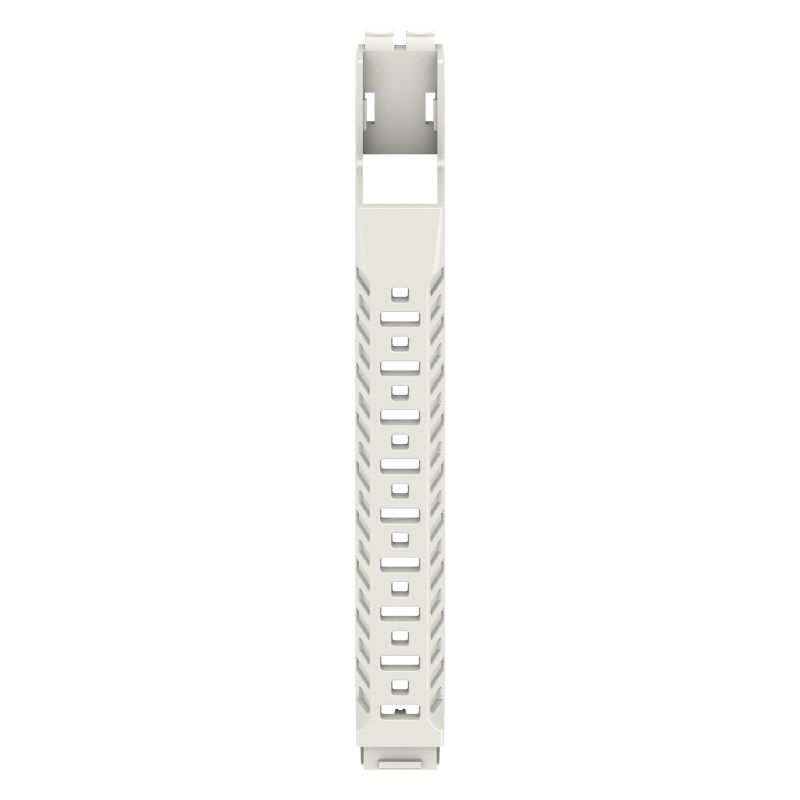

Side element, OMNIMATE Housing - series CH20M Light Grey, Side element, Width: 12.5 mm

Ürün No. 1312680000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Materialdata General data Component properties Classifications

Approvals

ROHS
Conform

General ordering data

Version
Side element, OMNIMATE Housing - series CH20M Light Grey, Side element, Width: 12.5 mm
Order No.
1312680000
Typ
CH20M12 S PSCSC LGY 2018
GTIN (EAN)
4050118120097
Qty.
14 adet

Dimensions and weights

Mélység
105,5 mm
Depth (inches)
4,154 inch
Altura
22,8 mm
Height (inches)
0,898 inch
Anchura
12,5 mm
Width (inches)
0,492 inch
Net weight
7,71 g

Temperatures

Temperatura ambiente
-25 °C…85 °C
Zakres temperatury stosowania
-40...120 ℃
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Materialdata

Classe d'infiammabilità UL 94
V-0
Comparative Tracking Index (CTI)
600 ≤ CTI
Gruppo materiali isolanti
I
Materiale di base
Plastic
Materiale isolante
PA 66 GF 30
Superficie
untreated

General data

Colabilità
No
Colori
Light Grey
Grado di protezione
IP20 in installed state
Tabella dei colori (simile)
RAL 7035

Component properties

Cut out as preperation for functional port integrated
No
Number of connection levels
1
Number of poles, max.
2
Number of ventilation openings
2
Počet slotů pro zásuvky
1

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-02
ECLASS 15.0
27-19-06-02
