HDC 07A ALU
HDC 07A ALU
Drawing
HDC 07A ALU

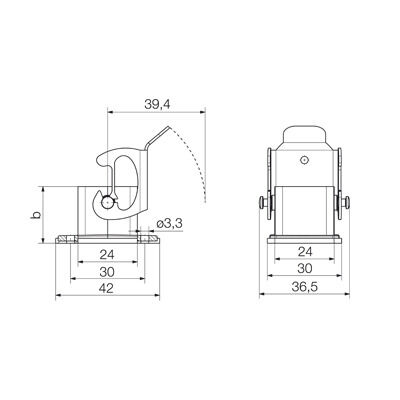

mounting cutout

HDC 07A ALU

HDC enclosures, Installation size: 1, Protection degree: IP65, in plugged condition, Bulkhead housing, Side-locking clamp on lower side, Standard, Size of cable entries: none

Ürün No. 1652410000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 aksesuarıdır 2 Münferit parçaları 4 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
cURus 证书号
E92202

General ordering data

Wersja
HDC enclosures, Installation size: 1, Protection degree: IP65, in plugged condition, Bulkhead housing, Side-locking clamp on lower side, Standard, Size of cable entries: none
Заказ №
1652410000
Typ
HDC 07A ALU
GTIN (EAN)
4008190402488
Qty.
1 adet

Dimensions and weights

깊이
60,5 mm
Depth (inches)
2,382 inch
Высота
47,3 mm
Height (inches)
1,862 inch
Szerokość
36,5 mm
Width (inches)
1,437 inch
Mounting dimension - width
30 mm
Net weight
15,84 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
2f94735a-9fba-4903-842f-4fb9aa902310
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensions

Celková délka pouzdra
25,2 mm
Hole pitch length A2
30 mm
Kabelový vstup
No
Výška pouzdra B
23 mm
Výška základny B1
3 mm
Šířka pouzdra C
24,2 mm
Šířka základny C1
30 mm

General data

Klasifikace hořlavosti UL 94
V-0
Stupeň krytí
IP65
in plugged condition

Version

BG
1
Cable entry
No
Clamp version
Side-locking clamp
Colour (RAL)
RAL 1001
Cover
without cover
Design
Standard
Design of housing
Bulkhead housing
Design of locking system
Side-locking clamp on lower side
Installation size
1
Number of cable entry on top
0
Number of cable entry sideways
0
Number of cable glands
0
Sealing
NBR
Size of cable entries
none
Suitable for ModuPlug®
No
Tightening torque
0,5 Nm
Top part/bottom part/lid
lower part
Type
Bulkhead (feed-through)

Important note

Product information
When mounting the housings, make sure that the flat gasket is correctly seated.

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
