RSV1,6 RF12/35X7.5 SW

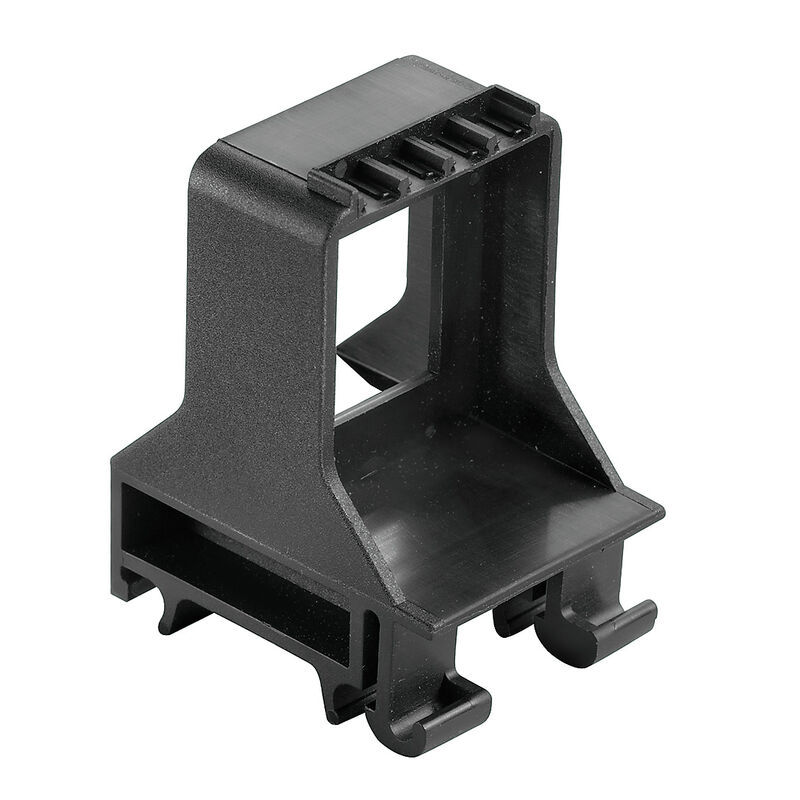

Product image
Similar to illustration
RSV1,6 RF12/35X7.5 SW
Example of use
Similar to illustration
RSV1,6 RF12/35X7.5 SW
Example of use

RSV1,6 RF12/35X7.5 SW

PCB 接插件, 附件, 固定夹脚, 黑色, 回路数: 12

N. articolo 1582940000
Download foglio dati Technická podpora Dokumenty ke stažení
Ist Zubehör von 2 Verwandte Artikel 14
Approvals Allmänna beställningsdata Dimensions and weights Termékek környezetvédelmi megfelelősége Material data Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

Allmänna beställningsdata

Version
PCB 接插件, 附件, 固定夹脚, 黑色, 回路数: 12
Order No.
1582940000
Type
RSV1,6 RF12/35X7.5 SW
GTIN (EAN)
4008190068486
Qty.
10 adet
Product data

Packaging
Box

Dimensions and weights

Net weight
15,6 g

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Material data

Insulating material
PA 66/6
Colour
black
Colour chart (similar)
RAL 9011
Contact material
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
192 mm
VPE width
135 mm
VPE height
42 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
