SAI-Y-5S B2-4 2M12
Similar to illustration
SAI-Y-5S B2-4 2M12

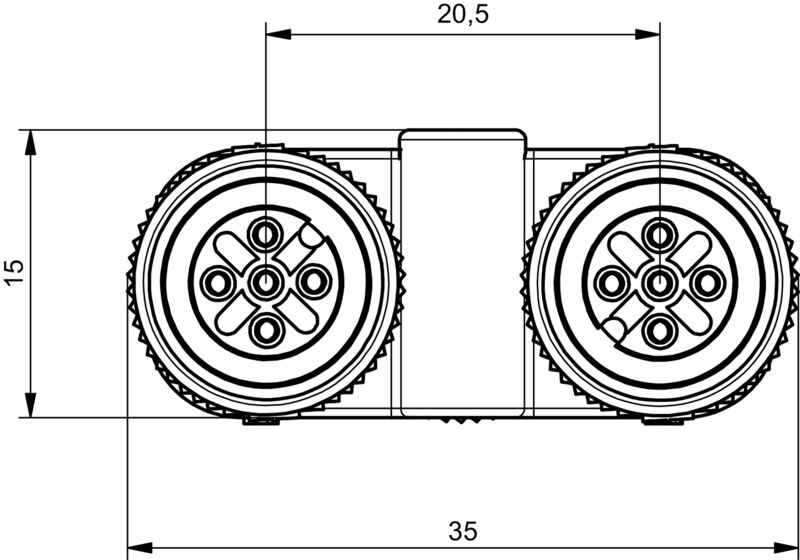

Dimensioned drawing
SAI-Y-5S B2-4 2M12

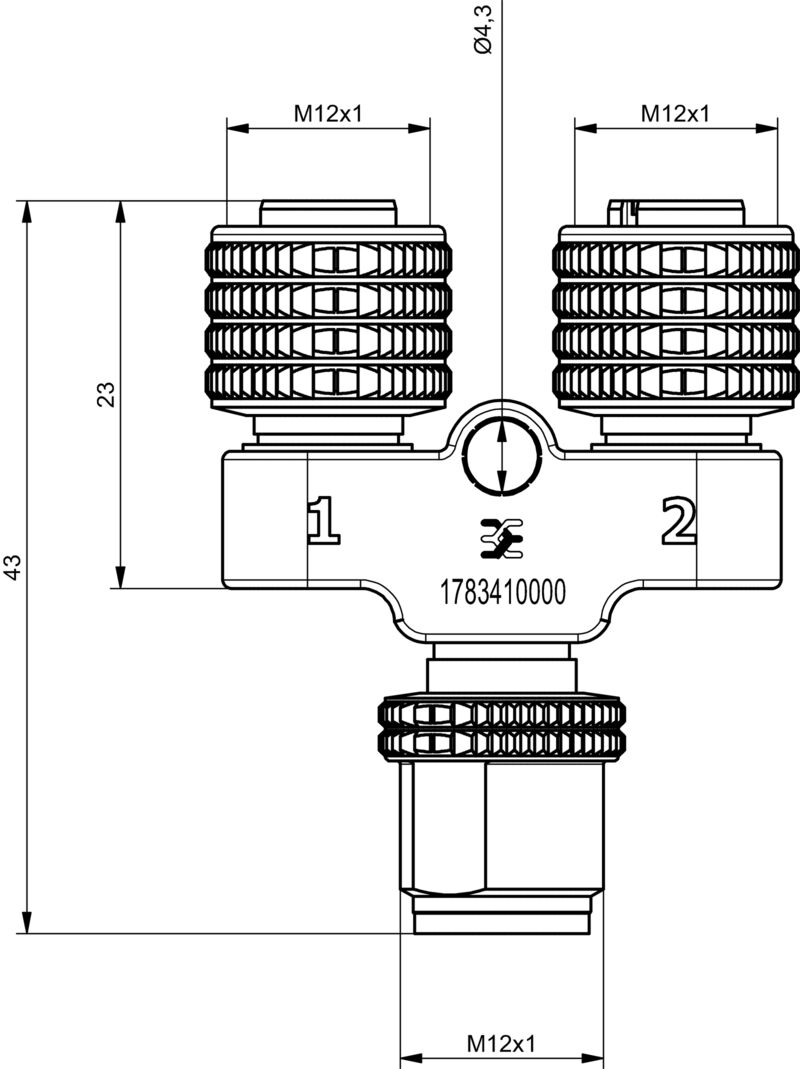

Dimensioned drawing
SAI-Y-5S B2-4 2M12

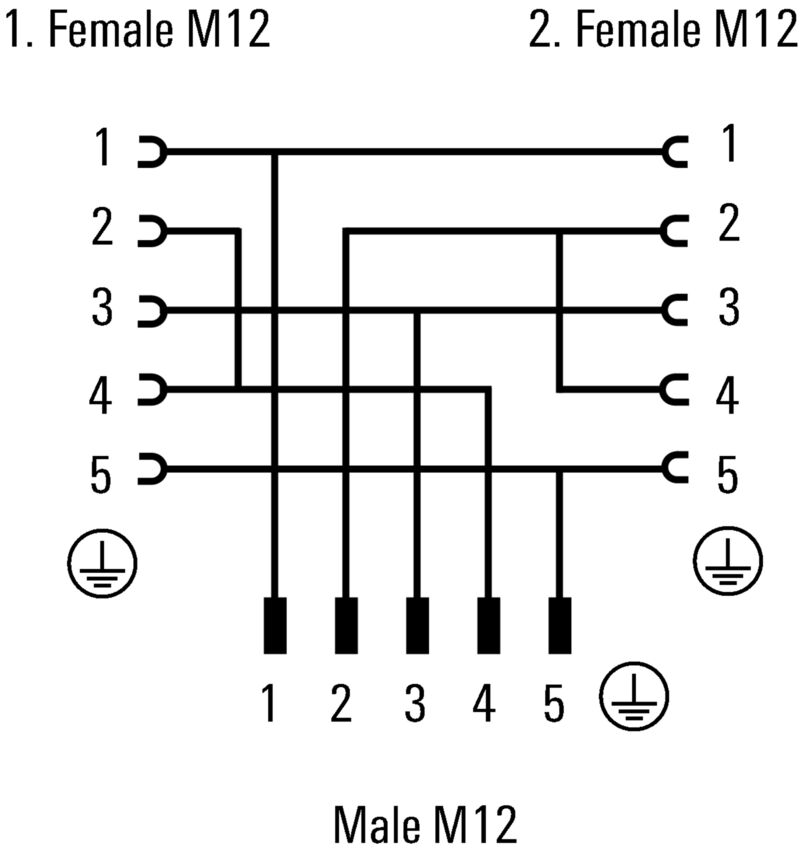

Wiring diagram

SAI-Y-5S B2-4 2M12

Conectores Y, M12, Amplificador de señal

Product ID 1783410000
Gegevensblad downloaden Wsparcie inżynieryjne
Verwante producten 13
Approvals Datos generales para pedido Dimensiones y pesos Conformidad medioambiental del producto Connection data Technical data customisable plug-in connectors Standards General data Clasificaciones

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conformidad

Datos generales para pedido

Version
Conectores Y, M12, Amplificador de señal
Order No.
1783410000
Type
SAI-Y-5S B2-4 2M12
GTIN (EAN)
4032248183340
Cantidad
1 Pieza

Dimensiones y pesos

Peso neto
21,5 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

Connection data

Group outlet - plug-in connector
M12 pin
Single outlet 1 - plug-in connector
M12 socket
Single outlet 2 - plug-in connector
M12 socket
Tightening torque
M12: 0.8 - 1.2 Nm

Technical data customisable plug-in connectors

Coding
A-coded
Contact surface
Au (Gold)
Housing main material
PUR
Nominal current
4 A
Nominal voltage
24 V
Number of poles
5
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-25…+90 °C
Threaded ring material
Tlakově litý zinek

Standards

Connector standard
IEC 61076-2-101

General data

Coding
A-coded
Conductor O.D.
-
Connection 1
M12/M12
Connection 2
Screw
Connection thread
M12
Contact material, pin
CuZn
Contact material, socket
CuSn
Contact surface
Au (Gold)
Housing main material
PUR
Nominal current
4 A
Nominal voltage
24 V
Number of poles
5
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-25…+90 °C
Tightening torque
0,8 Nm

Clasificaciones

ETIM 8.0
EC002925
ETIM 9.0
EC002925
ETIM 10.0
EC002925
ECLASS 14.0
27-44-01-06
ECLASS 15.0
27-44-01-06
